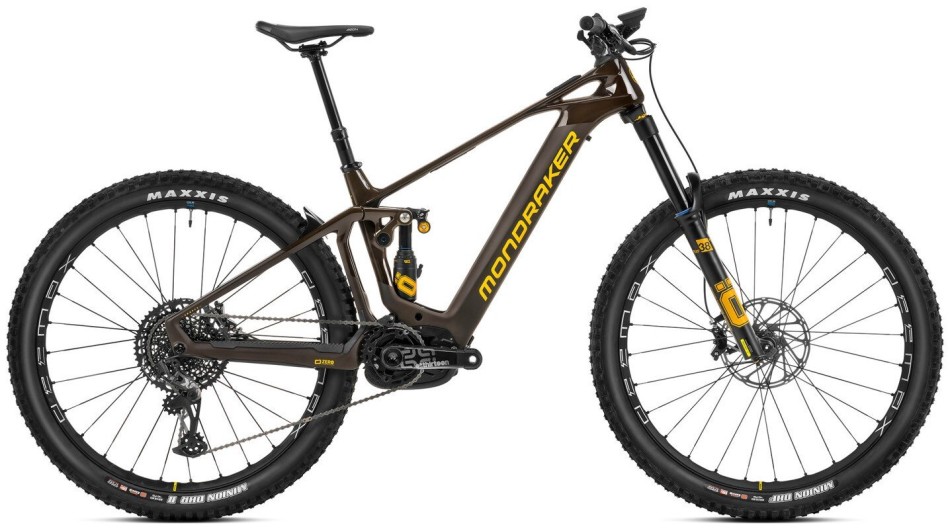

Mondraker Crafty Carbon XR LTD 2023 eMTB

Freeborn’s Take

With 150mm out back and 170mm up front the new Crafty Carbon XR LTD is ready to take on whatever you can throw at it. Descending, climbing and endless hours of singletrack, the Crafty Carbon XR LTD makes it all possible.

The Stealth Air Full carbon frame set and sealed MAX cartridge bearing pivots are designed to be able to shrug off the worst the trails have to offer. Mondraker’s Forward geometry has a roomy reach, short stem, and steep seat tube angle giving it amazing stability when descending and great manners when climbing.

Mondraker’s Zero Suspension system is supported by a Ohilns TTX Air rear air shock delivering 150mm of supple, progressive travel. Combined with a 170mm Ohilins RXF 38 M.2 you have the capability needed for almost anything.

Equipped with the new Bosch Smart motor system. A 750Wh battery concealed in the frame will give you the most amount of trail shredding possible. The Bosch Gen4 CX Race is the benchmark for ebike motors giving 85nm of ultra reliable performance. The new toptube mounted System Controller display and wireless Mini Remote really helps to tidy up the cockpit.

Braking is taken care of by Sram’s light and powerful Code RSC 4 piston brakes front and rear coupled with 200mm rotors.

A Sram Eagle drivetrain gives you a wide 10-52 tooth range which will allow to keep your cadence up on even the steepest of climbs keeping the motor delivering power when you need it most.

Mavic’s Bombproof 29” E-Deemax S wheel set comes with sealed cartridge bearings throughout giving consistent all weather performance and simple servicing. Clad with Maxxis Minion DHF and DHR Exo+ casing tyres, this bike is ready to get gnarly straight out the box.

Finishing off the specification is Mondraker’s Onoff Krypton Carbon 800mm wide bar, lock on grips and 30mm stem give all the control you will ever need. A Fizik Terra Aidon saddle will give you hours of in saddle comfort.

Specification

Frame	Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear Shock	Öhlins TTX Air 205×65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock Settings	C20 compression, R35 rebound
Fork	Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset	Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem	ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	ONOFF Diamond, 1lock-on, 135mm
Seatpost	ONOFF Pija dropper internal, diameter 31.6mm, S size: 387×125mm, M size: 425×150mm, L/XL size: 465×170mm
Saddle	FIZIK Terra Aidon X5 145mm
Front Brake	SRAM Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake	SRAM Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rims	Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes	Mavic straightpull duble butted, contactless lacing
Front Hub	Mavic, Boost 15×110mm, IS 6 bolts
Rear Hub	Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front Tyre	Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset	E.13 TRS Race carbon ebike, 165mm
Chainring	SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain	SRAM NX Eagle, 12s, Powerlock
Rear Derailleur	SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter	SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette	SRAM XG-1275, 10-52T, 12s
Battery	Bosch Powertube 750Wh
Derailleur Hanger	Sram UDH
Display	Bosch Kiox 300
Motor	Bosch Performance Line CX Race Cruise (25Km/h) GEN4 BS3
Battery	Bosch Powertube 750Wh (battery weight 4.4kg)
Charger	Bosch 4A (2.1h 50% – 6h 100%)
Display	Bosch System Controller / Bosch Kiox 300
Remote	Bosch Mini Remote
Quoted Weight	23.3kg
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seattube Length	380 mm	420 mm	450 mm	480 mm
B – Toptube Length	615 mm	626 mm	660 mm	680 mm
C – Bottom Bracket Drop	-18 mm	-18 mm	-18 mm	-18 mm
D – Bottom Bracket Height	349 mm	349 mm	349 mm	349 mm
E – Chainstay Length	455 mm	455 mm	455 mm	455 mm
F – Seat Tube Angle	72,5°	72,5°	72,5°	72.5º
G – Effective Seat Tube angle	75°	75°	75°	75°
H – Headtube Angle	64,5°	64.5°	64.5°	64.5°
I – Fork Offset	44 mm	44 mm	44 mm	44 mm
J – Wheelbase	1235 mm	1255 mm	1280 mm	1300 mm
K – Headtube Length	110 mm	110 mm	130 mm	130 mm
L – Reach	440 mm	460 mm	480 mm	500 mm
M – Stack	632 mm	632 mm	650 mm	650 mm
