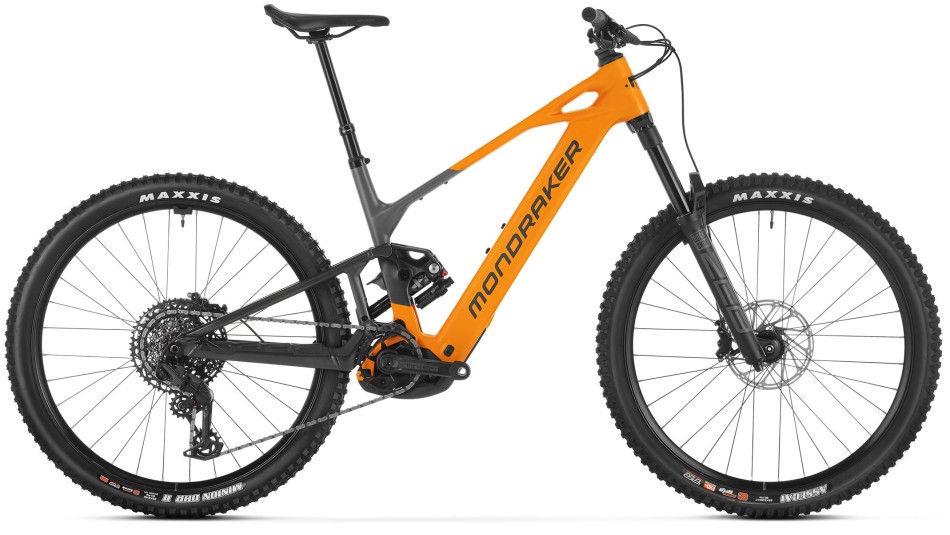

Mondraker Crafty Carbon S 2026 Atomic Orange eMTB
Crafty Carbon S is your ticket to ride Mondraker’s best range of e-Bikes ever
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Cube Kathmandu Hybrid Pro 750 2023 Trapeze Stone/Black eBike
Starting at: £3,143.99
-
Shimano Road Disc Brake Funnel Adapter and O-Ring
RRP: £2.99
Our price £2.49
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
It’s hard to pick a favourite, isn’t it! The thrill of a Crafty Carbon isn’t just about the power, travel or range. No one’s denying this lineup is a true statement of performance: Bosch CX Gen5 motor, a removable 800Wh battery, and now a seamlessly integrated Kiox 400 display flush-mounted in the top tube.
Specification
| Frame | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Rear Shock | Fox Float-X LV Performance, 185×55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer |
| Fork | RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload |
| Headset | Acros custom ZS56/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361×125mm, M size: 425×150mm, ML size: 469×170mm, L size: 521×190mm, XL size: 531×200 |
| Saddle | Ergon SM-10 |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | WTB Straight gauge spokes & black brass locking nipples |
| Front Hub | WTB Frequenzy Sport Boost 15×110mm, fully machined aluminum, IS 6 bolts |
| Rear Hub | WTB Frequenzy Sport Boost 12×148mm, fully machined aluminum, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2×120TPI, folding bead |
| Crankset | E.13 Helix Core E*Spec Plus, All sizes: 160mm |
| Chainring | Sram Eagle 34T T-Type, direct mount, steel, CL55 |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Rear Derailleur | Sram 70 Eagle, T-Type, 12s |
| Shifter | Sram Trigger 70, 12s, T-Type Actuation |
| Cassette | Sram XS-1270, 10-52T, 12s |
| Display | Kiox 400c |
| Remote | Bosch Mini Remote |
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM BDU384Y (Gen5 100Nm) |
| Battery | Bosch Powertube 800Wh |
| Quoted Weight | ? |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 160cm (5’3”) | 165cm (5’5”) |
| M | 165cm (5’5”) | 177cm (5’9”) |
| M/L | 177cm (5’9”) | 185cm (6’1”) |
| L | 183cm (5’9”) | 193cm (6’4”) |
| XL | 190cm (6’3”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Standard Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 581 mm | 596 mm | 618 mm | 640 mm | 662 mm |
| C – Botom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm | -25 mm |
| D – Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| E – Chainstay Length | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| F – Seat Tube Angle Actual | 73° | 73° | 73° | 73° | 73° |
| G – Seat Tube Angle Effective | 77.95° | 77.95° | 77.95° | 77.95° | 77.95° |
| H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1240 mm | 1255 mm | 1280 mm | 1314 mm | 1338 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 445 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M – Stack | 638 mm | 638 mm | 647 mm | 656 mm | 665 mm |
Low Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 582 mm | 597 mm | 619 mm | 641 mm | 663 mm |
| C – Botom Bracket Drop | -30 mm | -30 mm | -30 mm | -30 mm | -30 mm |
| D – Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| E – Chainstay Length | 456 mm | 456 mm | 456 mm | 466 mm | 466 mm |
| F – Seat Tube Angle Actual | 72.65° | 72.65° | 72.65° | 72.65° | 72.65° |
| G – Seat Tube Angle Effective | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| H – Head Tube Angle | 64.15° | 64.15° | 64.15° | 64.15° | 64.15° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1241 mm | 1256 mm | 1281 mm | 1315 mm | 1339 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 441 mm | 456 mm | 476 mm | 496 mm | 516 mm |
| M – Stack | 641 mm | 641 mm | 650 mm | 659 mm | 668 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
