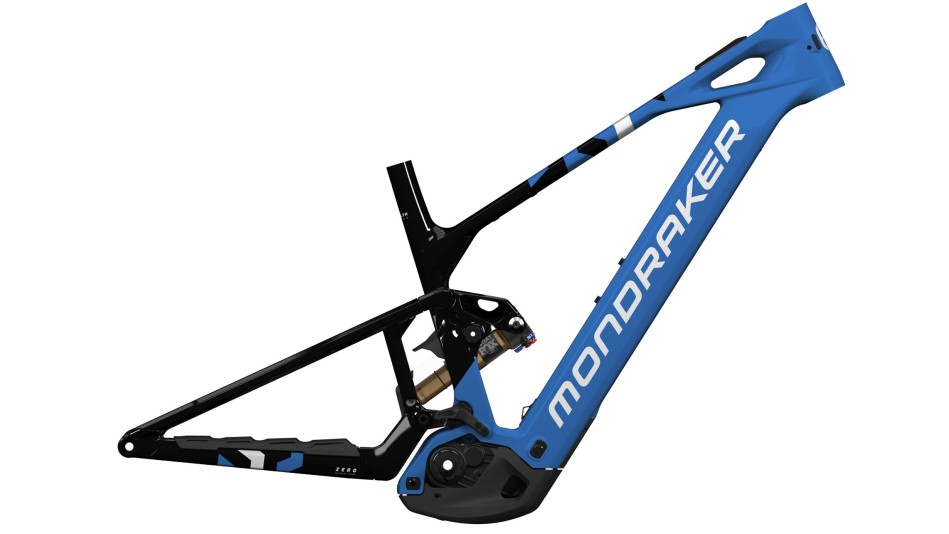

Mondraker Crafty Carbon RR SL 2025 Powered Frameset
The new Crafty Carbon is the most advanced full power e-Bike we’ve ever made.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Mondraker Superfoxy 2024 Enduro Bike
Starting at: £2,699.99
-
Mondraker Foxy R 2024 Trail Bike
Starting at: £2,998.99
-
Shimano SL-M6100 Deore 12 Speed Band Clamp Shifter
£36.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The new Crafty Carbon is the most advanced full power e-Bike we’ve ever made. Embracing the latest technologies in frame design, drivetrains, brakes, suspension and of course motors, what else would we chose but the new Bosch CX Performance and Bosch’s new integrated, removable and interchangeable 800Wh and 600Wh batteries (600Wh supplied with Frameset).
What’s more, Crafty Carbon offers a greater range of sizes than ever before, including a new intermediate ML size, complemented by two different swingarm lengths optimized for frame size. It’s a novel approach, unique to this range in Mondraker, designed to improve the experience of you, the rider, regardless of body type.
This new range of sizes with different swingarm lengths, together with the flip-chip on the lower shock mount, make the new Crafty Carbon our most adaptable and adjustable e-Bike ever.
The evolution of the kinematics of the Updated Zero Suspension System coupled with the gains made by Bosch’s new CX motor with its natural feel, lack of noise and reduced friction above 25km/h mean that the performance of the new Crafty Carbon has been taken to a whole different level. Crafty Carbon range, designed to evolve, is here in its most advanced level of evolution to date.
Specification
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Rear Shock | Fox Float Factory Kashima EVOL 185×55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer |
| Headset | Acros custom ZS56/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 600Wh |
| Display/Remote | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | ? |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 160cm (5’3”) | 165cm (5’5”) |
| M | 165cm (5’5”) | 177cm (5’9”) |
| M/L | 177cm (5’9”) | 185cm (6’1”) |
| L | 183cm (5’9”) | 193cm (6’4”) |
| XL | 190cm (6’3”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Standard Geo – 160 Fork
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 581 mm | 596 mm | 618 mm | 640 mm | 662 mm |
| C – Botom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm | -25 mm |
| D – Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| E – Chainstay Length | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| F – Seat Tube Angle Actual | 73° | 73° | 73° | 73° | 73° |
| G – Seat Tube Angle Effective | 77.95° | 77.95° | 77.95° | 77.95° | 77.95° |
| H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1240 mm | 1255 mm | 1280 mm | 1314 mm | 1338 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 445 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M – Stack | 638 mm | 638 mm | 647 mm | 656 mm | 665 mm |
Low Geo – 160 Fork
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 582 mm | 597 mm | 619 mm | 641 mm | 663 mm |
| C – Botom Bracket Drop | -30 mm | -30 mm | -30 mm | -30 mm | -30 mm |
| D – Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| E – Chainstay Length | 456 mm | 456 mm | 456 mm | 466 mm | 466 mm |
| F – Seat Tube Angle Actual | 72.65° | 72.65° | 72.65° | 72.65° | 72.65° |
| G – Seat Tube Angle Effective | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| H – Head Tube Angle | 64.15° | 64.15° | 64.15° | 64.15° | 64.15° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1241 mm | 1256 mm | 1281 mm | 1315 mm | 1339 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 441 mm | 456 mm | 476 mm | 496 mm | 516 mm |
| M – Stack | 641 mm | 641 mm | 650 mm | 659 mm | 668 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
