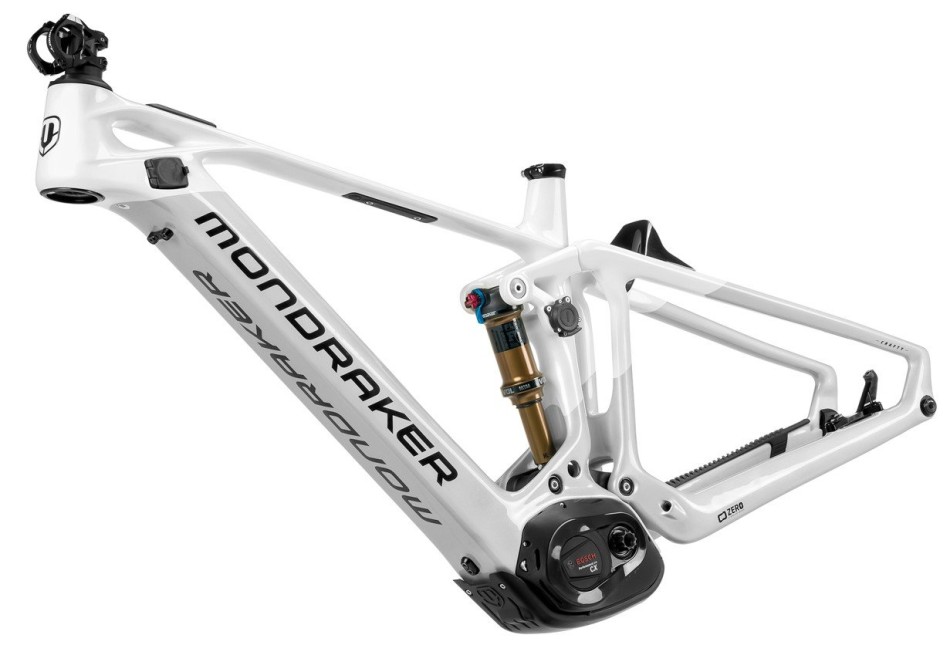

Mondraker Crafty Carbon RR SL 2023 Powered Frameset
Since its release the Crafty Carbon has been one of the highest regarded, performance ebikes available and this latest incarnation is no different.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order
Since its release the Crafty Carbon has been one of the highest regarded, performance ebikes available and this latest incarnation is no different. It stands out for its lightness, agility and confidence inspiring capabilities. Featuring advanced technologies such as ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY, STEALTH AIR CARBON and MIND the Crafty Carbon is undoubtedly a benchmark in terms of performance.
Designed to accecpt a 160mm or 170mm 29” fork.
All this, combined with the new Bosch Smart System motor makes the Crafty Carbon the tool for the job to enjoy every ride, in every environment.
Specification
| Frame | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Rear Shock | Fox Float DPS Factory Kashima Evol LV, 205×65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | Medium compression, Medium rebound, 0.4 volume spacer |
| Derailleur Hanger | Sram UDH |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch Powertube 750Wh (battery weight 4.4kg) |
| Charger | Bosch 4A (2.1h 50% – 6h 100%) |
| Display | Bosch System Controller / Bosch Kiox 300 – Includes out front mount |
| Headset | Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing |
| Remote | Bosch Mini Remote |
| Speed Sensor | Bosch Smart System Slim 815mm |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B – Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C – Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D – Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E – Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F – Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G – Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H – Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K – Headtube length | 110mm | 110mm | 130mm | 130mm |
| L – Reach | 450mm | 470mm | 490mm | 510mm |
| M – Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
