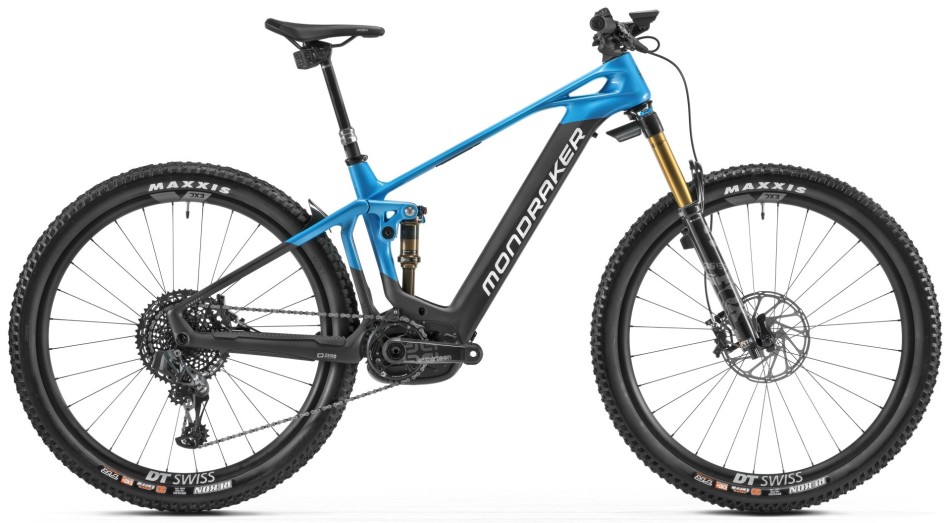

Mondraker Crafty Carbon RR SL 2022 eMTB

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 30 days of placing an order.

Since its release the Crafty Carbon has been one of the highest regarded, performance ebikes available and this latest incarnation is no different. It stands out for its lightness, agility and confidence inspiring capabilities. Featuring advanced technologies such as ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY, STEALTH AIR CARBON and MIND the Crafty Carbon is undoubtedly a benchmark in terms of performance.

Suspension is taken care of by 160mm fork and 150mm shock in three models, only excluding the more radical XR version, which has a 170mm fork.

All this, combined with the new Bosch Smart System motor makes the Crafty Carbon the tool for the job to enjoy every ride, in every environment.

Specification

Frame	Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock	Fox Float DPS Factory Kashima Evol LV, 205×65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock settings	Medium compression, Medium rebound, 0.4 volume spacer
Fork	Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15×110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset	Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem	ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	ONOFF Diamond, 1lock-on, 135mm
Seatpost	RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390×125mm, M size: 440×150mm, L/XL size: 440×170mm
Saddle	FIZIK ANTARES LARGE R1
Front brake	SRAM G2 Ultimate, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake	SRAM G2 Ultimate, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Wheels	DT Swiss HXC1501 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
Front Tyre	Maxxis Rekon 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear Tyre	Maxxis Rekon 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset	E.13 TRS Race carbon ebike, 165mm
Chainring	SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Chain	SRAM GX Eagle, 12s, Powerlock
Rear derrailleur	SRAM XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1×12s, X-actuation 1:1
Shifter	SRAM Eagle AXS, 12s
Cassette	SRAM XG-1295, 10-50T, 12s
Derailleur hanger	Sram UDH
Battery	Bosch Powertube 750Wh (battery weight 4.4kg)
Charger	Bosch 4A (2.1h 50% – 6h 100%)
Display	Bosch Kiox 300
Remote	Bosch LED Display
Quoted Weight	21.1kg
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seat Tube Length	380mm	420mm	450mm	490mm
B – Toptube Length	605mm	625mm	650mm	670mm
C – Bottom Bracket Drop	-25mm	-25mm	-25mm	-25mm
D – Bottom Bracket Height	350mm	350mm	350mm	350mm
E – Chainstay Length	455mm	455mm	455mm	455mm
F – Seat Tube Angle	73.5°	73.5°	73.5°	73.5°
G – Effective Seat Tube angle	76°	76°	76°	76°
H – Headtube Angle	65.5°	65.5°	65.5°	65.5°
I – Fork Offset	44mm	44mm	44mm	44mm
J – Wheelbase	1225mm	1245mm	1265mm	1285mm
K – Headtube length	110mm	110mm	130mm	130mm
L – Reach	450mm	470mm	490mm	510mm
M – Stack	622mm	622mm	640mm	640mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
