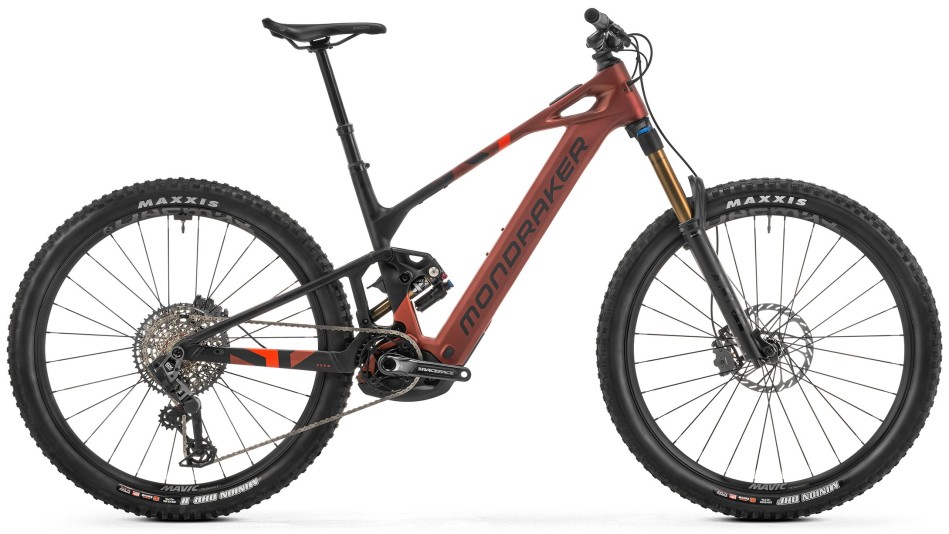

Mondraker Crafty Carbon RR 2025 eMTB
Crafty Carbon RR takes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Burgtec 22mm x M6 Titanium Offset Shock Hardware Kit
RRP: £19.99
Our price £4.99
-
Bosch Smart System Display Interface Rear Plug
£24.99 -
Thule Rail 4 Hydration Hip Pack
RRP: £89.99
Our price £80.99
Details
Medium in stock now! Delivery in 2-3 working days. Other sizes shown available with Mondaraker Spain. Expect delivery within 8-9 working days of placing an order.
Crafty Carbon RR takes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating.
It also comes with the much talked about SRAM Maven brakes and Bosch’s new 800Wh battery. ONOFF components have you covered for bars, stem and the Pija dropper post in different lengths dependant on frame size.
A significant update to the new Crafty Carbon range, is the addition of the highly anticipated, totally revamped 2025 Bosch Performance CX. The market leader among full power motors, the CX has been an intrinsic part of every Crafty Carbon since its launch in 2020. Bosch’s new motor incorporates an updated design architecture with two mounting points instead of three, a 100g reduction in weight and a reduction in its overall size.
This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.
The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, mean the Crafty Carbon offers improved performance in all conditions and on all terrain types. The new motor also boasts reduced drag when pedalling above 25km/h.
One additional function of the new motor is the ‘Hill Hold’ mode which, when activated by holding the minus button, keeps the bike from rolling backwards on slopes until you start pedalling. The same option also serves to stop the bike from rolling backwards while being pushed uphill.
Specification
| Frame | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Rear Shock | Fox Float X Factory Kashima EVOL, 185×55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30×8mm bottom bushings |
| Shock Settings | CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer |
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15×110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Headset | Acros custom ZS56/ZS56, 1-1/8”, 1.5” head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Forest, CNC lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | Ergon SM-10 |
| Front Brake | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tyre | Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Crankset | Race Face Aeffect-R ebike, 160mm |
| Chainring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle AXS, T-Type, 12s |
| Shifter | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 800Wh |
| Display/Remote | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | 24.4kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 160cm (5’3”) | 165cm (5’5”) |
| M | 165cm (5’5”) | 177cm (5’9”) |
| M/L | 177cm (5’9”) | 185cm (6’1”) |
| L | 183cm (5’9”) | 193cm (6’4”) |
| XL | 190cm (6’3”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Standard Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 581 mm | 596 mm | 618 mm | 640 mm | 662 mm |
| C – Botom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm | -25 mm |
| D – Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| E – Chainstay Length | 455 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| F – Seat Tube Angle Actual | 73° | 73° | 73° | 73° | 73° |
| G – Seat Tube Angle Effective | 77.95° | 77.95° | 77.95° | 77.95° | 77.95° |
| H – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1240 mm | 1255 mm | 1280 mm | 1314 mm | 1338 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 445 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M – Stack | 638 mm | 638 mm | 647 mm | 656 mm | 665 mm |
Low Geo
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B – Top Tube Length | 582 mm | 597 mm | 619 mm | 641 mm | 663 mm |
| C – Botom Bracket Drop | -30 mm | -30 mm | -30 mm | -30 mm | -30 mm |
| D – Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| E – Chainstay Length | 456 mm | 456 mm | 456 mm | 466 mm | 466 mm |
| F – Seat Tube Angle Actual | 72.65° | 72.65° | 72.65° | 72.65° | 72.65° |
| G – Seat Tube Angle Effective | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| H – Head Tube Angle | 64.15° | 64.15° | 64.15° | 64.15° | 64.15° |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1241 mm | 1256 mm | 1281 mm | 1315 mm | 1339 mm |
| K – Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L – Reach | 441 mm | 456 mm | 476 mm | 496 mm | 516 mm |
| M – Stack | 641 mm | 641 mm | 650 mm | 659 mm | 668 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 4 |
| Intended Use | Sport and competition riding with very challenging technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm |
| Recommended riding skills | Technical skills, practice and bike control required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
