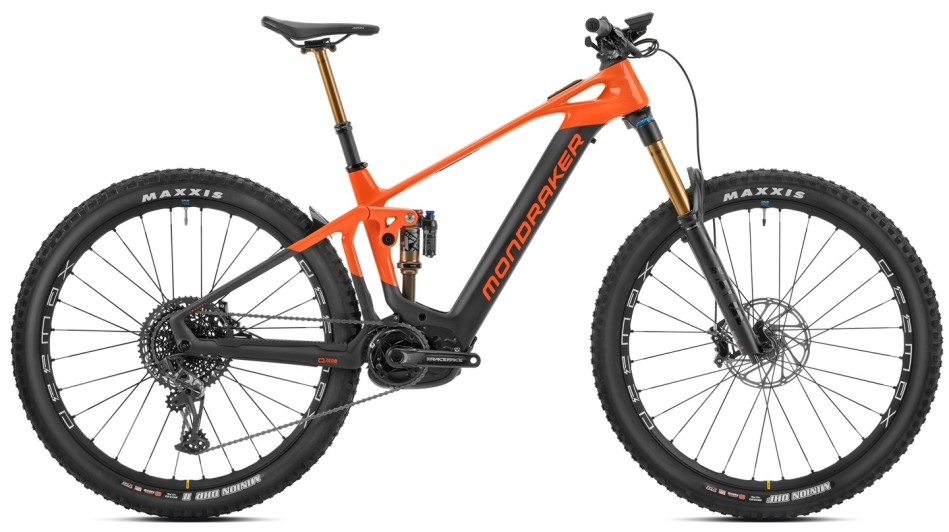

Mondraker Crafty Carbon RR 2023 eMTB

With 150mm out back and 160mm up front the new Crafty Carbon RR is ready to take on whatever you can throw at it.

Availability: In stock

Product Name Price Qty
Mondraker Crafty Carbon RR 2023 Small eMTB

RRP: £8,999.00

Our price £6,749.99

Mondraker Crafty Carbon RR 2023 Medium eMTB

RRP: £8,999.00

Our price £6,749.99

Mondraker Crafty Carbon RR 2023 Large eMTB

RRP: £8,999.00

Our price £6,749.99

Mondraker Crafty Carbon RR 2023 X Large eMTB

RRP: £8,999.00

Our price £6,749.99

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Mondraker

Recently Viewed

Details

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

The Crafty Carbon RR is one of our bestsellers when it comes to ebikes. Offering a truly balanced setup it feels agile, reactive and efficient whether you’re riding uphill or down.

The frame’s ZERO SUSPENSION SYSTEM is optimized for you to enjoy the trail whatever surprises it brings. You’ve got Bosch’s Smart System motor with its all-new wireless Mini Remote control and integrated System Controller to keep your cockpit clear.

Then you’ve got a 750Wh battery to keep the trails flowing by without ever having to worry about range anxiety, and it comes fitted with our MIND telemetry system to let you set up your suspension like a pro mechanic without actually being one. It’s quite a package.

Freeborn’s Take

With 150mm out back and 160mm up front the new Crafty Carbon RR is ready to take on whatever you can throw at it. Descending, climbing and endless hours of singletrack, the Crafty Carbon RR makes it all possible.

The Stealth Air Full carbon frame set and sealed MAX cartridge bearing pivots are designed to be able to shrug off the worst the trails have to offer. Mondraker’s Forward geometry has a roomy reach, short stem, and steep seat tube angle giving it amazing stability when descending and great manners when climbing.

Mondraker’s Zero Suspension system is supported by a Fox Float X Factory rear air shock delivering 150mm of supple, progressive travel. Combined with a 160mm Fox 38 Factory, you have the capability needed for almost anything.

Equipped with the new Bosch Smart motor system. A 750Wh battery concealed in the frame will give you the most amount of trail shredding possible. The Bosch Gen4 CX is the benchmark for ebike motors giving 85nm of ultra reliable performance. The new toptube mounted System Controller display and wireless Mini Remote really helps to tidy up the cockpit.

Braking is taken care of by Sram’s ever powerful Code RSC 4 piston brakes front and rear coupled with 200mm rotors.

A Sram Eagle drivetrain gives you a wide 10-52 tooth range which will allow to keep your cadence up on even the steepest of climbs keeping the motor delivering power when you need it most.

Mavic’s Bombproof 29” E-Deemax S30 wheelset comes with sealed cartridge bearings throughout giving consistent all weather performance and simple servicing. Clad with Maxxis Minion DHF and DHR Exo+ casing tyres, this bike is ready to get gnarly straight out the box.

Finishing off the specification is Mondraker’s Onoff Krypton Carbon 800mm wide bar, lock on grips and 30mm stem give all the control you will ever need. A Fizik Terra Aidon saddle will give you hours of in saddle comfort.

Specification

Frame Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock Fox Float-X LV Factory Kashima, 205×65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock settings Medium compression, medium rebound, air volume spacer 0.2
Fork Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15×110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips ONOFF Diamond, 1lock-on, 135mm
Seatpost Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5×125mm, M/L size: 418.3×150mm, XL size: 475.1×175mm
Saddle FIZIK Terra Aidon X5 145mm
Front Brake Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked
metal sintered pads
Rear Brake Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked
metal sintered pads
Wheelset Mavic E-Deemax S30 29
Rims Mavic, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes Mavic straightpull duble butted, contactless lacing
Front Hub Mavic, Boost 15×110mm, IS 6 bolts
Rear Hub Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front Tyre Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear Tyre Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset Race Face Aeffect ebike, 165mm
Chainring SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain SRAM NX Eagle, 12s, Powerlock
Rear Derailleur SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette SRAM XG-1275, 10-52T, 12s
Derailleur Hanger Sram UDH
Display Bosch Kiox 300
Motor Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery Bosch Powertube 750Wh (battery weight 4.4kg)
Charger Bosch 4A (2.1h 50% – 6h 100%)
Display Bosch System Controller / Bosch Kiox 300
Remote Bosch Mini Remote
Quoted Weight 23.5kg
Max System Weight 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
S 165cm (5’5”) 170cm (5’7”)
M 170cm (5’7”) 180cm (5’11”)
L 175cm (5’9”) 187cm (6’1”)
XL 185cm (6’1”) 195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size S M L XL
A – Seat Tube Length 380mm 420mm 450mm 490mm
B – Toptube Length 605mm 625mm 650mm 670mm
C – Bottom Bracket Drop -25mm -25mm -25mm -25mm
D – Bottom Bracket Height 350mm 350mm 350mm 350mm
E – Chainstay Length 455mm 455mm 455mm 455mm
F – Seat Tube Angle 73.5° 73.5° 73.5° 73.5°
G – Effective Seat Tube angle 76° 76° 76° 76°
H – Headtube Angle 65.5° 65.5° 65.5° 65.5°
I – Fork Offset 44mm 44mm 44mm 44mm
J – Wheelbase 1225mm 1245mm 1265mm 1285mm
K – Headtube length 110mm 110mm 130mm 130mm
L – Reach 450mm 470mm 490mm 510mm
M – Stack 622mm 622mm 640mm 640mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Additional Information
Manufacturer Mondraker
RRP No
