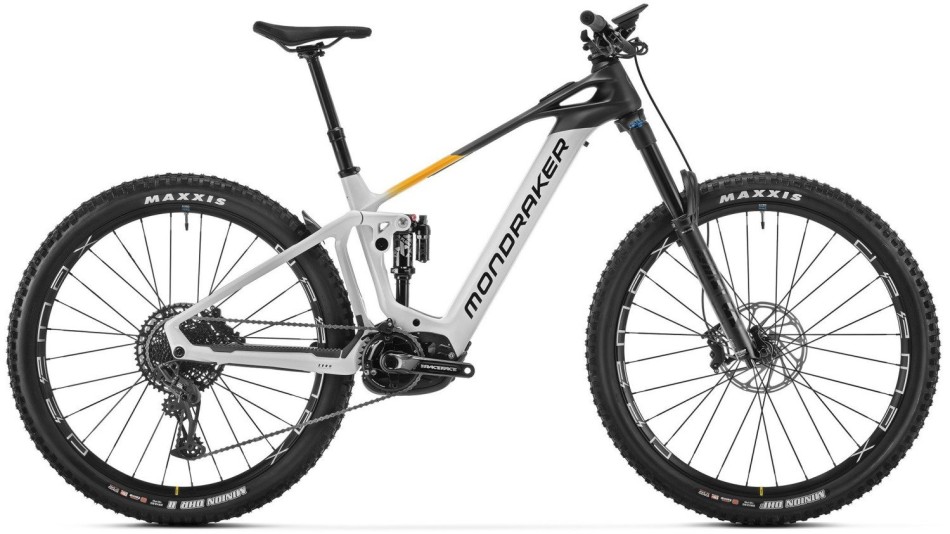

Mondraker Crafty Carbon R 2024 eMTB

Freeborn’s Take

With 150mm out back and 160mm up front the new Crafty Carbon R is ready to take on whatever you can throw at it. Descending, climbing and endless hours of singletrack, the Crafty Carbon R makes it all possible.

The Stealth Air Full carbon frame set and sealed MAX cartridge bearing pivots are designed to be able to shrug off the worst the trails have to offer. Mondraker’s Forward geometry has a roomy reach, short stem, and steep seat tube angle giving it amazing stability when descending and great manners when climbing.

Mondraker’s Zero Suspension system is supported by a Fox Float X Performance rear air shock delivering 150mm of supple, progressive travel. Combined with a 160mm Fox 38 Performance, you have the capability needed for almost anything.

Equipped with the new Bosch Smart motor system. A 750Wh battery concealed in the frame will give you the most amount of trail shredding possible. The Bosch Gen4 CX is the benchmark for ebike motors giving 85nm of ultra reliable performance. The new toptube mounted System Controller display and wireless Mini Remote really helps to tidy up the cockpit.

Braking is taken care of by Sram’snew, ultra reliable DB8 4 piston brakes front and rear coupled with 200mm rotors.

A Sram Eagle drivetrain gives you a wide 11-50 tooth range which will allow to keep your cadence up on even the steepest of climbs keeping the motor delivering power when you need it most.

Mavic’s Bombproof 29” E-Deemax wheel set comes with sealed cartridge bearings throughout giving consistent all weather performance and simple servicing. Clad with Maxxis Minion DHF and DHR Exo+ casing tyres, this bike is ready to get gnarly straight out the box.

Finishing off the specification is Mondraker’s Onoff Krypton 800mm wide bar, lock on grips and 30mm stem give all the control you will ever need. A Fizik Terra Aidon saddle will give you hours of in saddle comfort.

Specification

Frame	Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear Shock	Fox Float-X LV Performance, 205×65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock Settings	Medium compression, medium rebound, air volume spacer 0.2
Fork	Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15×110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset	Acros custom for 1-1/2” head tube, angular contact bearings 40×52×7, Internal cable routing
Stem	ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	ONOFF Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips	Onoff Desert, 1lock-on, 135mm
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm
Saddle	FIZIK Terra Aidon X5 145mm
Front Brake	Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake	Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Wheelset	Mavic E-Deemax 30 29
Rims	Mavic, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes	Mavic J-bend duble butted, contactless lacing
Front Hub	Mavic, Boost 15×110mm, IS 6 bolts
Rear Hub	Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts
Front Tyre	Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset	Race Face Aeffect ebike, 165mm
Chainring	SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Chain	SRAM NX Eagle, 12s, Powerlock
Rear Derailleur	SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1
Shifter	SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette	Sram PG-1230, 11-50T, 12s
Derailleur Hanger	Sram UDH
Motor	Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery	Bosch Powertube 750Wh(battery weight 4.4kg)
Charger	Bosch 4A (2.1h 50% – 6h 100%)
Display	Bosch System Controller / Bosch Kiox 500
Remote	Bosch Mini Remote
Quoted Weight	23.9kg
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	165cm (5’5”)	170cm (5’7”)
M	170cm (5’7”)	180cm (5’11”)
L	175cm (5’9”)	187cm (6’1”)
XL	185cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Seat Tube Length	380mm	420mm	450mm	490mm
B – Toptube Length	605mm	625mm	650mm	670mm
C – Bottom Bracket Drop	-25mm	-25mm	-25mm	-25mm
D – Bottom Bracket Height	350mm	350mm	350mm	350mm
E – Chainstay Length	455mm	455mm	455mm	455mm
F – Seat Tube Angle	73.5°	73.5°	73.5°	73.5°
G – Effective Seat Tube angle	76°	76°	76°	76°
H – Headtube Angle	65.5°	65.5°	65.5°	65.5°
I – Fork Offset	44mm	44mm	44mm	44mm
J – Wheelbase	1225mm	1245mm	1265mm	1285mm
K – Headtube length	110mm	110mm	130mm	130mm
L – Reach	450mm	470mm	490mm	510mm
M – Stack	622mm	622mm	640mm	640mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
