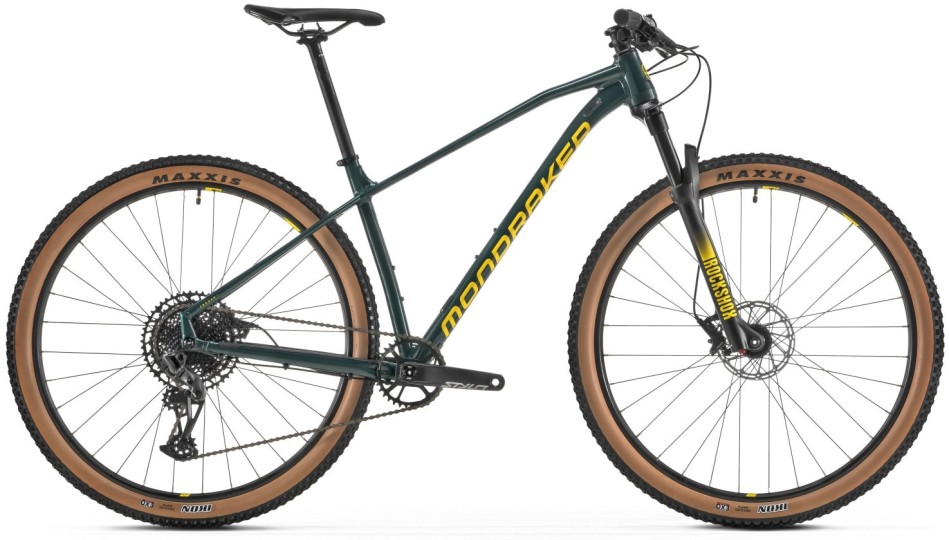

Mondraker Chrono R 2022 Green/Yellow Cross Country Bike
The Chrono R, above all, is a dynamic bike.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Shimano FD-R4700 Tiagra Double Braze On Front Derailleur
£36.99 -
Hope Tech V4 Brake Pads Sintered
£20.00 -
Madison Flux Men's Waterproof Gilet Black
Starting at: £59.99
Details
The Chrono R, above all, is a dynamic bike
Its frame is made of butted 6061 Xtralite Alloy and has our XC FORWARD GEOMETRY which will put you in an optimal position to pedal effectively while at the same time offering you stability and confidence when facing descents.
Specification
| Frame | Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12×148mm rear axle |
| Fork | Rockshox SID SL Base RL 29, 100mm, Charger, Debonair, tapered steerer tube, Boost 15×110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Fork Remote | RockShox OneLoc |
| Stem | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Diamond, 1lock-on, 135mm |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
| Saddle | Mondraker XC Series, steel rail |
| Front Brake | SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Ikon 29×2.20, 60TPI, wire bead |
| Rear Tyre | Maxxis Ikon 29×2.20, 60TPI, wire bead |
| Crankset | Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Quoted Weight | 12.5kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 395mm | 430mm | 470mm | 520mm |
| B – Top Tube Length | 590mm | 610mm | 630mm | 650mm |
| C – Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D – Bottom Bracket Height | 305mm | 305mm | 305mm | 305mm |
| E – Chain Stay Length | 435mm | 430mm | 435mm | 435mm |
| F – Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° |
| G – Effective Seat Tube Angle | 73.5° | 73.5 | ° 73.5° | 73.5° |
| H – Head Tube Angle | 70° | 70° | 70° | 70° |
| I – Fork Offset | 44/46mm | 44/46mm | 44/46mm | 44/46mm |
| J – Wheelbase | 1087mm | 1107mm | 1127mm | 1148mm |
| K – Head Tube Length | 100mm | 100mm | 110mm | 125mm |
| L – Reach | 406mm | 426mm | 444mm | 460mm |
| M – Stack | 618mm | 618mm | 628mm | 642mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
