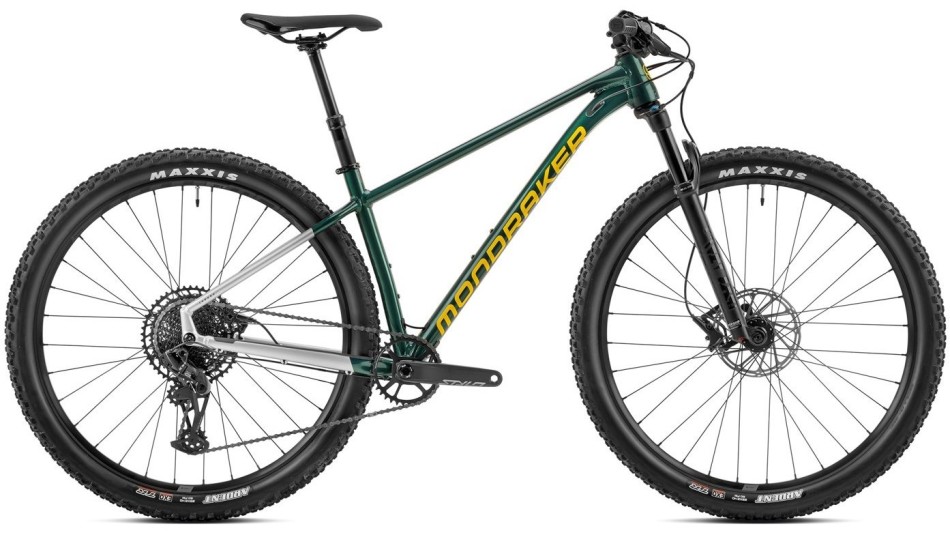

Mondraker Chrono DC R 2024 Down Country Bike
If you’re a rider who enjoys maximum trail feedback, you love hardtails and you ride your descents flat-out, this season you’re in luck.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Shimano 105 12 Speed Cassette
Starting at: £69.99
-
Mondraker Prime G4 2025 Bronze/Grey eBike
Starting at: £2,598.99
-
Mondraker F-Play 24 2025 Kids eBike
Starting at: £2,698.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
If you’re a rider who enjoys maximum trail feedback, you love hardtails and you ride your descents flat-out, this season you’re in luck.
In 2023 Mondraker is launching a very special hardtail: the CHRONO DC. To this end, we added a front fork with 120mm of travel and 2.40” wide tyres front and back, so you can climb as fast as you want and also have loads of fun on the downs.
Just to be on the safe side when things get spicy we’ve mounted a dropper post to give you that freedom of movement when it counts.
Specification
| Frame | Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12×148mm rear axle |
| Fork | Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15×110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload |
| Fork Remote | Fox single pull |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45º |
| Stem | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405×95-125mm, L/XL size 458×120-150mm |
| Saddle | Mondraker XC Series, steel rail |
| Front Brake | Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Ardent 29×2.40, 60TPI, folding bead |
| Rear Tyre | Maxxis Ardent 29×2.40, 60TPI, folding bead |
| Crankset | Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 395mm | 430mm | 470mm | 520mm |
| B – Toptube Length | 590mm | 610mm | 630mm | 650mm |
| C – Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D – Bottom Bracket Height | 305mm | 305mm | 305mm | 305mm |
| E – Chainstay Length | 430mm | 430mm | 430mm | 430mm |
| F – Seat Tube Angle | 72° | 72° | 72° | 72° |
| G – Effective Seattube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| H – Headtube Angle | 70° | 70° | 70° | 70° |
| I – Fork Offset | 44mm/51mm | 44mm/51mm | 44mm/51mm | 44mm/51mm |
| J – Wheelbase | 1086mm | 1106mm | 1127mm | 1148mm |
| K – Headtube Length | 85mm | 90mm | 100mm | 115mm |
| L – Reach | 411mm | 430mm | 447mm | 463mm |
| M – Stack | 605mm | 610mm | 619mm | 632mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
