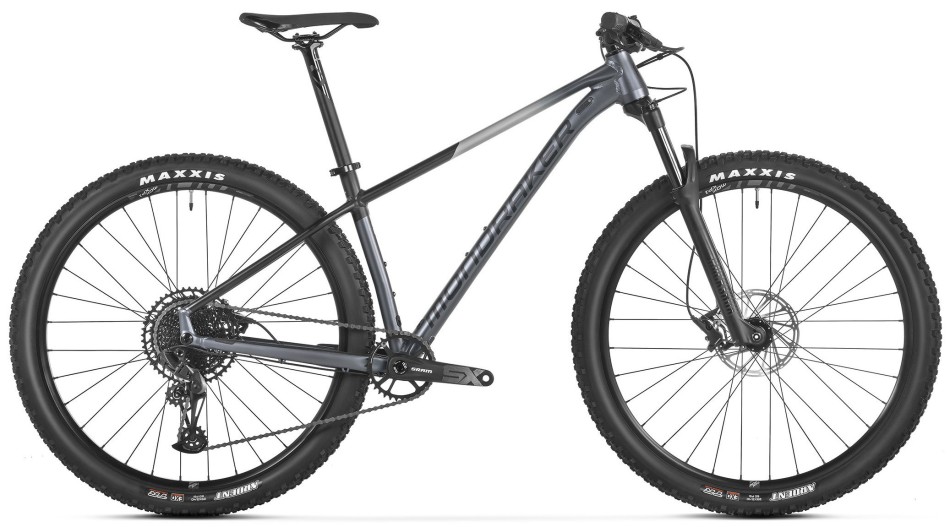

Mondraker Chrono DC 2025 Grey Down Country Bike
If you’re a rider who enjoys maximum trail feedback, you love hardtails and you ride your descents flat-out, this season you’re in luck.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Truvativ Descendant 35mm Stem Black
Starting at: £59.49
-
Madison Roam Men's Jacket Olive
Starting at: £62.99
-
Cane Creek Helm MkII Coil 29" 51mm Offset
RRP: £1,099.99
Our price £1,044.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
If you’re a rider who enjoys maximum trail feedback, you love hardtails and you ride your descents flat-out, this season you’re in luck.
Specification
| Frame | Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12×148mm rear axle, dedicated 1X drivetrain design |
| Fork | RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9×100mm axle, 30mm steel stanchions, 51mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload |
| Fork Remote | RockShox PopLoc |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45°x45°, bottom 51.9×40×8×45°x45º |
| Stem | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405×95-125mm, L/XL size 458×120-150mm |
| Saddle | Mondraker XC Series, steel rail |
| Front Brake | Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12×148mm, sealed bearings, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
| Rear Tyre | Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
| Crankset | Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52 |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| B – Toptube Length | 590 mm | 610 mm | 630 mm | 650 mm |
| C – Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| D – Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| E – Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| F – Seat Tube Angle | 72.5º | 72.5º | 72.5º | 72.5º |
| G – Effective Seattube Angle | 74.5º | 74.5º | 74.5º | 74.5º |
| H – Headtube Angle | 68.5º | 68.5º | 68.5º | 68.5º |
| I – Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J – Wheelbase | 1118 mm | 1133 mm | 1160 mm | 1175 mm |
| K – Headtube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| L – Reach | 425 mm | 440 mm | 460 mm | 475 mm |
| M – Stack | 624 mm | 624 mm | 642 mm | 642 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 3 |
| Intended Use | Sport and competition riding with moderate technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm |
| Recommended riding skills | Technical skills and practice required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
