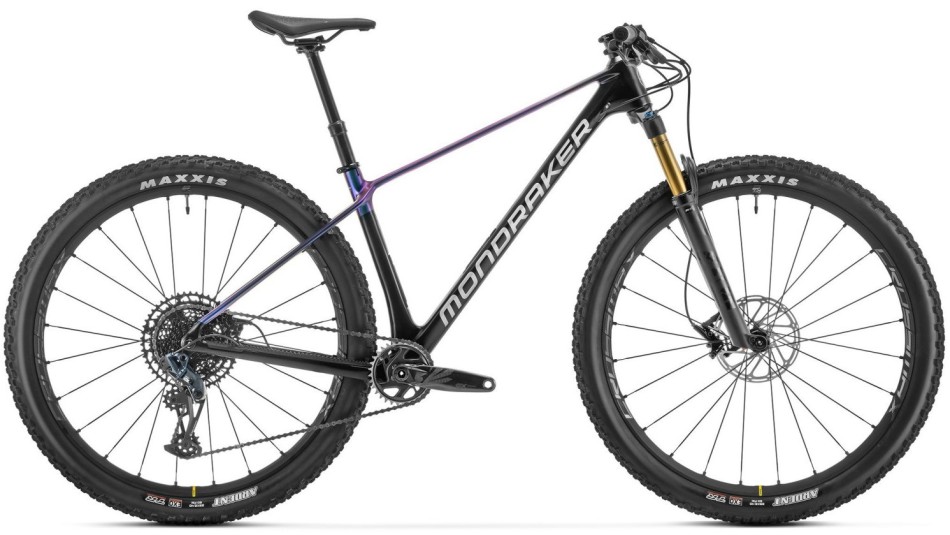

Mondraker Chrono Carbon DC RR 2025 Down Country Bike
The only build with a fork boasting 34mm stanchions, this bike comes with a Fox 34 Step Cast Float FIT4 EVOL Factory Kashima fork with remote lock-out
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Marin Rift Zone E 2025 eMTB
Starting at: £2,848.99
-
Marin Alpine Trail XR 2023 Enduro Bike
Starting at: £2,148.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
The only build with a fork boasting 34mm stanchions, this bike comes with a Fox 34 Step Cast Float FIT4 EVOL Factory Kashima fork with remote lock-out, SRAM LEVEL T brakes, ONOFF Pija dropper post (with between 120mm and 170mm of travel depending on frame size) and Maxxis Ardent 29×2.4” EXO tyres.
Specification
| Frame | Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12×148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, |
| Fork | Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15×110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload |
| Fork Remote | Fox single pull |
| Headset | Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8×40 45°x45°, bottom 51,8×40 36°x45° |
| Stem | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm |
| Saddle | Mondraker MDK Series, SRX, steel rail |
| Front Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12×148mm, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
| Rear Tyre | Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
| Crankset | Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55 |
| Chainring | 34T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1×12s, X-Actuation 1:1 |
| Shifter | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Derailleur Hanger | Sram UDH |
| Quoted Weight | 11.6 kg |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 395mm | 430mm | 470mm | 520mm |
| B – Toptube Length | 597mm | 614mm | 640mm | 655mm |
| C – Bottom Bracket Drop | 60mm | 60mm | 60mm | 60mm |
| D – Bottom Bracket Height | 305mm | 305mm | 305mm | 305mm |
| E – Chainstay Length | 430mm | 430mm | 430mm | 430mm |
| F – Seat Tube Angle | 71,5º | 71,5º | 71,5º | 71,5º |
| G – Effective Seattube Angle | 74.5º | 74.5º | 74.5º | 74.5º |
| H – Headtube Angle | 67,5º | 67,5º | 67,5º | 67,5º |
| I – Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J – Wheelbase | 1130mm | 1149mm | 1173mm | 1192mm |
| K – Headtube Length | 90mm | 100mm | 110mm | 120mm |
| L – Reach | 425mm | 440mm | 460mm | 475mm |
| M – Stack | 620mm | 629mm | 638mm | 647mm |
| N – Stem Length | 50 mm | 50mm | 60mm | 70mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 3 |
| Intended Use | Sport and competition riding with moderate technical demands of the trails |
| Intended Terrain | Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm |
| Recommended riding skills | Technical skills and practice required |
| Attention | Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2 |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
