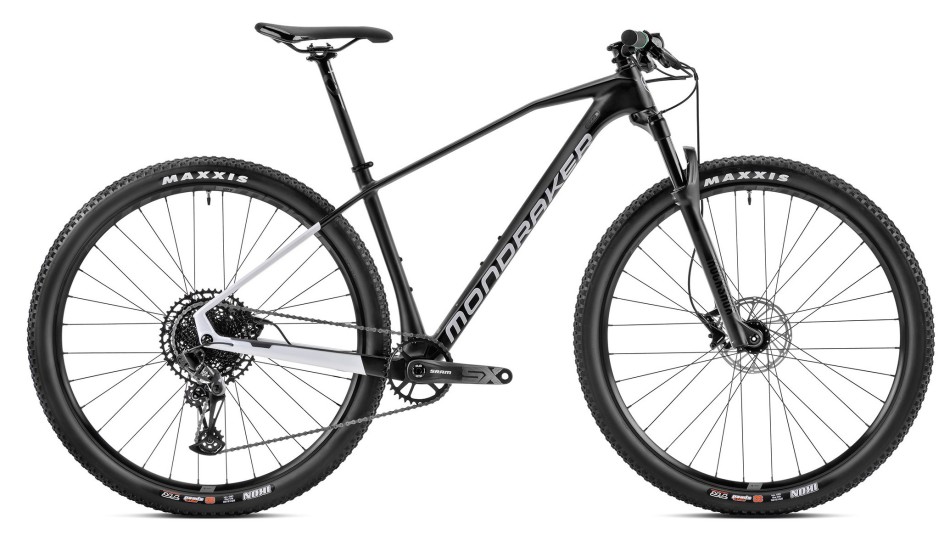

Mondraker Chrono Carbon 2023 Cross Country Bike
Thanks to its overall light weight the Chrono Carbon is very agile. This frame will let you push yourself to the limit.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Sram XX Eagle Transmission Chain
RRP: £135.00
Our price £114.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Thanks to intelligent frame design, manufactured using STEALTH FULL CARBON and an ideal fibre layup, its chainstays are vibration absorbent to greatly help reduce rider fatigue. Thanks to its overall light weight the Chrono Carbon is also very agile. This frame will let you push yourself to the limit
Although people may think that the Chrono is the kid sister of the Carbon Podium, we see it more as another option for you to push yourself to new heights, and who knows, even win races!
Specification
| Frame | Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12×148mm rear axle, Comfort Flat chainstays (Flatstays) design |
| Fork | RockShox Judy Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15×110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5×8×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Fork Remote | RockShox OneLoc |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
| Saddle | Mondraker XC Series, steel rail |
| Front Brake | SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Ikon 29×2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead |
| Rear Tyre | Maxxis Ikon 29×2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead |
| Crankset | SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derrailleur | SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | SRAM XG-1230, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seattube Length | 395mm | 430mm | 470mm | 520mm |
| B – Toptube Length | 590mm | 610mm | 630mm | 650mm |
| C – Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D – Bottom Bracket Height | 305mm | 305mm | 305mm | 305mm |
| E – Chainstay Length | 430mm | 430mm | 430mm | 430mm |
| F – Seat Tube Angle | 72° | 72° | 72° | 72° |
| G – Effective Seattube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| H – Headtube Angle | 70° | 70° | 70° | 70° |
| I – Fork Offset | 44mm/51mm | 44mm/51mm | 44mm/51mm | 44mm/51mm |
| J – Wheelbase | 1086mm | 1106mm | 1127mm | 1148mm |
| K – Headtube Length | 85mm | 90mm | 100mm | 115mm |
| L – Reach | 411mm | 430mm | 447mm | 463mm |
| M – Stack | 605mm | 610mm | 619mm | 632mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
