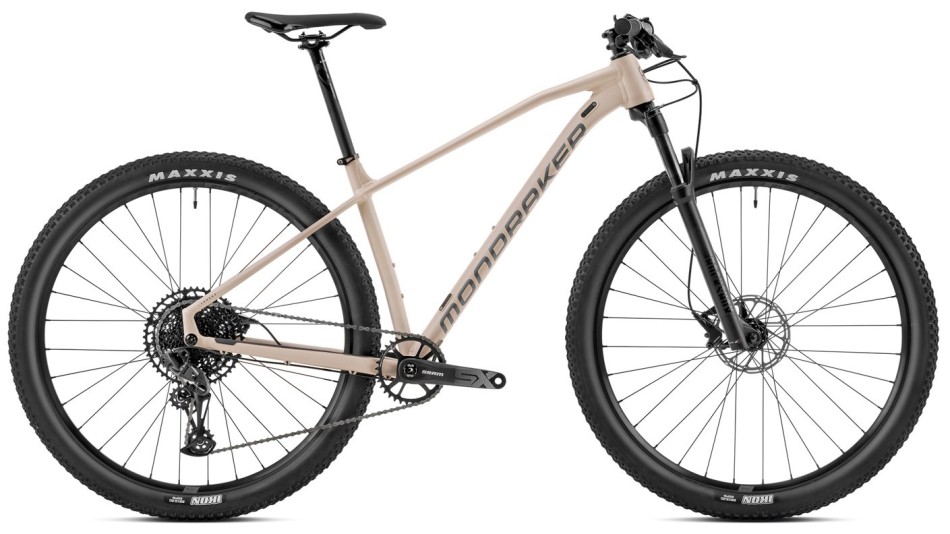

Mondraker Chrono 2023 Desert/Black Cross Country Bike
The Chrono, above all, is a dynamic bike.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Burgtec 22mm x M6 Titanium Offset Shock Hardware Kit
RRP: £19.99
Our price £4.99
-
Bosch Smart System Display Interface Rear Plug
£24.99 -
Thule Rail 4 Hydration Hip Pack
RRP: £89.99
Our price £80.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 30 days of placing an order.
The Chrono, above all, is a dynamic bike
Its frame is made of butted 6061 Xtralite Alloy and has our XC FORWARD GEOMETRY which will put you in an optimal position to pedal effectively while at the same time offering you stability and confidence when facing descents.
It’s the lowest priced bike in the Chrono range but still gives you all of our more than 20 years of knowledge in the manufacture of first class bikes, which means you can enjoy our Racing DNA every time you take it out.
Specification
| Frame | Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12×148mm rear axle |
| Fork | RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9×100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Fork Remote | RockShox PopLoc |
| Stem | ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm |
| Handlebar | ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Grips | ONOFF Diamond, 1lock-on, 135mm |
| Seatpost | ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
| Saddle | Mondraker XC Series, steel rail |
| Front Brake | SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC20LW, 9×100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12×148mm, sealed bearings, IS 6 bolts, MS freehub |
| Front Tyre | Maxxis Ikon 29×2.20, 60TPI, wire bead |
| Rear Tyre | Maxxis Ikon 29×2.20, 60TPI, wire bead |
| Crankset | SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
| Chainring | 34T, steel, X-Sync 2 |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Quoted Weight | 12.9kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 395mm | 430mm | 470mm | 520mm |
| B – Top Tube Length | 590mm | 610mm | 630mm | 650mm |
| C – Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D – Bottom Bracket Height | 305mm | 305mm | 305mm | 305mm |
| E – Chain Stay Length | 435mm | 430mm | 435mm | 435mm |
| F – Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° |
| G – Effective Seat Tube Angle | 73.5° | 73.5 | ° 73.5° | 73.5° |
| H – Head Tube Angle | 70° | 70° | 70° | 70° |
| I – Fork Offset | 44/46mm | 44/46mm | 44/46mm | 44/46mm |
| J – Wheelbase | 1087mm | 1107mm | 1127mm | 1148mm |
| K – Head Tube Length | 100mm | 100mm | 110mm | 125mm |
| L – Reach | 406mm | 426mm | 444mm | 460mm |
| M – Stack | 618mm | 618mm | 628mm | 642mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
