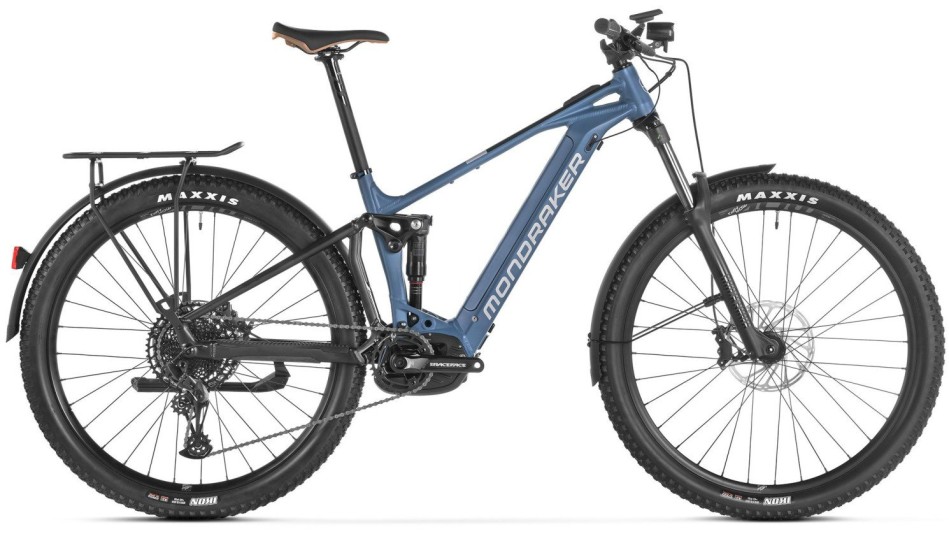

Mondraker Chaser X 2024 Blue/Black Trekking eBike
This new URBAN CROSS with double suspension and all the extras will let you enjoy the city or endless cycle paths easily and comfortably.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Sram Force AXS D1 Braze On Front Derailleur
RRP: £188.00
Our price £159.99
-
Park Tool USA CN-10 Pro Cable and Housing Cutter
RRP: £49.99
Our price £44.99
-
Thule 926101 VeloCompact 4th Bike Adaptor
RRP: £149.99
Our price £134.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
This new URBAN CROSS with double suspension and all the extras will let you enjoy the city or endless cycle paths easily and comfortably.The added safety provided by the rear suspension is the key to making it one of the most versatile bikes in our catalogue. What’s more, it comes fitted with Bosch’s Performance Line CX GEN 4 BS3 motor that gives you all the assurances you need to explore at your leisure without worrying about how far you can go and still get back.
This is bike you’ll want to ride daily, whether in the city, or out of town on forest tracks and trails when you disconnect from the daily grind.
Specification
| Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
| Rear Shock | RockShox Deluxe Select R Debonair, 205×65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | Light compression, Light rebound, 1 Token |
| Fork | RockShox Recon Silver RL 29, 150mm, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| Saddle | MDK urban |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Ikon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Ikon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Front Light | 50LUX output DC 6-12V, waterproof Alloy cage |
| Rear Light | Fender Mount, w/ Reflective, e-bike version, 6-12V |
| Mudguards | Alloy black MDK custom fenders |
| Rack | Alloy MDK rear Rack, Max loading 25kg |
| Kickstand | Massload KSA18-40 |
| Display | Bosch System Controller / Bosch Intuvia 100 |
| Remote | Bosch Mini Remote |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 Smart System |
| Battery | Bosch Powertube 625Wh Smart System |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Dimension | S | M | L | XL |
| A | Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H | Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
