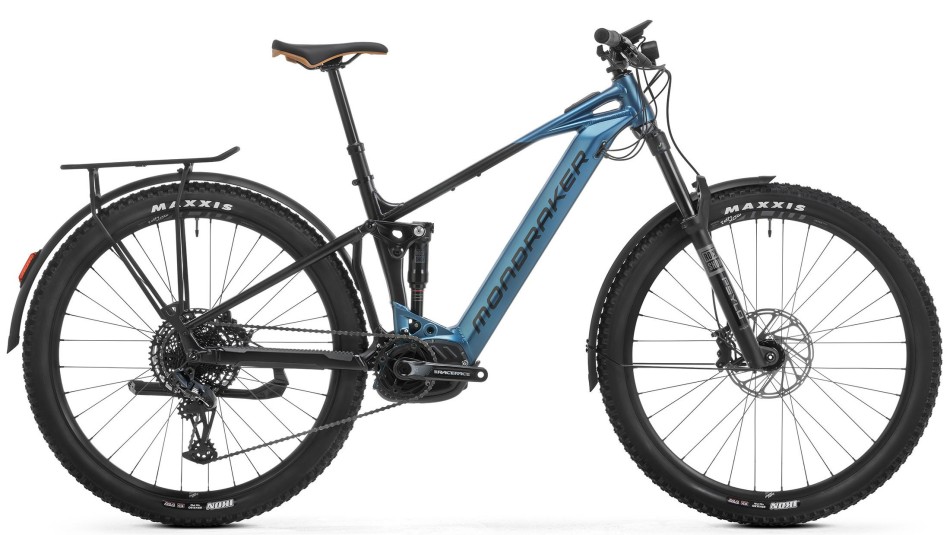

Mondraker Chaser RX 2025 Trekking eBike
The CHASER RX raises the Mondraker Urban Cross concept to new unexpected levels.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
And back to the dirt again, regardless of what’s passing under your wheels. Carefree when it comes to how far you can commute around town, or how high you can climb in the countryside at the weekend. Chaser X comes complete with mudguards, lights and a pannier rack.
The 150mm suspension coupled with a 160mm fork, plus the Zero Suspension System and a component list that’s more than up to taking some risks on the dirt and keeping everything under control on-road, multiplies the versatility by three, as well as your plans and your fun.
Specification
| Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal non-removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
| Rear Shock | RockShox Deluxe Select R DebonAir, 205×60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | Light compression, Linear rebound, 1 Token |
| Fork | RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff ZS44/ZS56, 1-1/8”, 1.5” head tube, ACB sealed bearings, top 42×30×7×45ºx45º, bottom 52×40×8×45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Saddle | MDK urban |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Ikon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Ikon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect-R ebike, 165mm |
| Chainring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle,12s |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 750Wh |
| Display/Remote | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | 26,3 kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Dimension | S | M | L | XL |
| A | Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H | Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
