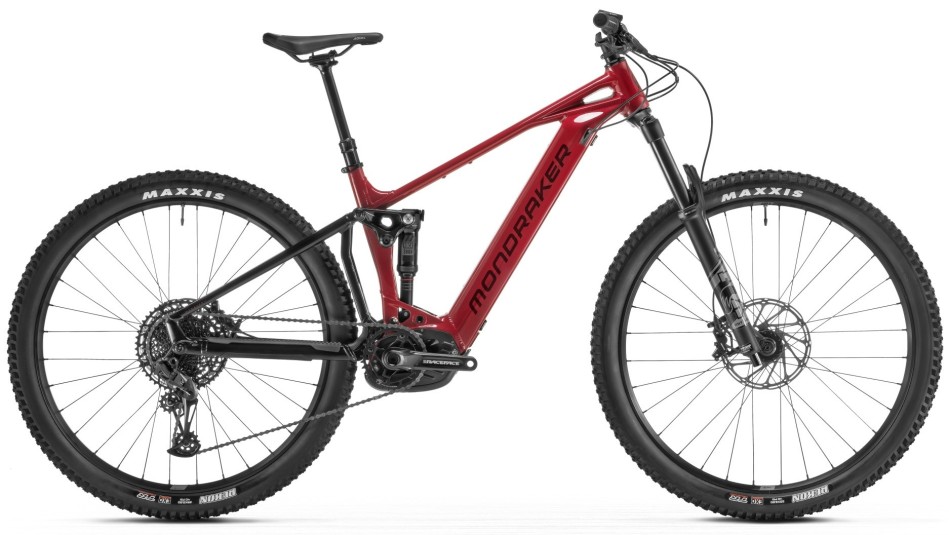

Mondraker Chaser 750 2022 Red/Black eMTB

Descending, climbing and endless hours of singletrack, the Crafty R makes it all possible.

Availability: Sold out

Product Name Price

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Mondraker

Details

Featuring a completely revised frame for 2022 the new Chaser benefits from a significant weight reduction, refined suspension kinematics and Bosch CX GEN4 technology.

Featuring our World Cup proven FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and STEALTH ALLOY EVO the Chaser delivers performance and value whilst never compromising on ride quality. The suspension sits at 160mm in the front and 150mm behind.

Specification

Frame Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Rear Shock RockShox Deluxe Select R Debonair, 205×65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings
Shock Settings Light compression, Light rebound, 1 Token
Fork Fox 36 29 Float FIT GRIP EVOL Rythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15×110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º
Stem Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips Onoff Diamond, 1lock-on, 135mm
Seatpost Onoff Pija dropper internal, diameter 31.6mm, S size: 387×125mm, M size: 425×150mm, L/XL size: 465×170mm
Saddle FIZIK Terra Aidon X5 145mm
Front Brake Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes CN round stainless steel
Front Hub Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts
Rear Hub Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts
Front Tyre Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear Tyre Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset Race Face Aeffect ebike, 165mm
Chainring Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain Sram SX Eagle, 12s, Powerlock
Rear Derailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1
Shifter Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette Sram PG-1210, 11-50T, 12s
Derailleur Hanger Mondraker M068
Display Bosch Kiox 300
Remote Bosch Smart System LED Remote
Motor Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery Bosch Powertube 750Wh
Quoted Weight 24.8kg
Max System Weight 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
S 165cm (5’5”) 170cm (5’7”)
M 170cm (5’7”) 180cm (5’11”)
L 175cm (5’9”) 187cm (6’1”)
XL 185cm (6’1”) 195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size Dimension S M L XL
A Seat Tube Length 380mm 420mm 450mm 490mm
B Toptube Length 605mm 625mm 650mm 670mm
C Bottom Bracket Drop -25mm -25mm -25mm -25mm
D Bottom Bracket Height 350mm 350mm 350mm 350mm
E Chainstay Length 455mm 455mm 455mm 455mm
F Seat Tube Angle 73.5° 73.5° 73.5° 73.5°
G Effective Seat Tube angle 76° 76° 76° 76°
H Headtube Angle 65.5° 65.5° 65.5° 65.5°
I Fork Offset 44mm 44mm 44mm 44mm
J Wheelbase 1225mm 1245mm 1265mm 1285mm
K Headtube length 110mm 110mm 130mm 130mm
L Reach 450mm 470mm 490mm 510mm
M Stack 622mm 622mm 640mm 640mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Additional Information
Manufacturer Mondraker
RRP N/A
