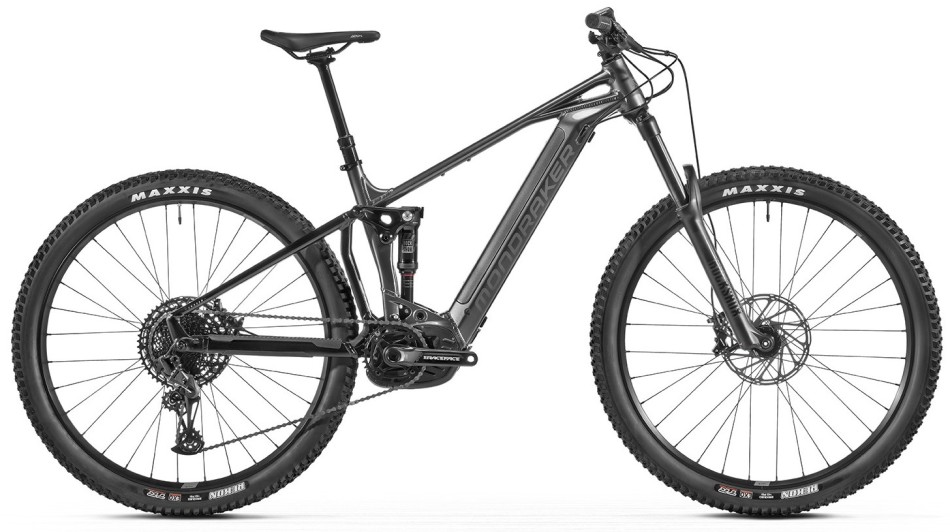

Mondraker Chaser 29 2022 Graphite/Black eMTB
The Chaser is the entry-level model to Mondraker's enduro ebike range.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Reaction Hybrid Pro 800 2025 Grey/Black eMTB
Starting at: £2,799.00
-
Mondraker Chaser 2025 Orange/Grey eMTB
Starting at: £4,599.00
Details
The chaser is the entry-level model to Mondraker’s enduro ebike range.
Its STEALTH aluminum frame with its ZERO SUSPENSION SYSTEM optimized for ebikes together with the quality components we’ve kitted it out with will let you enjoy endless trails for the best value for money on the market.
Nothing else offers you more than the Chaser. Mondraker has the most evolved ebikes in the sector and it shows that the Chaser is part of the family.
What’s more, it’s got 160mm of suspension travel up front and 150mm at the back which means you’re going to have lots and lots of fun. The Chaser is available in two colorways.
Specification
| Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
| Rear Shock | RockShox Deluxe Select R Debonair, 205×65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | Light compression, Light rebound, 1 Token |
| Fork | RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | ONOFF Diamond, 1lock-on, 135mm |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 387×125mm, M size: 425×150mm, L/XL size: 465×170mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Front Brake | SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | SRAM G2 R, tool-free reach adjust |
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15×110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12×148mm, sealed bearings, IS 6 bolts |
| Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Display | Bosch Purion |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 |
| Battery | Bosch Powertube 625Wh |
| Quoted Weight | 24.8kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Dimension | S | M | L | XL |
| A | Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H | Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | N/A |
