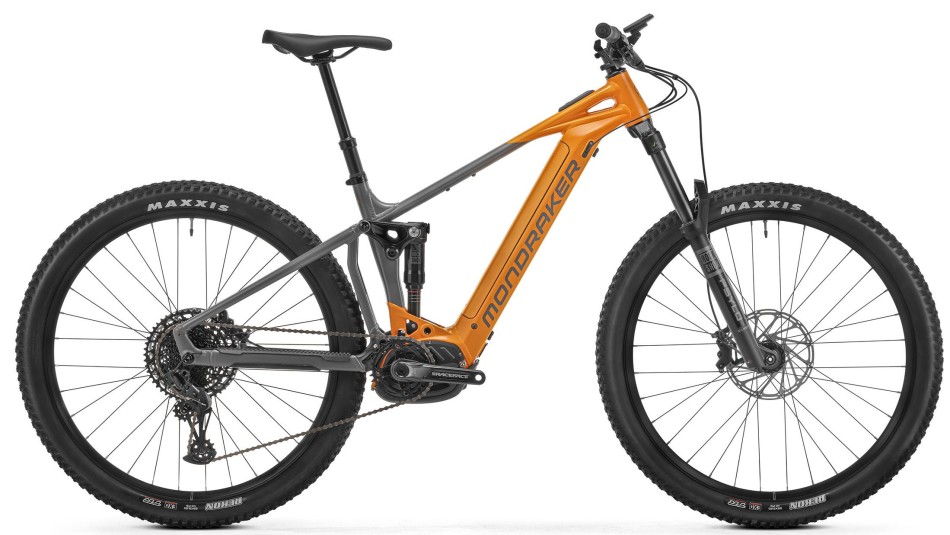

Mondraker Chaser 2025 Orange/Grey eMTB
The CHASER is the best option for riders who want a reassuring debut in the world of electric mountain bikes.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Kathmandu Hybrid One 750 2024 Grey/Black eBike
Starting at: £2,549.99
-
LifeSystems Light & Dry Micro First Aid Kit
RRP: £16.99
Our price £14.49
-
Marin Team Marin 1 2025 XC Trail Bike
Starting at: £899.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order
More because the Aluminium Stealth Alloy frame houses an integrated 750Wh battery and the latest version of perhaps the most relevant motor on the market today: the Bosch CX. More because the Zero Suspension System delivers 150mm travel (with a 160mm fork).
More because you have three builds to choose from, plus all-new ONOFF components and Forward Geometry. Chaser is our best and most accessible full suspension eMTB for anyone looking to get started in the world of ebikes.
Specification
| Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
| Rear Shock | RockShox Deluxe Select R DebonAir, 205×65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | Light compression, Linear rebound, 1 Token |
| Fork | RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff ZS44/ZS56, 1-1/8”, 1.5” head tube, ACB sealed bearings, top 42×30×7×45ºx45º, bottom 52×40×8×45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Saddle | MDK ebike black |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect-R ebike, 160mm |
| Chainring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram SX Eagle,12s |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 625Wh |
| Display/Remote | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Quoted Weight | 25,3 kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Dimension | S | M | L | XL |
| A | Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H | Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
