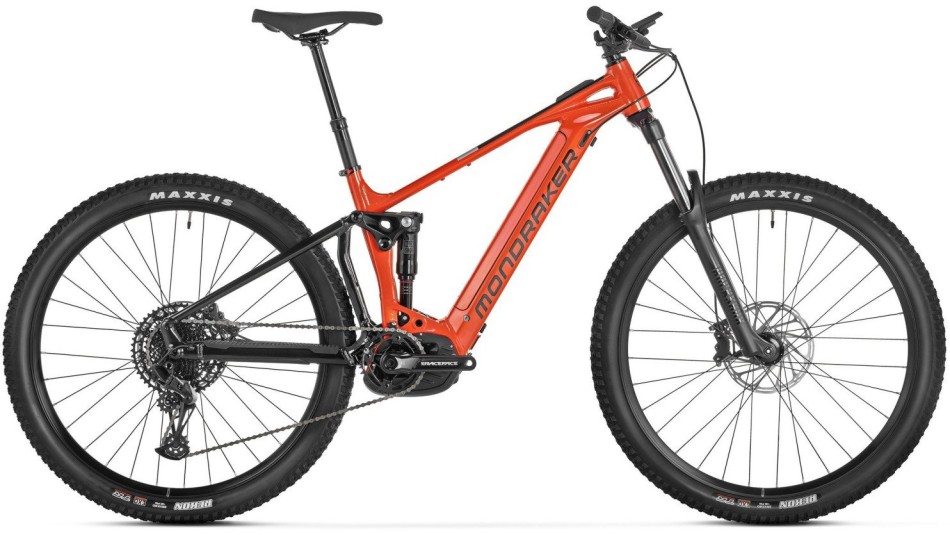

Mondraker Chaser 2024 Red/Black eMTB
The CHASER is the best option for riders who want a reassuring debut in the world of electric mountain bikes.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Thule Shield Pannier 25 Litre Pair Yellow
RRP: £129.99
Our price £116.99
-
Madison DeLux GelCel Women's Mitts Black
Starting at: £20.99
-
LifeVenture Flip-Top Thermal Mug Blue
RRP: £15.99
Our price £13.99
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order
The CHASER is the best option for riders who want a reassuring debut in the world of electric mountain bikes.
The Bosch Performance Line CX Smart System motor complete with Bosch’s new Mini Remote wireless remote control, integrated System Controller and the Intuvia 100 display all allow you to enjoy a very natural feeling pedal-assist with four different levels of assistance to choose from.
It comes with quality features such as a RockShox 35 Silver TK fork and a RockShox Deluxe Select R shock, SRAM’s SX Eagle 12-speed drivetrain; Formula wheels with 2.9” wide Maxxis Rekon tyres; SRAM DB8 brakes and ONOFF components.
Specification
| Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12×148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
| Rear Shock | RockShox Deluxe Select R Debonair, 205×65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25×10mm bottom bushings |
| Shock Settings | Light compression, Light rebound, 1 Token |
| Fork | RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15×110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2×7×45ºx45º, bottom 51.9×40×8×45ºx45º |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm |
| Saddle | MDK ebike black |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15×110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12×148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chainring | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1×12s, X-actuation 1:1 |
| Shifter | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Derailleur Hanger | Mondraker M068 |
| Display | Bosch System Controller / Intuvia 100 |
| Remote | Bosch Mini Remote |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 Smart System |
| Battery | Bosch Powertube 625Wh |
| Quoted Weight | 24.8kg |
| Max System Weight | 150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 165cm (5’5”) | 170cm (5’7”) |
| M | 170cm (5’7”) | 180cm (5’11”) |
| L | 175cm (5’9”) | 187cm (6’1”) |
| XL | 185cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Dimension | S | M | L | XL |
| A | Seat Tube Length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube Length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom Bracket Drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| F | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective Seat Tube angle | 76° | 76° | 76° | 76° |
| H | Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
