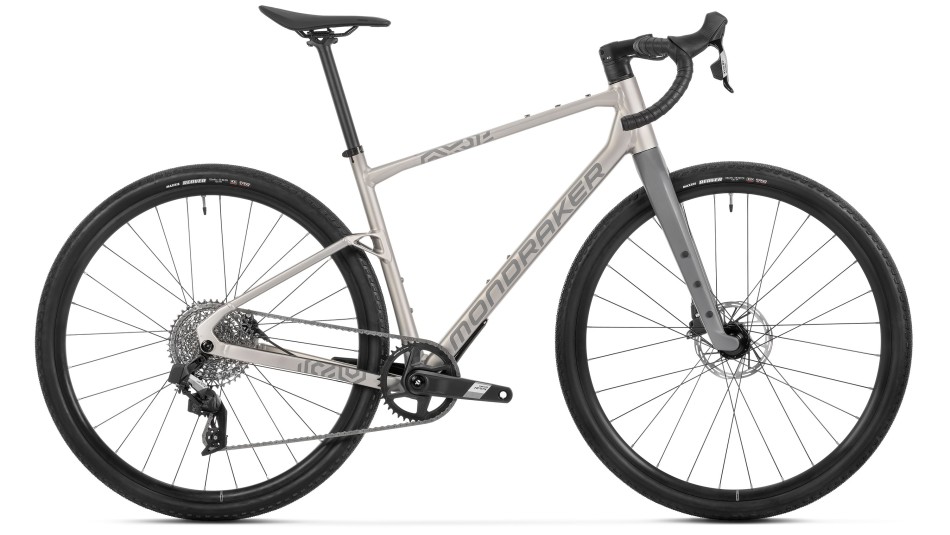

Mondraker Arid R 2026 Gravel Bike
Racing, adventure, singletrack or the daily commute, Arid is going to be there with you whatever the script
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Roam solo. Or chase the group ahead on the horizon. Mix it up with your friends or take on your first gravel race. Or simply leave the world behind for the weekend. There’s no wrong way to go, so long as you go!
Riding gravel brings you endless opportunities to experience the world, at the pace and the place that you choose. The new Mondraker Arid is your gateway to the Mondraker gravel scene and the world beyond your doorstep.
Specification
| Frame | Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12×142mm rear axle, 1X drivetrain design, Flatmount brake compatible | |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork | |
| Headset | Onoff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing | |
| Stem | Onoff Semi-Integrated 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm | |
| Handlebar | OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm | |
| Bar Tape | OnOff HEX Bartape | |
| Seatpost | Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm | |
| Saddle | FIZIK Terra Argo X5 140mm | |
| Front Brake | SRAM Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad | |
| Rear Brake | Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad | |
| Brake Levers | Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers | |
| Rims | Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokes rear | |
| Spokes | Mavic Steel double butted flat spokes | |
| Front Hub | Mavic, 12×100mm, IS 6 bolts | |
| Rear Hub | Mavic infinity hub, 12×142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub | |
| Front Tyre | Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead | |
| Rear Tyre | Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead | |
| Crankset | SRAM Apex 1 Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5 | |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide | |
| Bottom Bracket | Sram DUB T47 BSA, sealed bearings, 85,5mm | |
| Chain | Sram Apex, 12s, Powerlock | |
| Rear Derailleur | Sram Apex XPLR AXS D1 12s | |
| Shift lever | Sram Apex AXS D1 12s | |
| Cassette | Sram PG-1231 11-44, 12s | |
| Derailleur hanger | Sram UDH | |
| Quoted Weight | 10.6kg | |
| Max System Weight | 120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 160cm (5’3”) | 165cm (5’5”) |
| M | 165cm (5’5”) | 177cm (5’9”) |
| M/L | 177cm (5’9”) | 185cm (6’1”) |
| L | 183cm (5’9”) | 193cm (6’4”) |
| XL | 190cm (6’3”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | Small | Medium | Medium/Large | Large | X Large |
| A – Seat Tube Length | 410 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| B – Top Tube Length | 520 mm | 550 mm | 580 mm | 600 mm | 630 mm |
| C – Botom Bracket Drop | -75 | -75 | -75 | -75 | -75 |
| D – Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| E – Chainstay Length Effective | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| F – Seat Tube Angle Actual | 74° | 74° | 74° | 74° | 74° |
| H – Head Tube Angle STD | 70° | 70° | 70° | 70° | 70° |
| I – Fork Offset | 45° | 45° | 45° | 45° | 45° |
| J – Wheelbase | 1003 mm | 1035 mm | 1067 mm | 1089 mm | 1121 mm |
| K – Head Tube Length | 100 mm | 125 mm | 145 mm | 175 mm | 200 mm |
| L – Reach | 363 mm | 386 mm | 411 mm | 423 mm | 446 mm |
| M – Stack | 548 mm | 572 mm | 591 mm | 619 mm | 642 mm |
| N – Stem Length | 60 mm | 70 mm | 70 mm | 80 mm | 90 mm |
| O – Fork Height | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Mondraker |
|---|---|
| RRP | No |
