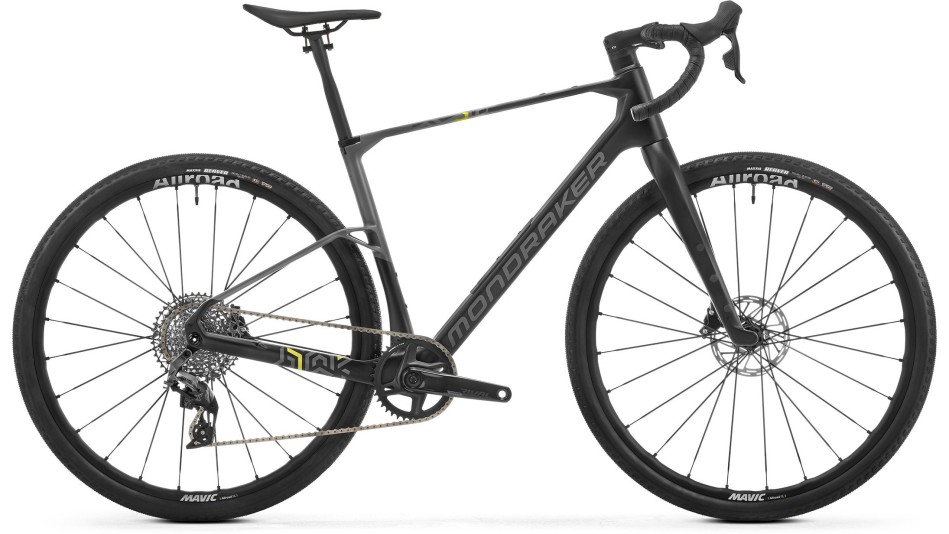

Mondraker Arid Carbon R 2025 Gravel Bike

Available with Mondaraker Spain in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Arid Carbon R is the first build to offer an SRAM AXS drivetrain in the form of the Rival Etap with a 40-tooth chainring and 12-speed, 10-44 cassette. Mavic supply the wheels with their Allroad SL 25mm rims fitted with Maxxis Reaver 45mm tyres. Available in the stylish Black / Nimbus Grey / Tonic Gold Paint scheme.

We don’t want to bore you with the details but we think you’ll be interested in this. Stealth Air Carbon is our elite-level carbon fibre construction process. The carbon fibre which makes up an ARID frame is designed, cut and assembled in such a manner that we’ve managed to create the most comfortable, the most vertically compliant fully rigid frame to ever come out of our workshops.

And to top it all off, regardless of its gravel bike label, ARID meets and exceeds the same strict ISO standards as all of our full-on mountain bikes. You see, lateral stiffness and power transfer don’t have to be incompatible with small-bump compliance and comfort.

Specification

Frame	Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12×142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Fork	Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset	Onoff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing.
Stem	Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar	OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips	OnOff HEX Bartape
Seatpost	Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle	FIZIK Terra Argo X5 140mm
Front Brake	Sram Rival Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear Brake	Sram Rival Etap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rims	Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes
Spokes	Mavic Steel double butted flat spokes
Front Hub	Mavic, 12×100mm, IS 6 bolts
Rear Hub	Mavic infinity hub, 12×142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub
Front Tyre	Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear Tyre	Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset	Sram Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Chainring	Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Chain	Sram Rival, 12s, Powerlock
Rear Derrailleur	Sram Rival XPLR Etap AXS, 12s
Shifter	Sram Rival Etap AXS 12s,
Cassette	Sram XG-1251 10-44T, 12s
Quoted Weight	8.9kg
Max System Weight	120kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
S	160cm (5’3”)	165cm (5’5”)
M	165cm (5’5”)	177cm (5’9”)
M/L	177cm (5’9”)	185cm (6’1”)
L	183cm (5’9”)	193cm (6’4”)
XL	190cm (6’3”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	Small	Medium	Medium/Large	Large	X Large
A – Seat Tube Length	410 mm	450 mm	480 mm	510 mm	540 mm
B – Top Tube Length	520 mm	550 mm	580 mm	600 mm	630 mm
C – Botom Bracket Drop	-75	-75	-75	-75	-75
D – Bottom Bracket Height	269 mm	269 mm	269 mm	269 mm	269 mm
E – Chainstay Length Effective	425 mm	425 mm	425 mm	425 mm	425 mm
F – Seat Tube Angle Actual	74°	74°	74°	74°	74°
H – Head Tube Angle STD	70°	70°	70°	70°	70°
I – Fork Offset	45°	45°	45°	45°	45°
J – Wheelbase	1003 mm	1035 mm	1067 mm	1089 mm	1121 mm
K – Head Tube Length	100 mm	125 mm	145 mm	175 mm	200 mm
L – Reach	363 mm	386 mm	411 mm	423 mm	446 mm
M – Stack	548 mm	572 mm	591 mm	619 mm	642 mm
N – Stem Length	60 mm	70 mm	70 mm	80 mm	90 mm
O – Fork Height	420 mm	420 mm	420 mm	420 mm	420 mm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required
