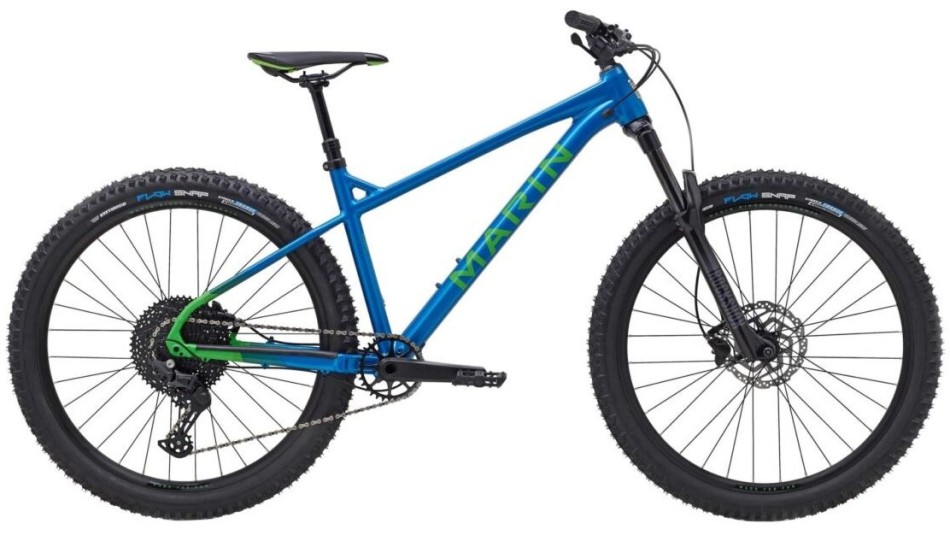

Marin San Quentin 2 2024 Trail Bike
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Burgtec 22mm x M6 Titanium Offset Shock Hardware Kit
RRP: £19.99
Our price £4.99
-
Bosch Smart System Display Interface Rear Plug
£24.99 -
Thule Rail 4 Hydration Hip Pack
RRP: £89.99
Our price £80.99
Related Products
Details
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
Downhill trails
Light dirt jump
Enduro
Key upgrades over the San Quentin 1:
Series 3 aluminum frame w/12×148mm thru axle
RockShox Recon RL fork w/130mm travel
Shimano Deore wide range 1× 11-speed drivetrain
Shimano hydraulic disc brakes
Specification
| Frame | Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12×148mm Thru-Axle, 73mm Threaded BB |
| Front Suspension | RockShox Recon RL, 110×15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle |
| Rims | Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible |
| Rear Hub | Shimano HF-MT400B, 148×12, Centerlock, Standard Freehub Body |
| Front Hub | Shimano HF-MT400B, 110×15mm, Centerlock |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Co, Flow Snap, 27.5×2.6”, MPC Compound, Wire Bead |
| Rear Derailleur | Shimano Deore, 11-Speed, SGS |
| Shifter | Shimano Deore, 11-Speed, SL-5100R |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Chain | KMC X-11 Silver and Black |
| Cassette | SunRace, 12-Speed, 11-51T, ED Black |
| Front Brake | Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor |
| Rear Brake | Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor |
| Brake Levers | Shimano BR-MT201 Hydraulic Disc |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 45mm |
| Grips | Marin MTN, Closed End |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
| Seatpost | TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Nylon Platform |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| X Small | 146cm (4’10”) | 157cm (5’2”) |
| Small | 157cm (5’2”) | 165cm (5’5”) |
| Medium | 165cm (5’5”) | 173cm (5’8”) |
| Large | 173cm (5’8”) | 180cm (5’11”) |
| X Large | 180cm (5’11”) | 188cm (6’2”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Stack | 586.1 | 590.7 | 599.7 | 604.3 |
| B – Reach | 422 | 444 | 464 | 484 |
| C – Headtube Angle | 65° | 65° | 65° | 65° |
| D – Headtube Length | 105 | 110 | 120 | 125 |
| E – Seattube Angle | 75° | 75° | 75° | 75° |
| F – Seattube Length | 385 | 430 | 475 | 515 |
| G – Toptube Effective | 579.1 | 602.3 | 624.7 | 645.9 |
| H – BB Height | 310 | 310 | 310 | 310 |
| I – BB Drop | 50 | 50 | 50 | 50 |
| J – Chainstay | 425 | 425 | 425 | 425 |
| K – Wheelbase | 1144.8 | 1168.9 | 1193.1 | 1215.3 |
| L – Standover Height | 664 | 677 | 714 | 745 |
| M – Fork Offset | 37 | 37 | 37 | 37 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 175 | 175 | 175 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
