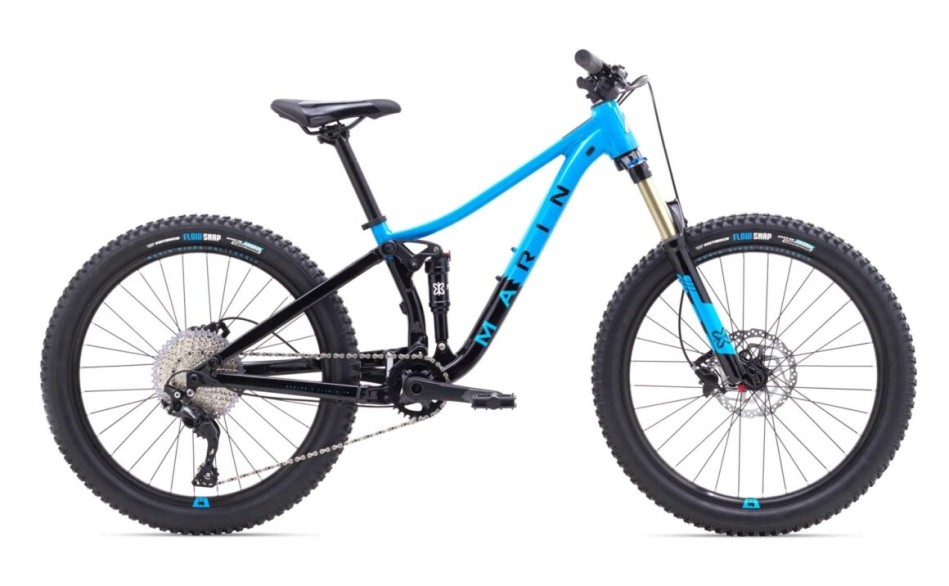

Marin Rift Zone JR 2024 24" Kids Bike
The Rift Zone 26 and Rift Zone Jr are for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full size counterpart.
SKU:
733289001
RRP: £1,599.00
Our price £1,422.99
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
The Rift Zone 26 and Rift Zone Jr are for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full size counterpart.
Both models utilize the same frame and fork, so a Rift Zone Jr is easily upgradable to 26” wheels and longer cranks as your little ripper grows. 26” wheels and longer cranks not included, but your local Marin dealer can source the parts.
Specification
| Frame | Series 3 6061 Aluminum Frame, 24” Wheel with Clearance for 26”, 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142×12mm Thru-Axle), 73mm Threaded BB |
| Front Suspension | X-Fusion Velvet RLC 26”, 120mm Travel, Compression and Rebound Adjustment, 100×15mm Thru-Axle |
| Rear Suspension | X-Fusion O2 Pro R, 190×51mm, Custom Tune, M8x22.2mm Hardware |
| Rims | Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Rear Hub | Forged Alloy, 135mm, Quad Sealed Bearings, 32H |
| Front Hub | Forged Alloy, 100×15mm, 32H |
| Spoke | 14g Stainless Steel |
| Tires | Vee Tire Co, Flow Snap 24”x2.4”, Tackee Compound, Wire Bead |
| Rear Derailleur | Shimano Deore, 11 Speed, SGS |
| Shifter | Micro Shift, SLM895, 11-Speed |
| Crankset | Marin Forged Alloy 1×11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X-11 Silver and Black |
| Cassette | SunRace 11-Speed, 11-46T |
| Front Brake | Shimano MT-201 Hydraulic Disc, 180mm Rotor |
| Rear Brake | Shimano MT-201 Hydraulic Disc, 160mm Rotor |
| Brake Levers | Shimano BL-MT201 Hydraulic |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips | Marin Dual Density |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Speed Concept |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| One Size | 122cm (4’0”) | 142cm (4’8”) |
| Allows 26” Wheels and 120mm Cranks | 142cm (4’8”) | 157cm (5’2”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | One Size |
| A – Stack | 536.24 |
| B – Reach | 380 |
| C – Headtube Angle | 67.5° |
| D – Headtube Length | 105 |
| E – Seattube Angle | 69° |
| F – Seattube Length | 335 |
| G – Toptube Effective | 536 |
| H – BB Height | 305 |
| I – BB Drop | 10 |
| J – Chainstay | 428.5 |
| K – Wheelbase | 1018 |
| L – Standover Height | 621 |
| M – Fork Offset | 42 |
| Seatpost Diameter | 30.9 |
| Handlebar Width | 720 |
| Stem Length | 45 |
| Crank Length | 152 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
