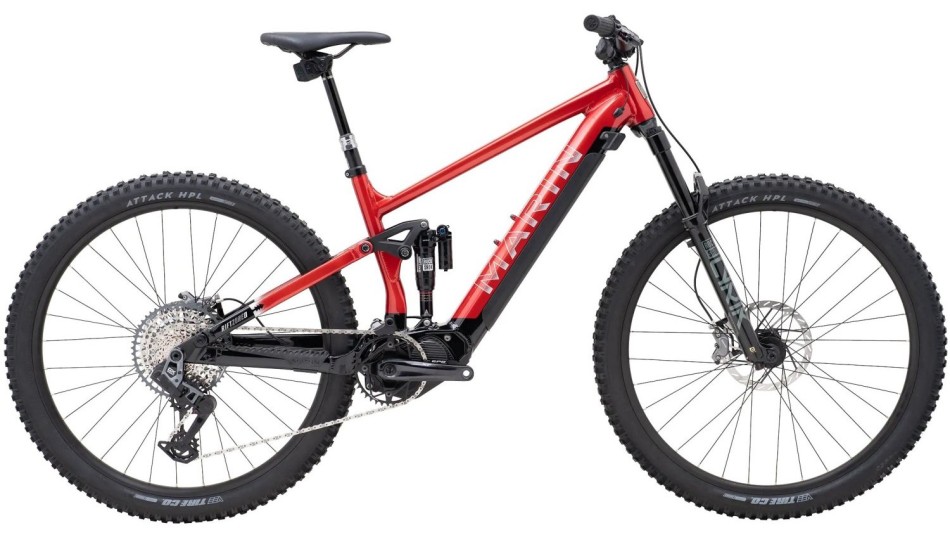

Marin Rift Zone E XR 2025 eMTB

XR stands for EXTRA RAD. We turned the Rifty E up another notch with this one – RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tire Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes. And the cherry on top? SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post. Our highest spec, highest tech Rifty E ever.

Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.

Specification

Frame	Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork	RockShox Lyrik Ultimate, 150mm Travel, 29”, 110×15 Maxle Stealth, 42mm Offset
Shock	RockShox Super Deluxe Ultimate, 210×55, 25mm x M8 Hardware, Custom Tune
Rims	Marin Aluminum Double Wall, 29” Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
Rear Hub	Formula DC-711, 110×15, 6-Bolt, 32H
Front Hub	Formula DCL-3482, 4 Sealed Bearings, 148×12, XD Driver, 6-Bolt, 32H
Spokes	14g Black Stainless Steel
Tyres	Vee Tire Co. Attack HPL, 29×2.5”, Top 40 Tubeless Compatible, Overide E-Specific Casing
Rear Derailleur	SRAM GX AXS
Shifter	SRAM AXS POD
Crankset	Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring
Motor	Shimano EP801, 250W, 85Nm
Chain	SRAM GX
Cassette	SRAM CS-XS-1275, 10-52T
Front Brake	SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor
Rear Brake	SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor
Handlebar	Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem	Marin CNC, 35mm Length, 35mm Bar Bore
Grips	Marin Grizzly Lock On
Headset	FSA No 57, Sealed Cartridge Bearings, 1 1/8” × 1 1/2”
Seatpost	Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm
Saddle	Marin eMTB
Pedals	Marin MTB Plastic
Battery	BT-8036, Internal 630Wh
Display	Shimano SC-E600
Switch	SW-EN600L Left Hand Switch for Assist Mode Change
Chain Guide	Shimano CS-EM800 Chain Guide
Charger	Shimano Battery Charger EC-E6002
Tyre Inserts	CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap
Max System Weight	138kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	158cm (5’3”)	168cm (5’6”)
Medium	168cm (5’6”)	178cm (5’10”)
Large	178cm (5’10”)	188cm (6’2”)
X Large	188cm (6’2”)	193cm (6’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
A – Stack	606.98	614.04	625.1	634.16
B – Reach	445 4	65	485	515
C – Head Tube Angle	65°	65°	65°	65°
D – Head Tube Length	100	110	120 1	30
E – Seat Tube Angle	77°	77°	77°	77°
F – Seat Tube Length	390	400	425	435
G – Top Tube Effective	585.13	607.22	629.32	661.41
H – BB Height	348.5	348.5	348.5	348.5
I – BB Drop	32	32	32	32
J – Chainstay	440	440	440	440
K – Wheelbase	1198.29	1222.52	1246.74	1280.97
L – Standover Height	693.65	696.01	709.94	719.93
M – Fork Offset	42	42	42	42
Seatpost Diameter	30.9	30.9	30.9	30.9
Handlebar Width	780	780	780	780
Stem Length	35	35	35	35
Crank Length	160	160	160	160

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
