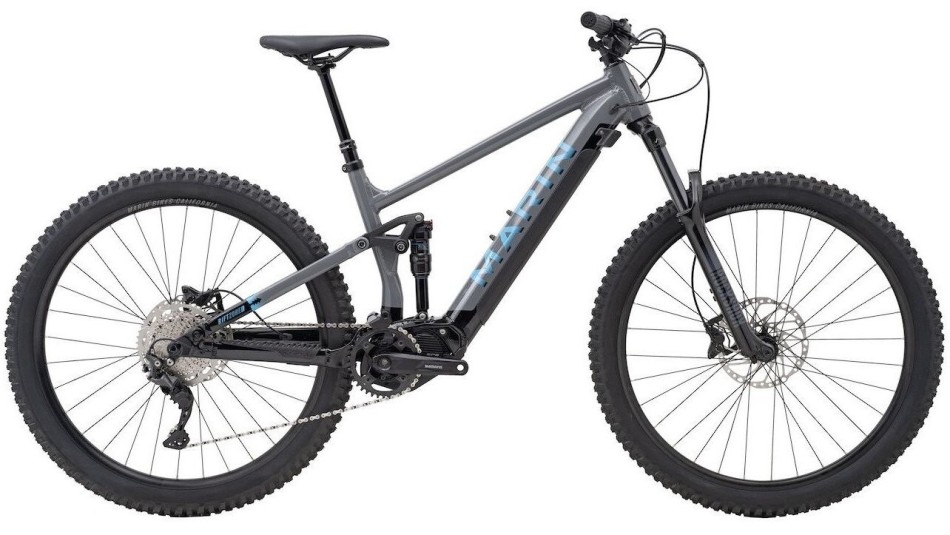

Marin Rift Zone E 2025 eMTB
One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension.
Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down.
A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.
Specification
| Frame | All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Fork | RockShock 35 Silver R 29”, Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset |
| Shock | X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210×50 25xM8 Lower Mount & Upper Mount |
| Rims | Marin Aluminum Double Wall, 29” Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Rear Hub | Shimano HB-MT400B, 148×12mm, Centerlock Disc, Standard Freehub Body |
| Front Hub | Shimano MT-410B, 110×15mm, Centerlock Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Vee Tire Co. Attack HPL, 29×2.5”, Top 40 Tubeless Compatible, Override E-Specific Casing |
| Rear Tyre | Vee Tire Co. Attack HPL, 29×2.5”, Top 40 Tubeless Compatible, Override E-Specific Casing |
| Rear Derailleur | Shimano Deore, Direct Attachment, 10-Speed SGS |
| Shifter | Shimano Deore, 10-Speed |
| Crankset | Aluminum, 160mm Length, 38t Chainring |
| Chain Guide | Shimano CS-EN800 Chainguide |
| Motor | Shimano Steps EP6 Drive Unit, 250W, 85Nm |
| Chain | KMC X-10E, Silver |
| Cassette | Shimano Deore 10-speed 11-46T |
| Front Brake | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor |
| Rear Brake | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips | Marin Grizzly Lock On |
| Headset | FSA No 57, Semi-Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
| Seatpost | TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm |
| Saddle | Marin E-MTB Saddle |
| Pedals | Marin MTB Plastic |
| Battery | Shimano BT-EN805L, Internal 504Wh |
| Display | Shimano SC-E600 |
| Switch | Shimano SW-EN600L Left Hand Switch for Assist Mode Change |
| Charger | Shimano Battery Charger EC-E6002 |
| Max System Weight | 138kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small | 158cm (5’3”) | 168cm (5’6”) |
| Medium | 168cm (5’6”) | 178cm (5’10”) |
| Large | 178cm (5’10”) | 188cm (6’2”) |
| X Large | 188cm (6’2”) | 193cm (6’4”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Stack | 606.98 | 614.04 | 625.1 | 634.16 |
| B – Reach | 445 4 | 65 | 485 | 515 |
| C – Head Tube Angle | 65° | 65° | 65° | 65° |
| D – Head Tube Length | 100 | 110 | 120 1 | 30 |
| E – Seat Tube Angle | 77° | 77° | 77° | 77° |
| F – Seat Tube Length | 390 | 400 | 425 | 435 |
| G – Top Tube Effective | 585.13 | 607.22 | 629.32 | 661.41 |
| H – BB Height | 348.5 | 348.5 | 348.5 | 348.5 |
| I – BB Drop | 32 | 32 | 32 | 32 |
| J – Chainstay | 440 | 440 | 440 | 440 |
| K – Wheelbase | 1198.29 | 1222.52 | 1246.74 | 1280.97 |
| L – Standover Height | 693.65 | 696.01 | 709.94 | 719.93 |
| M – Fork Offset | 42 | 42 | 42 | 42 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 160 | 160 | 160 | 160 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
