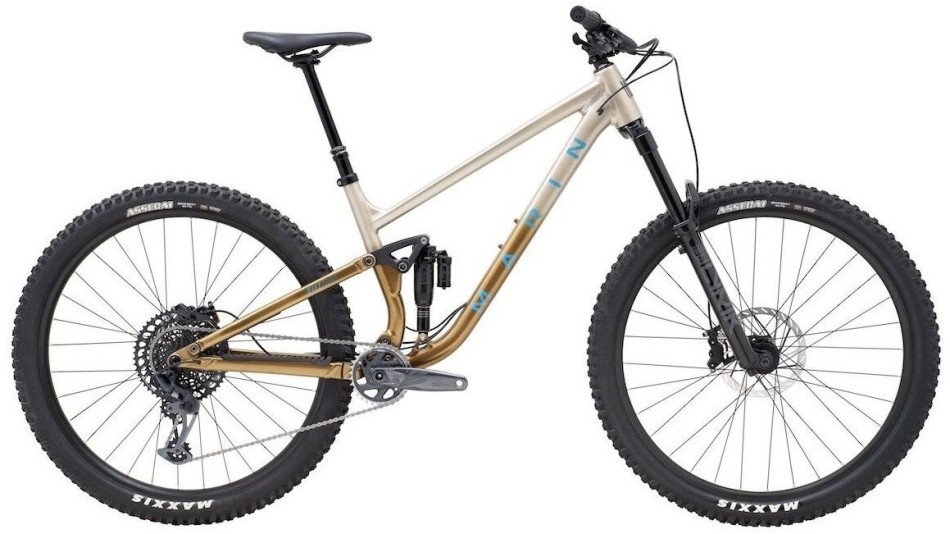

Marin Rift Zone 29 XR 2024 Trail Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone 29 brings together trail-taming 29” wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
“XR” means Extra Rad over here at Marin, and with that, the Rifty XR gets an extra spicy build. Starting out front, the fork is RockShox’s supreme Lyrik Select+ model, now sporting 150mm of travel. Not wanting to leave the rear in the lurch, the Super Deluxe Select+ shock balances out the bouncy bits. SRAM’s wide-range 12-speed GX Eagle drivetrain helps get the power to the rear wheel, while DB8 4-piston brakes offer impeccable braking performance.
Specification
Frame | Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148×12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
Fork | RockShox Lyrik Select+, 150mm Travel, 29” wheels, 110×15 Maxle Stealth, 42mm Offset |
Rear Shock | RockShox Super Deluxe Select+, 210×55mm, 25xM8 Hardware, Custom Tune |
Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
Rear Hub | Formula, DCL-3482, 148×12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
Front Hub | Formula, DC-711, 110×15mm, 6-Bolt Disc, 32h |
Spokes | 14g Black Stainless Steel |
Tyres | Maxxis Assegai, 29×2.5”, MAXX TERAA, EXO, Tubeless Compatible |
Rear Derailleur | SRAM GX Eagle Lunar |
Shifter | SRAM GX Eagle Lunar MMX Mount |
Crankset | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
Bottom Bracket | SRAM DUB MTB 73 |
Chain | SRAM NX Eagle |
Cassette | SRAM XG 1275 Eagle Cassette 10-52T |
Front Brake | SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor |
Rear Brake | SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor |
Handlebar | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
Grips | Marin Grizzly Lock On |
Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
Seatpost | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
Saddle | Marin Speed Concept |
Pedals | Not included |
Extras | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
Small | 160cm (5’3”) | 168cm (5’6”) |
Medium | 168cm (5’6”) | 178cm (5’10”) |
Large | 178cm (5’10”) | 188cm (6’2”) |
X Large | 188cm (6’2”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry

Frame Size | S | M | L | XL |
A – Stack | 623.6 | 628.2 | 637.3 | 641.8 |
B – Reach | 435 | 460 | 485 | 515 |
C – Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
D – Head Tube Length | 110 | 115 | 125 | 130 |
E – Seat Tube Angle | 77° | 77° | 77° | 77° |
F – Seat Tube Length | 390 | 400 | 425 | 430 |
G – Top Tube Effective | 579 | 605 | 632.1 | 663.2 |
H – BB Height | 343 | 343 | 343 | 343 |
I – BB Drop | 35 | 35 | 35 | 35 |
J – Chainstay | 430 | 430 | 430 | 430 |
K – Wheelbase | 1170 | 1205.1 | 1234.4 | 1266.3 |
L – Standover Height | 690.2 | 691.2 | 701.7 | 700.5 |
M – Fork Offset | 44 | 44 | 44 | 44 |
Seat Post Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
Handlebar Width | 780 | 780 | 780 | 780 |
Stem Length | 35 | 35 | 35 | 35 |
Crank Length | 170 | 170 | 170 | 170 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Marin |
---|---|
RRP | No |
