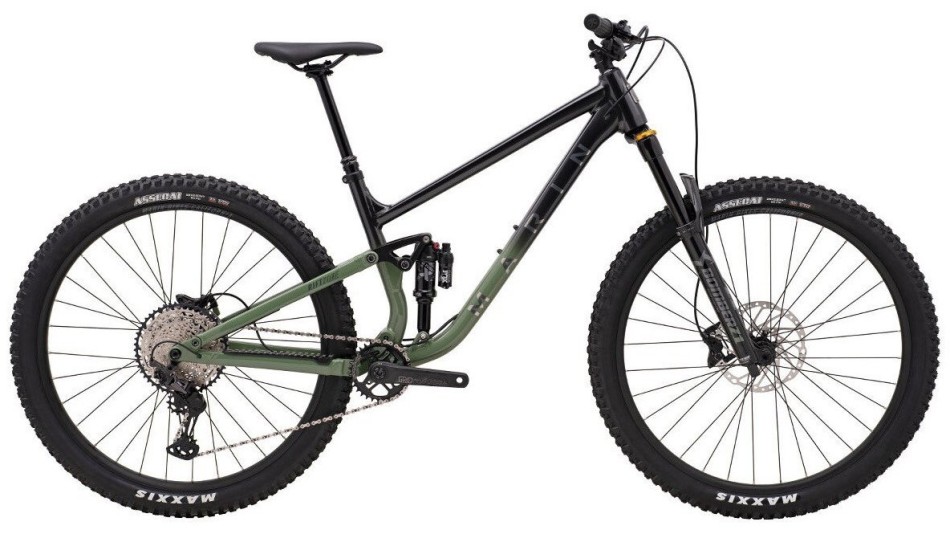

Marin Rift Zone 29 XR 2023 Trail Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package.
Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Fast paced, epic rides
Pushing the envelope up and down the trail
Chasing personal records
Specification
Frame | All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148×12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
Fork | Marzocchi Bomber Z1 29”, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset |
Rear Shock | Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210×55mm, M8x30mm Top, M8x25mm Bottom |
Rims | Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible |
Rear Hub | Forged Alloy, 148×12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body |
Front Hub | Forged Alloy, 110×15mm, Disc, 32H |
Spokes | 14g Black Stainless Steel |
Tyres | Maxxis Assegai, 29×2.5”, MAXX TERRA, EXO, Tubeless Compatible |
Rear Derailleur | Shimano XT, 12-Speed, SGS |
Shifter | Shimano SLX, 12-Speed, SL-7100R |
Crankset | FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
Bottom Bracket | Mego EXO 73mm BSA |
Chain | KMC X-12 Silver and Black |
Cassette | Shimano, SLX 12-Speed, 10-51T |
Front Brake | Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor |
Rear Brake | Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor |
Brake Levers | Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible |
Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
Stem | Marin 3D Forged Alloy, 35mm |
Grips | Marin Grizzly Lock On |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
Seatpost | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
Saddle | Marin Speed Concept |
Pedals | Not included |
Extras | Bolt-On Thru-Axle |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
Small | 160cm (5’3”) | 168cm (5’6”) |
Medium | 168cm (5’6”) | 178cm (5’10”) |
Large | 178cm (5’10”) | 188cm (6’2”) |
X Large | 188cm (6’2”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | S | M | L | XL |
A – Stack | 623.6 | 628.2 | 637.3 | 641.8 |
B – Reach | 435 | 460 | 485 | 515 |
C – Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
D – Head Tube Length | 110 | 115 | 125 | 130 |
E – Seat Tube Angle | 77° | 77° | 77° | 77° |
F – Seat Tube Length | 390 | 400 | 425 | 430 |
G – Top Tube Effective | 579 | 605 | 632.1 | 663.2 |
H – BB Height | 343 | 343 | 343 | 343 |
I – BB Drop | 35 | 35 | 35 | 35 |
J – Chainstay | 430 | 430 | 430 | 430 |
K – Wheelbase | 1170 | 1205.1 | 1234.4 | 1266.3 |
L – Standover Height | 690.2 | 691.2 | 701.7 | 700.5 |
M – Fork Offset | 44 | 44 | 44 | 44 |
Seat Post Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
Handlebar Width | 780 | 780 | 780 | 780 |
Stem Length | 35 | 35 | 35 | 35 |
Crank Length | 170 | 170 | 170 | 170 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Marin |
---|---|
RRP | No |
