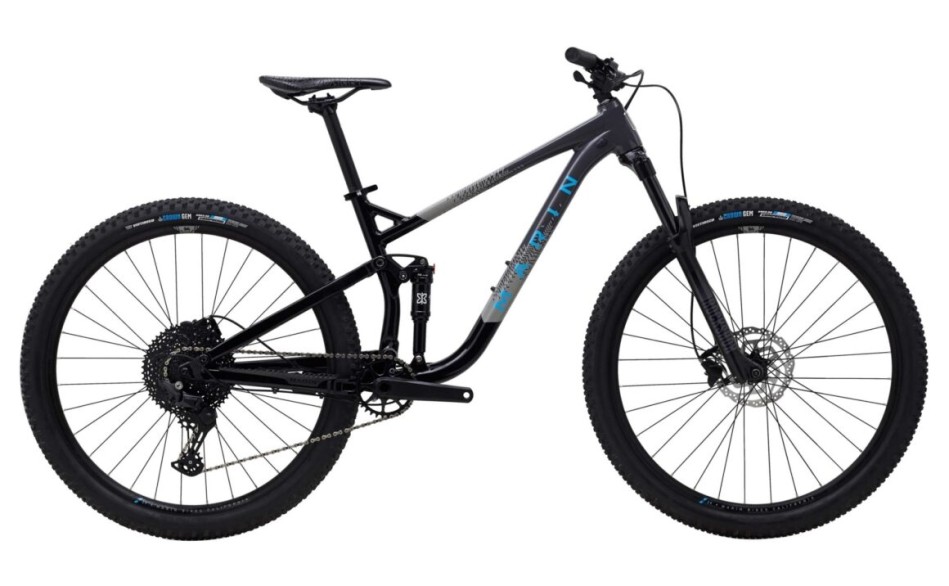

Marin Rift Zone 29 1 2023 Trail Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package.
Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds
Fast paced, epic rides
Pushing the envelope up and down the trail
Chasing personal records
SPEC
FRAME | Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148×12), 73mm Threaded BB w/ ISCG05 Tabs |
FRONT SUSPENSION | RockShox Recon Silver RL 29”, 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110×15mm Boost Spacing, Maxle Stealth, 42mm Offset |
REAR SUSPENSION | X-Fusion O2 Pro R, Custom Tune, 210×50mm, M8x25mm Hardware Top and Bottom |
RIMS | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
REAR HUB | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body |
FRONT HUB | Shimano HF-MT400B, 110×15mm, Centerlock |
SPOKES | 14g Black Stainless Steel |
TIRES | Vee Tire Crown Gem 29×2.35”, Dual Control Compound, Tubeless Ready |
REAR DERAILLEUR | Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed |
SHIFT LEVER | Shimano Deore, 11-Speed, SL-5100R |
CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
BOTTOM BRACKET | External Sealed Cartridge Bearing |
CHAIN | KMC X-11 Silver and Black |
CASSETTE | SunRace, 12-Speed, 11-51T, ED Black |
FRONT BRAKE | Shimano BR-MT201 Hydraulic Disc, 180mm Rotor |
REAR BRAKE | Shimano BR-MT201 Hydraulic Disc, 180mm Rotor |
BRAKE LEVERS | Shimano BR-MT201 Hydraulic Disc |
HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
STEM | Marin 3D Forged Alloy, 35mm |
GRIPS | Marin MTN, Closed End |
HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
SEATPOST | Marin Alloy, 30.9mm |
SADDLE | Marin Speed Concept |
PEDALS | Not included |
EXTRAS | Closed 9-12 Thru-Axle QR System |
Manufacturer | Marin |
---|---|
RRP | No |
