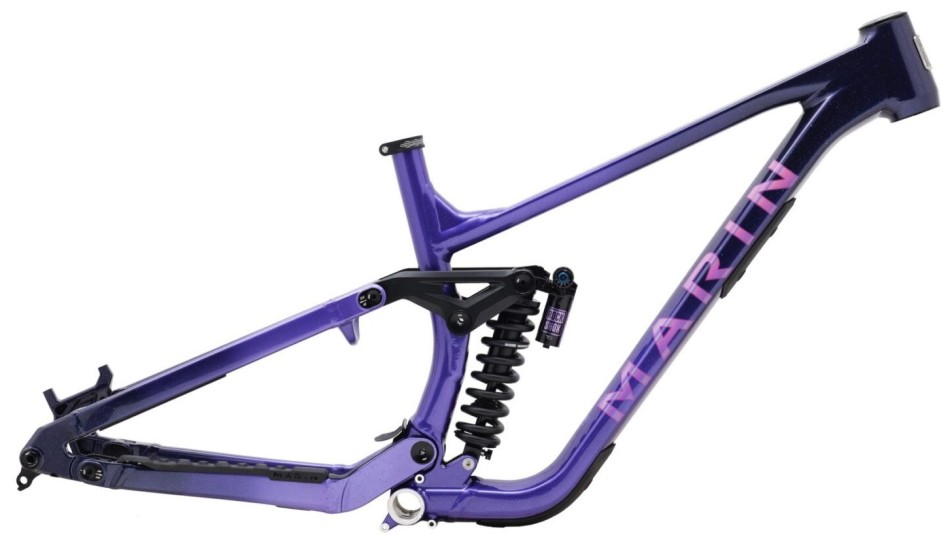

Marin Quake 2025 Downhill Frameset

Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples.

During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth

An all-new Series 4 MultiTrac 2 frame features 180mm rear wheel travel and flip chips that allow the rider to select the bottom bracket height and chainstay length, along with the ability to run a 29” rear wheel. We’ve chosen a no-nonsense build kit, starting with RockShox’s storied Boxxer fork paired with a Vivid Coil Ultimate DH shock.

Specification

Frame	All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5” or 29” compatible, 148mm Rear Thru-Axle, & frame protection, UDH
Rear Shock	RockShox Vivid Coil Ultimate DH, 22×5×75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune
Extras	Downtube & Shuttle Guards

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	160cm (5’3”)	168cm (5’6”)
Medium	168cm (5’6”)	178cm (5’10”)
Large	178cm (5’10”)	188cm (6’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Geometry configuration – 29/27.5 wheels – BB Low – Chainstay Long – Headtube 0°

Frame Size	S	M	L
A – Stack	630	639	639
B – Reach	418	438	478
C – Headtube Angle	62.3°	62.3°	62.3°
D – Headtube Length	100	110	110
E – Toptube Effective	577	599	639
F – Seattube Angle	75.8°	75.8°	75.8°
G – Seattube Length	390	415	430
H – BB Height	353	353	353
I – BB Drop (Rear/Front)	4.4/26.4	4.4/26.4	4.5/26.4
J – Chainstay	440	440	440
K – Wheelbase	1230	1255	1295
L – Standover Height	683	690	695
M – Fork Offset	52	52	52
Seatpost Diameter	34.9	34.9	34.9
Stem Length	50	50	50
Crank length	165	165	165

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
