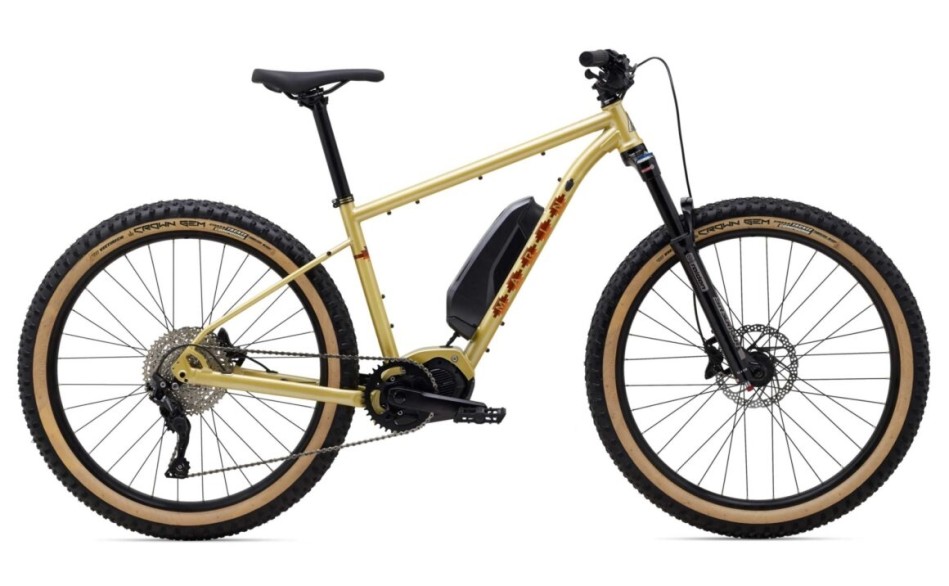

Marin Pine Mountain E1 2022 eMTB
The Pine Mountain E hardtails are for mountain bikers who need a boost
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Related Products
Details
The Pine Mountain E hardtails are for mountain bikers who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own.
Built around a CrMo frame with with modern geometry, abundant accessory mounts, 27.5+ wheels, and adventure-ready components, the Pine Mountain E models are sure to open new horizons to riders.
SPEC
| FRAME | Series 3 Double Butted and Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148×12mm Dropouts, 148×12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts |
| FRONT SUSPENSION | SR Suntour Raidon Boost, 120mm Travel, Air Spring w/ Adjustable Damping, 15×110 Thru-Bolt, 44mm Offset |
| RIMS | Marin Aluminum Double Wall, 38mm Inner, Disc Specific, Tubeless Compatible |
| REAR HUB | Forged Alloy, 148×12mm, 32H |
| FRONT HUB | Forged Alloy, 110×15mm, 32H |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Crown Gem, 27.5×2.8”, Synthesis Sidewall, Tubeless Compatible |
| REAR DERAILLEUR | Shimano Deore Shadow Plus SGS 10-Speed |
| SHIFT LEVER | Shimano Deore 11-Speed |
| CRANKSET | Marin Forged Alloy, Steel Narrow Wide 38T Chainring |
| MOTOR | Shimano STEPS E7000 System |
| BOTTOM BRACKET | External Sealed Cartridge Bearings |
| CHAIN | KMC X10E |
| CASSETTE | SunRace 10-Speed, 11-46T |
| FRONT BRAKE | Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor |
| REAR BRAKE | Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor |
| BRAKE LEVERS | Shimano MT400 Hydraulic |
| HANDLEBAR | Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep |
| STEM | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin BearPaw Locking |
| HEADSET | FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
| SEATPOST | Marin Alloy, 30.9mm |
| SADDLE | Marin Pine Mountain Trail |
| PEDALS | Nylon Platform |
| EXTRAS | Bolt-On Thru-Axle |
| BATTERY | Shimano E8010, 418Wh |
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | N/A |
