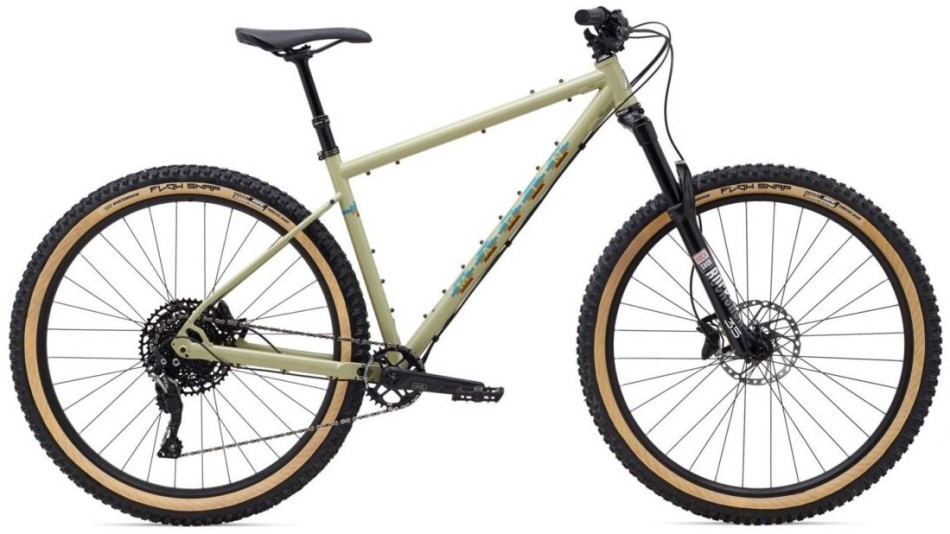

Marin Pine Mountain 2 2024 Adventure Bike

The Pine Mountain is a classic steel hardtail with modern trail capabilities for hardtail purists pushing the limits and seeking adventure.

The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting, lights, phones, cycle computers, or whatever else catches your fancy. Available exclusively on the Pine Mountain and Pine Mountain E series.

The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainsstays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.

Trail riding

All-day epics

Adventure

Bikepacking

Key upgrades over the Pine Mountain 1:

Series 3 CrMo frame w/12×148mm custom cast thru-axle dropouts
RockShox FS 35 fork
Shimano SLX 12 speed drivetrain & FSA Grid crankset
Shimano MT520 brakes

Specification

Frame	Series 3 Double Butted and Heat Treated CrMo, 29” Wheels, Custom Cast Boost 148×12mm Dropouts, 148×12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
Front Suspension	RockShox FS 35, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110×15mm Boost Spacing, Maxle Lite, 44mm Offset
Rims	Alloy Double-Wall, Offset Spoke, 32mm Id, Tubeless Compatible
Rear Hub	shimano, Microspline 148×12mm, Centerlock Disc, 32 H
Front Hub	Forged Alloy, 110×15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H
Spokes	14g Black Stainless Steel
Tires	Vee Tire Flow Snap, 29×2.6”, Folding Bead, Tubeless Ready
Rear Derailleur	Shimano SLX 12-Speed
Shift Lever	Shimano SLX 12-Speed
Crankset	FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
Bottom Bracket	FSA Outboard Cartridge Bearings
Chain	KMC X12
Cassette	Shimano SLX M7100 Cassette, 12-Speed, 10-51T
Front Brake	Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor
Rear Brake	Shimano MT500, 2-Piston, Hydraulic Disc, 160mm Rotor
Brake Levers	Shimano MT500 Hydraulic
Handlebar	Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
Stem	Marin 3D Forged Alloy, 35mm
Grips	Marin BearPaw Locking
Headset	FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8” × 1 1/2”
Seatpost	TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm
Saddle	Marin Pine Mountain Trail
Pedals	Not included
Extras	Bolt-On Thru-Axle

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	160cm (5’3”)	168cm (5’6”)
Medium	168cm (5’6”)	175cm (5’9”)
Large	175cm (5’9”)	183cm (6’0”)
X Large	183cm (6’0”)	193cm (6’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Difficulty viewing on mobile? Switch to landscape

Frame Size	S	M	L	XL
A – Stack	626	630.6	635.2	644
B – Reach	410	430	455	485
C – Head Tube Angle	66.5°	66.5°	66.5°	66.5°
D – Head Tube Length	95	100	105	115
E – Seat Tube Angle	74.5°	74.5°	74.5°	74.5°
F – Seat Tube Length	381	431	482	520
G – Top Tube Effective	572	593	619.3	651.6
H – BB Height	315	315	315	315
I – BB Drop	60	60	60	60
J – Chain Stay	430	430	430	430
K – Wheelbase	1137.5	1159.5	1186.5	1220.5
L – Stand Over Height	694	740	784	817
M – Fork Offset	44	44	44	44
Seat Post Diameter	30.9	30.9	30.9	30.9
Handlebar Width	780	780	780	780
Stem Length	35	35	35	35
Crank Length	170	175	175	175

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
