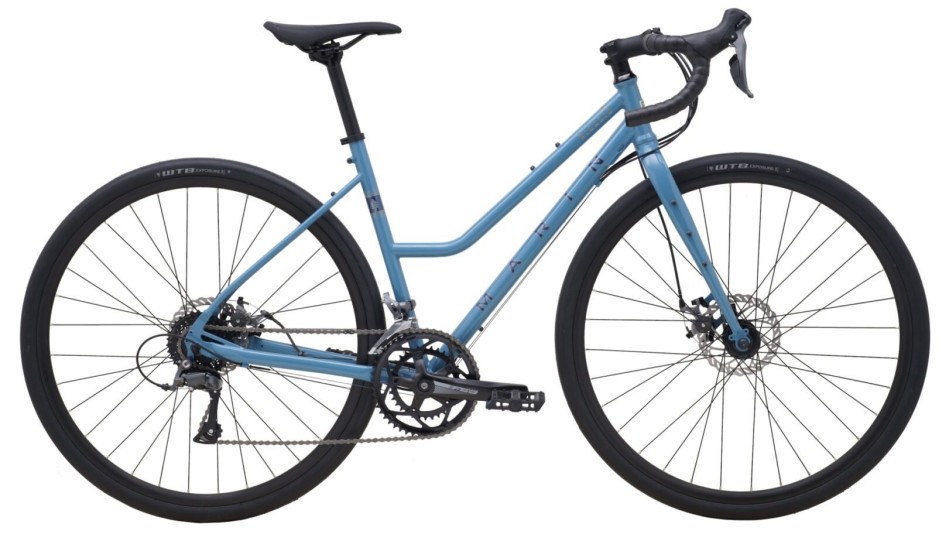

• Marin Nicasio 1 ST 2025 Blue Gravel Bike

Marin Nicasio 1 ST 2025 Blue Gravel Bike Zoom

Marin Nicasio 1 ST 2025 Blue Gravel Bike

Be the first to review this product

The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction

Availability: Sold out

Product Name Price

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Marin

Recently Viewed

Details

The new Nicasio ST is built around a smooth-riding and stylish Series 1 double-butted CrMo frame and fork and zippy 700C wheels, with room for up to 45mm tires.

The step-thru frame makes the bike easier to mount/dismount, especially when the bike may be loaded with cargo or a child seat. We’ve specced a 2×8-speed Shimano Claris drivetrain, wide WTB rubber, powerful Tektro mechanical discs and plenty of Marin components to ensure a smooth, safe, and FUN ride.

Specification

Frame Steezy Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork CrMo, Fender and Rack Eyelets, IS Disc Mount
Rims Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Rear Hub Forged Aluminum Alloy, Disc, 32H
Front Hub Forged Aluminum Alloy, Disc, 32H
Spoke, Nipples 14g Black Stainless Steel
Tyres WTB Exposure, 700Cx36, Wire Bead
Rear Derailleur Shimano Claris 8-Speed
Front Derailleur Shimano Claris
Shift Lever Shimano Claris 2×8-Speed
Crankset FSA Tempo Compact, 50/34T
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Chain KMC Z8
Cassette SunRace 8-Speed, 11-32T
Front Brake Tektro MDC400, Road Mechanical, 160mm Rotor
Rear Brake Tektro MDC400, Road Mechanical, 160mm Rotor
Brake Levers Shimano w/ Integrated Shifters
Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Stem Marin 3D Forged Alloy
Grips Marin Comfort Tape
Headset FSA No.8D, Sealed Cartridge Bearings
Seatpost Marin Alloy, 27.2mm
Saddle Marin Beyond Road Concept
Pedals Nylon Platform

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
47cm 147cm (4’10”) 152cm (5’0”)
50cm 152cm (5’0”) 160m (5’3”)
52cm 160cm (5’3”) 168cm (5’6”)
54cm 168cm (5’6”) 175cm (5’9”)
56cm 175cm (5’9”) 183cm (6’0”)
58cm 183cm (6’0”) 188cm (6’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Difficulty viewing on mobile? Switch to landscape

Frame Size 47cm 50cm 52cm 54cm 56cm 58cm
A – Stack 536 546 564 578 592 606
B – Reach 375 375 375 380 390 402
C – Headtube Angle 70.5° 70.5 71.5 71.5 71.5 71.5
D – Headtube Length 95 105 120 135 150 165
E – Seattube Angle (Actual) 75° 74.5° 74° 74° 74° 74°
F – Seattube Length 410 460 480 500 520 540
G – Toptube (Effective) 519 526 537 546 560 575
H – Bottom Bracket Height 274 274 274 274 274 274
I – Bottom Bracket DROP 76 76 76 76 76 76
J – Chainstay 430 430 430 430 430 430
K – Wheelbase 1014 1017 1014 1024 1039 1055
L – Standover Height 538 523 535 548 560 569
M – Fork Offset 50 50 50 50 50 50
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2 27.2
Handlebar Width 400 400 400 420 420 440
Stem Length 75 75 75 90 90 90
Crank Length 170 170 170 175 175 175

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
