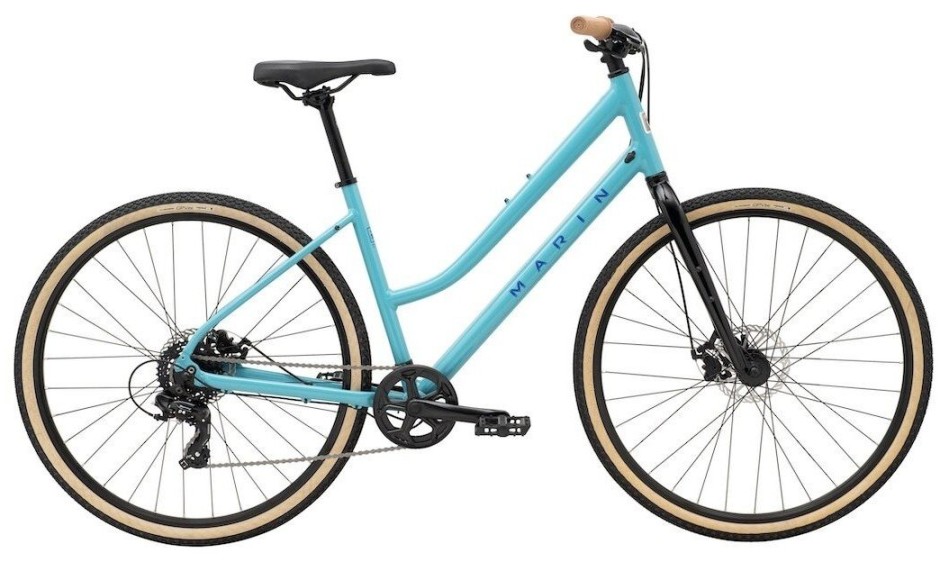

Marin Kentfield ST 1 2025 Blue Hybrid Bike
The Kentfield is a retro-modern, stylish, yet affordable bike that can do it all
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Related Products
Details
The Kentfield is a retro-modern, stylish, yet affordable bike that can do it all, the new Kentfield is ready to take you to school, the bike path, or through the back alleys to B-line to a coffee date.
Comfortable transport
Casual commuter
Bike path Sunday driver
Specification
| Frame | Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts |
| Fork | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Rear Hub | Forged Aluminum Alloy, 32H |
| Front Hub | Forged Aluminum Alloy, 32H |
| Spokes | 14g Stainless Steel |
| Tyres | Vee Tire, GPVee, 700×40, Wire Bead, Flat Protection, Mixed Terrain Ready |
| Rear Derailleur | Shimano Tourney 7-Speed |
| Shifter | Shimano Altus 7-Speed RapidFire |
| Crankset | Forged Alloy Crank, Steel 38T Chainring, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z8 |
| Cassette | SunRace 7-Speed, 11-34T |
| Front Brake | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Rear Brake | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Brake Levers | Aluminum Lever |
| Handlebar | Marin Alloy, 30mm Rise, 12˚ Backsweep |
| Stem | Marin Aluminum, 31.8mm Clamp |
| Grips | Marin Adventure |
| Headset | FSA 888 Threadless |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Adventure Plush |
| Pedals | Commute Platform |
| Maximum Rider Weight | 136kg Rider + 14kg Luggage = Total 150kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small | 150cm (4’11”) | 162cm (5’4”) |
| Medium | 162cm (5’4”) | 173cm (5’6”) |
| Large | 173cm (5’6”) | 178cm (5’10”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L |
| A – Stack | 633.6 | 648.4 | 666.5 |
| B – Reach | 380 | 400 | 415 |
| C – Headtube Angle | 70° | 70° | 70° |
| D – Headtube Length | 190 | 205 | 225 |
| E – Seattube Angle | 73.5° | 73.5° | 73.5° |
| F – Seattube Length | 381 | 422 | 462 |
| G – Toptube Effective | 567.7 | 591.9 | 612.4 |
| H – BB Height | 294.5 | 294.5 | 294.5 |
| I – BB Drop | 70 | 70 | 70 |
| J – Chainstay | 450 | 450 | 450 |
| K – Wheelbase | 1082.9 | 1108 | 1130 |
| L – Standover Height | 510.61 | 523.8 | 543.04 |
| M – Fork Offset | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 740 | 740 |
| Stem Length | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 175 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
