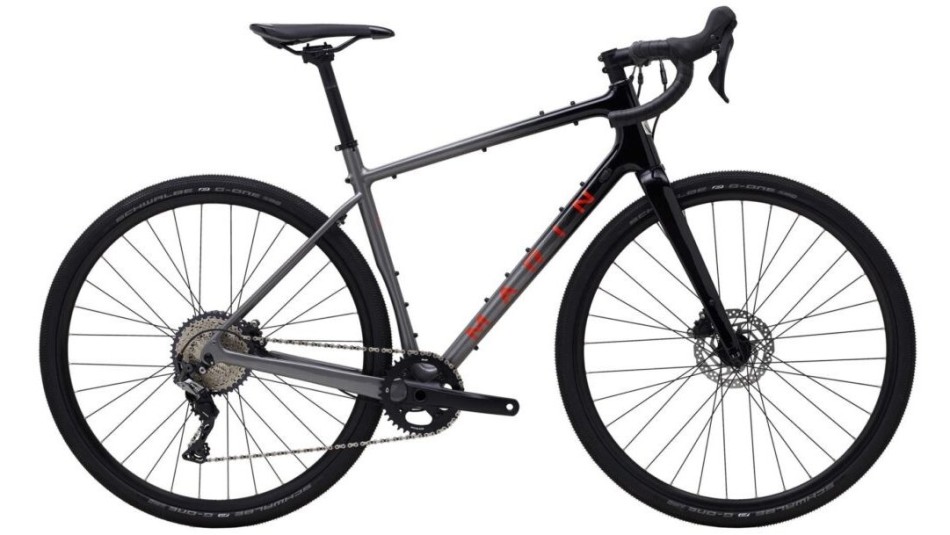

Marin Headlands 1 2024 Gravel Bike
Modern geometry, generous tire clearance, and sublime ride quality, all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Reaction Pro 2025 Teal/Holo Cross Country Bike
Starting at: £999.00
-
Pro Missile Clip-On Tri-Bend 31.8mm
RRP: £129.99
Our price £110.49
-
M-Part Rack Mount Seat Clamp 34.9mm
£9.99
Related Products
Details
The Headlands takes what we have learned with the alloy Gestalt X line, and brings the spirit to an all-new, full carbon fiber frameset.
Modern geometry, generous tire clearance, and sublime ride quality, all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations.
Adventure on and off-road riding
Long distance commuting
Gravel riding
Specification
| Frame | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142×12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Rims | Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible |
| Rear Hub | Forged Aluminum Alloy, 32H |
| Front Hub | Forged Aluminum Alloy, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Schwalbe G-One Performance, 700Cx40mm, Folding Bead |
| Rear Derailleur | Shimano GRX Shadow w/ Clutch |
| Shift Lever | Shimano GRX RX600 |
| Crankset | Forged Alloy 1×11, Hollow CrMo Spindle, Narrow Wide 40T |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X11 |
| Cassette | Shimano CS-M7000 11/42T |
| Front Brake | Shimano GRX Hydraulic Disc, 160mm Rotor |
| Rear Brake | Shimano GRX Hydraulic Disc, 160mm Rotor |
| Brake Levers | Shimano GRX Hydraulic w/ Shifter |
| Handlebar | Marin Butted Alloy, Compact 12º Flared Drop, Flat Top |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Shock Absorbing Tape |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Pedals | Commute Platform |
| Extras | Bolt-On Thru-Axles F and R |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 49cm | 150cm (4’11”) | 160cm (5’3”) |
| 52cm | 160cm (5’3”) | 168cm (5’6”) |
| 54cm | 168cm (5’6”) | 175cm (5’9”) |
| 56cm | 175cm (5’9”) | 183cm (6’0”) |
| 58cm | 183cm (6’0”) | 188cm (6’2”) |
| 60cm | 188cm (5’11”) | 193cm (6’4”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Difficulty viewing on mobile? Switch to landscape
| Frame Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm |
| A – Stack | 550.3 | 565.7 | 581.8 | 600.8 | 619.7 | 638.7 |
| B – Reach | 370 | 372.8 | 372.7 | 386.4 | 411.4 | 425.8 |
| C – Headtube Angle | 70.5° | 71° | 71.5° | 71.5° | 71.5° | 71.5° |
| D – Headtube Length | 120 | 135 | 150 | 170 | 190 | 210 |
| E – Seattube Angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73.5° |
| F – Seattube Length | 440 | 470 | 490 | 510 | 530 | 550 |
| G – Toptube Effective | 522 | 535 | 545 | 565 | 595 | 615 |
| H – BB Height | 283.5 | 272 | 272 | 272 | 272 | 272 |
| I – BB Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| J – Chainstay | 420 | 420 | 420 | 420 | 420 | 420 |
| K – Wheelbase | 1010.2 | 1007.4 | 1007.7 | 1028.5 | 1059.2 | 1079.9 |
| L – Standover Height | 711 | 725 | 741 | 758 | 775 | 792 |
| M – Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 420 | 420 | 420 | 440 | 440 | 440 |
| Stem Length | 60 | 60 | 60 | 60 | 70 | 70 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
