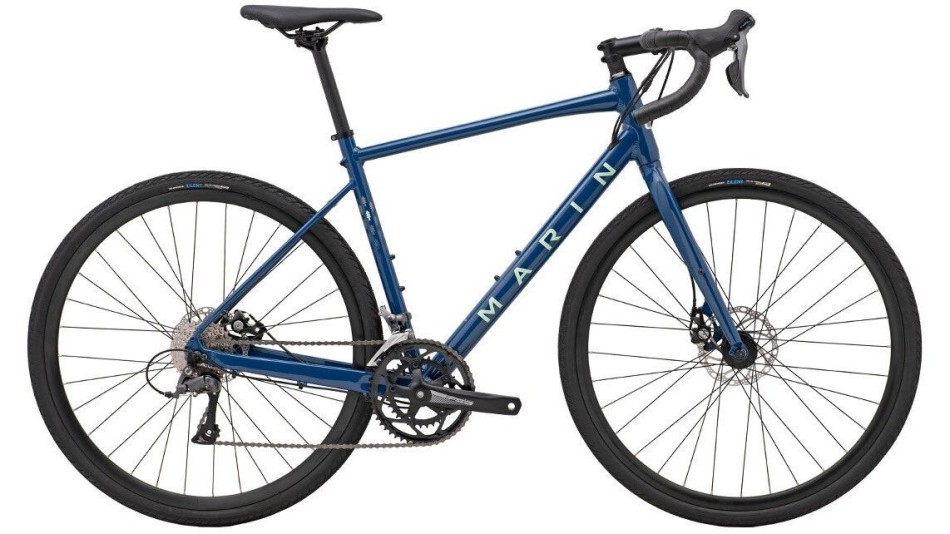

Marin Gestalt 2025 Blue Gravel Bike
The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
DT Swiss FR 1500 Classic 29" 20x110 Boost Front Wheel
RRP: £339.99
Our price £288.99
-
Shimano BB-MT800 MTB 89.5/92mm Press Fit Bottom Bracket
£36.99 -
Mondraker Crafty Carbon RR SL 2024 eMTB
Starting at: £8,599.99
Details
The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route.
Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.
Adventure road riding
Long distance commuting
Endurance and all-weather pavement
Specification
| Frame | Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts |
| Fork | 6061 Aluminum, Straight-Blade, Post-Mount Disc |
| Rims | Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific, Tubeless Compatible |
| Rear Hub | Forged Aluminum Alloy, 32H |
| Front Hub | Forged Aluminum Alloy, 32H |
| Spokes | 14g Black Stainless Steel |
| Tyres | Vee Tire Co., Zilent, 700×35 |
| Rear Derailleur | Shimano Claris 8-Speed |
| Front Derailleur | Shimano Claris |
| Shift Levers | Shimano Claris 2×8-Speed |
| Crankset | FSA Tempo Compact, 50/34T |
| Bottom Bracket | Sealed Bearing Square Taper |
| Chain | KMC X8 |
| Cassette | SunRace 8-Speed, 11-32T |
| Front Brake | Tektro MD-C40 Road Mechanical Disc, 160mm Rotorc |
| Rear Brake | Promax Render R Road Mechanical Disc |
| Brake Levers | Shimano w/ Integrated Shifters |
| Handlebar | Marin Butted Alloy, Compact 12º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Perforated Tape |
| Headset | FSA No.8B |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Pedals | Commute Platform |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 50cm | 152cm (5’0”) | 160m (5’3”) |
| 52cm | 160cm (5’3”) | 168cm (5’6”) |
| 54cm | 168cm (5’6”) | 175cm (5’9”) |
| 56cm | 175cm (5’9”) | 183cm (6’0”) |
| 58cm | 183cm (6’0”) | 188cm (6’2”) |
| 60cm | 188cm (6’2”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Difficulty viewing on mobile? Switch to landscape
| Frame Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
| A – Stack | 552 | 568 | 582 | 601 | 620 | 641 |
| B – Reach | 367 | 372 | 377 | 387 | 402 | 404 |
| C – Head Tube Angle | 71 | ° 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| D – Head Tube Length | 120 | 135 | 150 | 170 | 190 | 210 |
| E – Seat Tube Angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| F – Seat Tube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| G – Top Tube Effective | 520 | 535 | 550 | 565 | 585 | 600 |
| H – BB Height | 276 | 276 | 276 | 276 | 276 | 276 |
| I – BB Drop | 78 | 78 | 78 | 78 | 78 | 78 |
| J – Chainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| K – Wheelbase | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| L – Stand Over Height | 714 | 732 | 755 | 775 | 794 | 814 |
| M – Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 420 | 420 | 440 | 440 | 460 | 460 |
| Stem Length | 70 | 70 | 90 | 90 | 110 | 110 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
