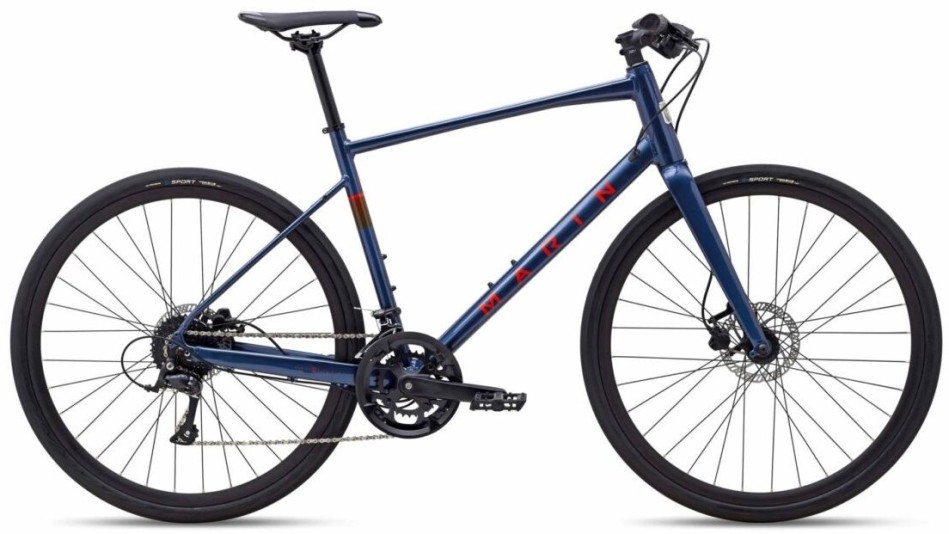

Marin Fairfax 3 2025 Hybrid Bike
The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Truvativ Descendant 35mm Stem Black
Starting at: £59.49
-
Madison Roam Men's Jacket Olive
Starting at: £62.99
-
Cane Creek Helm MkII Coil 29" 51mm Offset
RRP: £1,099.99
Our price £1,044.99
Related Products
Details
The Fairfax makes up our Fitness line, built for the flat-bar fitness road rider with the accessory mounts and gear range for future upgrades.
Fitness road riding
Commuting
Bike path riding
Specification
| Frame | Series 3 Fitness, 6061 Aluminum, 700C Wheels, Relieved Tapered Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts, Fender, Rack, and Kickstand Mounts |
| Fork | Marin Full Carbon w/ Tapered Steerer, Fender Eyelets |
| Rims | Marin Aluminum Double Wall, 19mm ID, 25mm Tall, Disc Specific |
| Rear Hub | Forged Aluminum Alloy, Disc, 32H |
| Front Hub | Forged Aluminum Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire, G-Sport, 700Cx35mm, Puncture Protection, Wire Bead |
| Rear Derailleur | Shimano Sora |
| Front Derailleur | MicroSHIFT R9 |
| Shift Levers | MicroSHIFT R9 2×9 Flat Bar Road Shifters |
| Crankset | Forged Alloy, 48/32T Chainrings, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC X9 |
| Cassette | Shimano, 9-Speed, 11-34T |
| Front Brake | Tektro HDM275 Hydraulic Disc, 160mm Rotor |
| Rear Brake | Tektro HDM275 Hydraulic Disc, 160mm Rotor |
| Brake Levers | Tektro Hydraulic |
| Handlebar | Marin Alloy Flat |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Ergonomic Locking |
| Headset | FSA, No.42/CB |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Fitness Plush |
| Pedals | Commute Platform |
| Maximum Rider Weight | 136kg Rider + 14kg Luggage = Total 150kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| X Small | 150cm (4’11”) | 155cm (5’1”) |
| Small | 155cm (5’1”) | 165cm (5’5”) |
| Medium | 165cm (5’5”) | 175cm (5’9”) |
| Large | 175cm (5’9”) | 185cm (6’1”) |
| X Large | 185cm (6’1”) | 191cm (6’3”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S | M | L | XL |
| 557 | 571.3 | 590 | 609 | 637.3 | |
| B -Reach | 385 | 400 | 420 | 440 | 455 |
| C – Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D – Head Tube Length | 140 | 155 | 175 | 195 | 225 |
| E – Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| F – Seat Tube Length | 380 | 430 | 480 | 520 | 550 |
| G – Top Tube Effective | 550 | 569.2 | 594.8 | 620.4 | 643.8 |
| H – BB Height | 283.5 | 283.5 | 283.5 | 283.5 | 283.5 |
| I – BB Drop | 70 | 70 | 70 | 70 | 70 |
| J – Chain Stay | 445 | 445 | 445 | 445 | 445 |
| K – Wheelbase | 1050.01 | 1070 | 1096.7 | 1123.4 | 1148.4 |
| L – Stand Over Height | 660.74 | 705.38 | 745.2 | 780.34 | 809.68 |
| M – Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Bar Width | 640 | 640 | 680 | 680 | 680 |
| Stem Length | 70 | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
