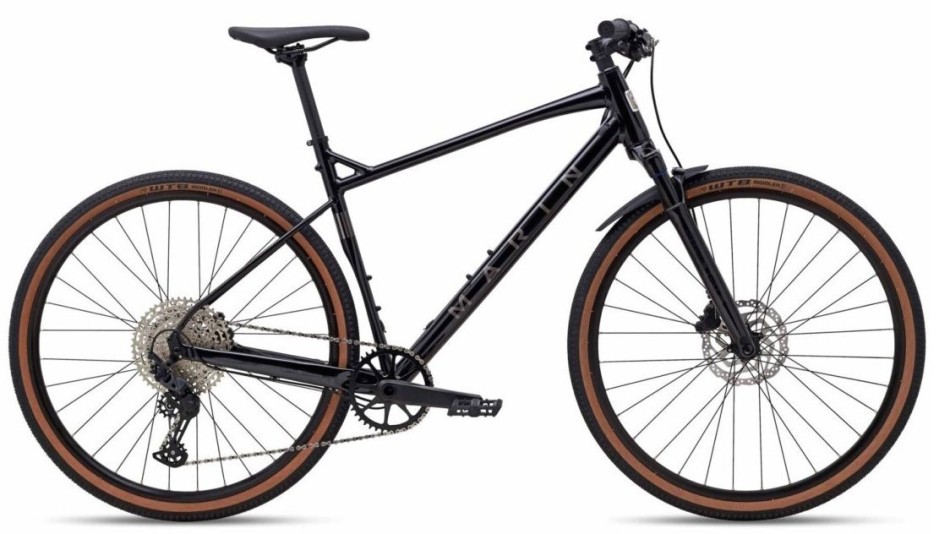

Marin DSX FS 2024 Gravel Bike
The DSX is the mountain biker’s gravel bike with familiar hand positioning
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Related Products
Details
The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX comes stock with 700×45mm tires, with room for 29×2.1”
knobbies.
Long distance mixed surface commuting
Gravel riding
Adventure on and off-road riding
Specification
| Frame | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142×12mm Thru-Axle |
| Fork | SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| Rims | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Rear Hub | Shimano Forged Aluminum, 142×12mm, Microspline, Disc, 32H |
| Front Hub | Forged Aluminum, 100×12mm, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tyres | WTB Riddler, 700Cx45mm |
| Rear Derailleur | Shimano SLX 12-Speed |
| Shifter | Shimano Deore 12-Speed |
| Crankset | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Bottom Bracket | Sealed Outboard Bearing |
| Chain | KMC X12 |
| Cassette | Shimano Deore 12-Speed, 10-51T |
| Front Brake | Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor |
| Rear Brake | Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor |
| Handlebar | Marin MiniRiser |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin MTB |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Seatpost | Marin Alloy |
| Saddle | Marin DSX |
| Pedals | Commute Platform |
| Extras | Bolt-On Thru-Axles F and R |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small | 160cm (5’3”) | 167cm (5’6”) |
| Medium | 167cm (5’6”) | 178cm (5’10”) |
| Large | 178cm (5’10”) | 188cm (6’2”) |
| X Large | 188cm (6’2”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| B – Reach | 380 | 405 | 420 | 435 |
| C – Headtube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| D – Headtube Length | 120 | 150 | 180 | 210 |
| E – Seattube Angle | 74° | 74° | 74° | 74° |
| F – Seattube Length | 430 | 480 | 520 | 558 |
| G – Toptube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
| H – BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| I – BB Drop | 80 | 80 | 80 | 80 |
| J – Chainstay | 425 | 425 | 425 | 425 |
| k – Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| L – Standover Height | 658.76 | 700.51 | 730.39 | 758.5 |
| M – Fork Offset | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 640 | 680 | 680 | 680 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Marin |
|---|---|
| RRP | No |
