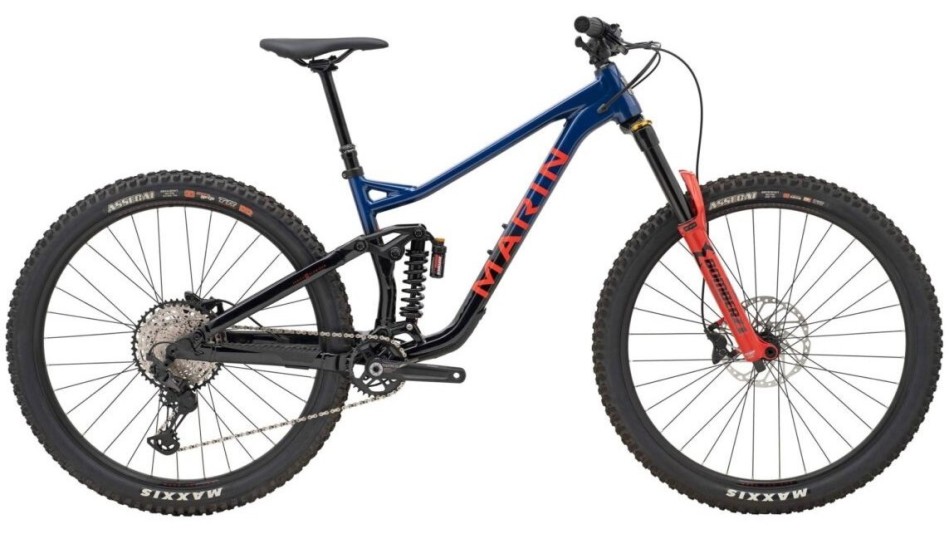

Marin Alpine Trail XR 2023 Enduro Bike
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Related Products
Details
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Big all-mountain days where travel and geometry matter most
Built for abuse and rowdy riding
Enduro-style riding and racing
Big bike, big wheels, big fun
Specification
| Frame | Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148×12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Front Suspension | Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110×15 Kabolt, 44mm Offset, Medium spring rate (68-82 kg rider weight) |
| Rear Suspension | Marzocchi CR Coil, Compression and Rebound Adjustment, 205×65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Rear Hub | Shimano HB-MT510B, 148×12mm, Centerlock, Microspline Freehub Body |
| Front Hub | Shimano HF-MT410B, 110×15mm, Centerlock |
| Spokes | 14g Black Stainless Steel |
| Tyres | Maxxis Assegai 29×2.5”, MAXX TERRA, EXO+, Tubeless Compatible |
| Rear Derailleur | Shimano XT 12-Speed, SGS |
| Shifter | Shimano SLX 12-Speed, I-Spec EV |
| Crankset | FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Bottom Bracket | MEGAEVO BB, 73mm BSA Threaded |
| Chain | KMC X-12 Silver and Black |
| Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Front Brake | Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor |
| Rear Brake | Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor |
| Brake Levers | Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible |
| Handlebar | Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Stem | Marin CNC Stem, 35mm Length, 35mm Bar Bore |
| Grips | Marin Grizzy Lock On |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8” × 1 1/2” |
| Seatpost | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Not included |
| Extras | Bolt-On Thru-Axle |
| Extras | Downtube Protector |
| Structural Weight | 138Kg – The maximum structural weight consists of the bike, rider and load. |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small | 160cm (5’3”) | 168cm (5’6”) |
| Medium | 168cm (5’6”) | 178cm (5’10”) |
| Large | 178cm (5’10”) | 188cm (6’2”) |
| X Large | 188cm (6’2”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Stack | 619 | 628 | 632 | 643 |
| B – Reach | 430 | 455 | 480 | 515 |
| C – Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| D – Head Tube Length | 100 | 110 | 115 | 130 |
| E – Seat Tube Angle | 78° | 78° | 78° | 78° |
| F – Seat Tube Length | 390 | 400 | 425 | 430 |
| G – Top Tube Effective | 561.7 | 589 | 615 | 652 |
| H – BB Height | 342 | 342 | 342 | 342 |
| I – BB Drop | 35 | 35 | 35 | 35 |
| J – Chain Stay | 430 | 430 | 430 | 430 |
| K – Wheelbase | 1199 | 1229 | 1256 | 1297 |
| L – Standover Height | 690 | 694 | 695 | 698 |
| M – Fork Offset | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 50 | 50 | 50 | 50 |
| Crank Length | 170 | 170 | 170 | 170 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
