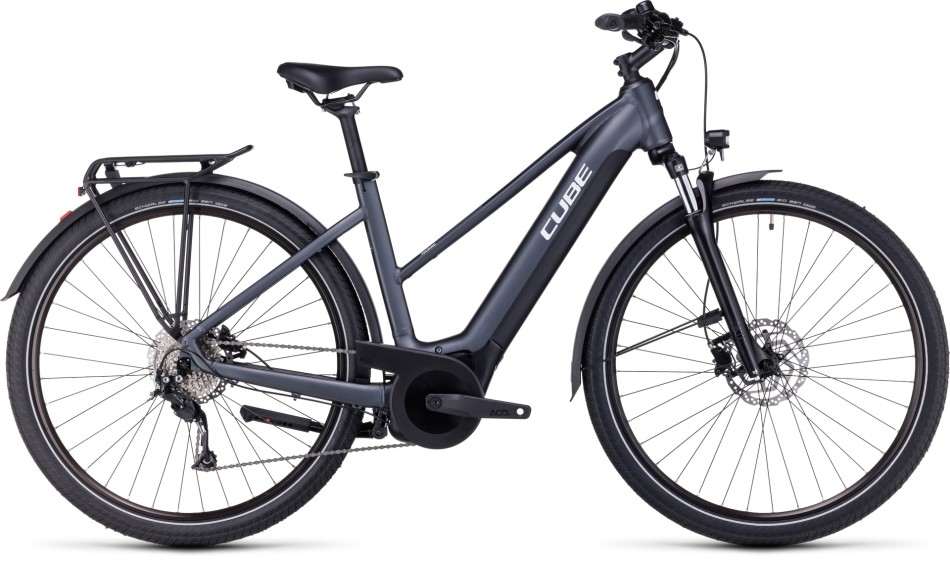

Cube Touring Hybrid One 625 2024 Trapeze Grey/White eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

We made our Touring Hybrid to be versatile, easy to live with and comfortable.

The powerful Bosch Performance motor with Bosch Smart System and PowerTube battery are all so neatly integrated into the design, you’ll barely notice they’re there – apart from the extra help at the pedals, of course. Revised Efficient Comfort Geometry centres around a 63mm travel suspension fork for comfort and control, even on rough roads.

The IC 3.0 integrated carrier is full of neat design touches to make load carrying simple, and the seat clamp even has a hidden tool in its lever.

Add the new ACID chain guard, kickstand and full-length mudguards and you’ve got everything you need. And, with a choice of classic Men’s, Trapeze or Easy Entry frame designs, there’ll be a style and size that’s perfect for you.

One bike, many reasons: the Touring Hybrid One’s wide choice of frame styles and sizes means there’s one that’s tailor-made just for you.

With comfortable handling, a powerful Bosch Performance drive and a full complement of practical accessories, it’s the bike that’ll slot right into your busy life.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Full Integrated Battery, 1.5 Headtube, Semi Integrated Carrier
Fork	SR Suntour NVX30 Coil, 63mm
Drive Unit	Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	N/A
Battery	Bosch PowerTube 625Wh Smart System (battery weight 3kg)
Charger	Bosch 2A Smart System (4.6h 50% – 9.3h 100%)
Brake System	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano RD-M3100-SGS, 9-Speed
Shifter	Shimano SL-M3100-R, Rapidfire-Plus
Crankset	ACID E-Crank, 40T, 170mm
Cassette	Shimano CS-HG201, 11-36T
Chain	KMC X9
Front Hub	Shimano HB-TX505, QR, Centerlock
Rear Hub	Shimano FH-TX505, QR, Centerlock
Rims	Rodi Blackrock 23, 36H, Disc, Tubeless Ready
Tyres	Schwalbe Big Ben, Performance, K-Guard, 55-622
Stem	CUBE Performance Stem Pro, 31.8mm
Handlebar	CUBE Comfort Trail Bar, 700mm
Grips	ACID Travel Comfort
Seat Post	CUBE Performance Post, 30.9mm
Saddle	Natural Fit Sequence Comfort
Headset	ACROS AZF-1030, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Pedals	ACID PP Trekking
Front Light	CUBE Shiny 50 Lux, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguards	ACID 65 BB-Mount
Bell	Easy Bell
Carrier	ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Weight	25.7 kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46cm	153cm (5’0”)	163cm (5’4”)
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	46cm	50cm	54cm
Seat Tube	440	480	520
Top Tube Horizontal	590	595	606
Seat Angle	73	73	73
Head Tube Angle	69	69.5	69.5
Chainstays	508.5	508.5	508.5
Head Tube	125	135	155
Wheelbase	1158.1	1159	1172.4
BB-Height to Hub	75	75	75
Reach	394.4	396.5	403
Stack	626	637.7	656.4
Length Seat Post	300	300	300
Diameter Seatpost	30.9	30.9	30.9
Crank Length	175	175	175
Diameter Tyre Maximum	746	746	746
Width Tyre Maximum	56	56	56
Stem Length	65	65	90
Handlebar Width	700	700	700

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
