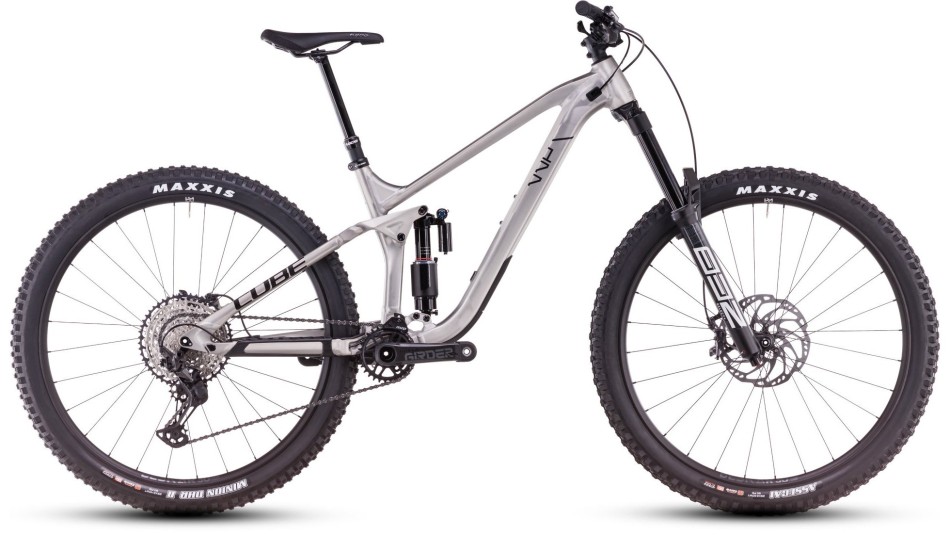

Cube Stereo One77 Race 29 2025 Raw/Black Enduro Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Big wheels, big travel, big fun. The Stereo ONE77’s frame is based on our proven four-bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling in a huge range of trail conditions.

With a flip chip and two mounting points for air and coil, the rear suspension setup is designed to be progressive – and there are angle adjustment inserts so you can tweak the geometry to suit your own preference. The frame is equally happy with an air or coil shock, and covered bearings and internally routed cables mean you can spend more time shredding and less time wrenching. Simply put, it redefines what a big-travel, big-wheeled bike can do.

People who claim you can’t have it all have clearly never seen the Stereo ONE77 Race. Its precise handling and boulder-swallowing precision starts with the plush, accurate RockShox Zeb Select+ fork and Vivid Select+ shock. Mountain-flattening ability is added with Shimano’s reliable XT 1×12 gears and a Praxis Girder HD Carbon crank.

Matching four piston Shimano XT hydraulic disc brakes with Newmen Beskar 20 wheels wrapped with grippy Maxxis Assegai and Minion DHR II tyres ensure you’re always in complete control. And there’s a remote dropper post too, so you can really show the trails who’s boss.

Specification

frame	HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH, 170mm travel
Suspension fork	RockShox ZEB Select+ Charger 3.1 RC2, Tapered, 15×110mm, 170mm
shock	RockShox Vivid Select+, 230×65mm, Open Compression, Rebound & Hydr. Bottom Out Adjust, 2-Pos. Lever
shock hardware	Top: 40×8mm, Bottom: 28×8mm (20×8mm Coil option)
brake system	Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
rear derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
shifter	Shimano XT SL-M8100-IR, Direct Attach
bottom bracket	Praxis PF92, 92mm Pressfit
crankset	PRAXIS Girder HD Carbon, 30T
cassette	Shimano SLX CS-M7100, 10-51T
chain	Shimano CN-M6100
chain guide	MRP 1X Chain Guide
headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for Angle Adjustment
Stem	Newmen Evolution 318.4, 31.8mm
handlebar	Newmen Evolution SL 318.40, 800mm
grips	SDG Thrice
wheelset	Newmen Beskar 30 base/base, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
front tyre	Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT
rear tyre	Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
saddle	SDG Bel Air V3 Lux Alloy
seat post	SDG Tellis V2, Handlebar Lever, Internal Cable Routing, 31.6mm
weight	15.9kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Medium	171cm (5’6”)	177cm (5’9”)
Large	177cm (5’9”)	183cm (6’0”)
X Large	183cm (6’0”)	189cm (6’2”)
XX Large	189cm (6’2”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	M	L	XL	XXL
Seat Tube	420 – 420	420 – 420	470 – 470	470 – 470
Top Tube Horizontal	583.22 – 584.77	603.7 – 605.27	626.92 – 628.58	656.38 – 655.2
Seat Angle	76.71 – 76.5	76.71 – 76.5	76.7 – 76.5	76.7 – 76.5
Head Tube Angle	63.8 – 64.4	63.8 – 64.4	63.8 – 64.4	63.8 – 64.4
Chainstays	434.5 – 434.5	434.5 – 434.5	434.5 – 434.5	434.5 – 434.5
Head Tube	103 – 103	104.5 – 104.5	114.5 – 114.5	134.5 – 134.5
Wheelbase	1223.42 – 1215.56	1244.03 – 1236.21	1268.41 – 1260.56	1297.22 – 1289.26
BB-Height to Hub	26.6 – 25	26.57 – 25	26.54 – 25	25
Reach	445.99 – 444.33	471.94 – 464.33	485.9 – 484.36	505.88 – 504.42
Stack	625.52 – 627.49	626.83 – 628.84	635.78 – 637.86	655.71 – 655.89
Seatpost Length	480	480	480	480
Seatpost Diameter	31.6	31.6	31.6	31.6
Stem Angle	6	6	6	6
Crank Length	170	170	170	170
Stem Length	40	40	50	50
Handlebar Width	780	780	780	780
Seatpost Drop	150	150	150	150

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 5
Intended Use	Extreme sports
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Extreme jumps followed by landings on sloping terrain or descents on unpaved roads at speeds of more than 40 km/h or a combination thereof
Recommended riding skills	Extreme technical skills, practice and bike control required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2

Additional Information

Manufacturer	Cube
RRP	No
