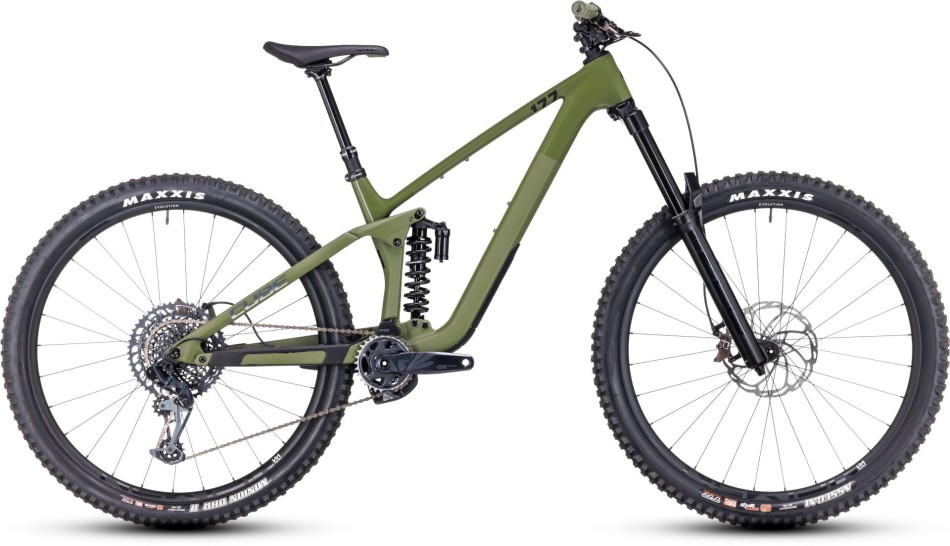

Cube Stereo One77 C:68X TM 2023 Olive/Chrome Enduro Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

It’s tough to improve on perfection, but that’s what we’ve done with the new Stereo ONE77 C:68X frame. First up, it’s light, at just 2.3kg. That’s a difference you can feel on the climbs and descents.

There’s a flip chip and two mounting points for air and coil shocks, giving a range of options for progression and shock performance. An angle adjustment insert means you can switch between 63.8 and 64.4 head angles and the bottom bracket is threaded for maximum versatility and durability.

We deliberately didn’t include a frame storage compartment, because we wanted to keep weight down and strength up. But there is a mounting point for a custom trail tool under the down tube. Simply put, you’re all set. Bring it on…

The Stereo ONE77 C:68X TM has got it all covered. With a lightweight frame built from our premium C:68X® carbon and wide-ranging Sram GX Eagle 1×12 gears, it’s got the chops to make light work of climbs.

Then again, with a RockShox Zeb Select+ fork and RockShox Super Deluxe Coil shock, Hayes Dominion hydraulic disc brakes and Maxis Assegai and Minion DHR II tyres on Newmen Evolution wheels, it’s also more than capable of swallowing tough descents whole. Have it your way…

Specification

Frame	C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™, 170mm travel
Wheel Size	29”
Fork	RockShox ZEB Select+ RC2, Tapered, 15×110mm, 170mm
Rear Shock	RockShox Super Deluxe Select+ Coil, 230×65mm
Shock Hardware	Top: 40×8mm, Bottom: 20×8mm
Brake System	Hayes Dominion A4, Hydr. Disc Brake (203/180)
Rear Derailleur	Sram GX Eagle™, 12-Speed
Shifter	Sram GX Eagle™ Trigger
Bottom Bracket	Sram DUB MTB, 73mm BSA
Crankset	Sram GX Eagle™ Boost DUB, 30T
Chain Guide	MRP SXg Chain Guide
Cassette	Sram XG-1275 Eagle™, 10-52T
Chain	Sram SX Eagle™
Handlebar	Race Face Turbine R 35, 800mm
Stem	Race Face Aeffect R 35
Grips	SDG Thrice
Headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for 0.6° Angle Adjustment
Wheelset	Newmen Evolution SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Rear Tyre	Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Seat Post	SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6mm
Saddle	SDG Bel Air V3 Lux Alloy
Pedals	N/A
Weight	15.1kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Medium	171cm (5’6”)	177cm (5’9”)
Large	177cm (5’9”)	183cm (6’0”)
X Large	183cm (6’0”)	189cm (6’2”)
XX Large	189cm (6’2”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	M	L	XL	XXL
Seat Tube	420 – 420	420 – 420	470 – 470	470 – 470
Top Tube Horizontal	583.22 – 584.77	603.7 – 605.27	626.92 – 628.58	656.38 – 655.2
Seat Angle	76.71 – 76.5	76.71 – 76.5	76.7 – 76.5	76.7 – 76.5
Head Tube Angle	63.8 – 64.4	63.8 – 64.4	63.8 – 64.4	63.8 – 64.4
Chainstays	434.5 – 434.5	434.5 – 434.5	434.5 – 434.5	434.5 – 434.5
Head Tube	103 – 103	104.5 – 104.5	114.5 – 114.5	134.5 – 134.5
Wheelbase	1223.42 – 1215.56	1244.03 – 1236.21	1268.41 – 1260.56	1297.22 – 1289.26
BB-Height to Hub	26.6 – 25	26.57 – 25	26.54 – 25	25
Reach	445.99 – 444.33	471.94 – 464.33	485.9 – 484.36	505.88 – 504.42
Stack	625.52 – 627.49	626.83 – 628.84	635.78 – 637.86	655.71 – 655.89
Seatpost Length	480	480	480	480
Seatpost Diameter	31.6	31.6	31.6	31.6
Stem Angle	6	6	6	6
Crank Length	170	170	170	170
Stem Length	40	40	50	50
Handlebar Width	780	780	780	780
Seatpost Drop	150	150	150	150

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
