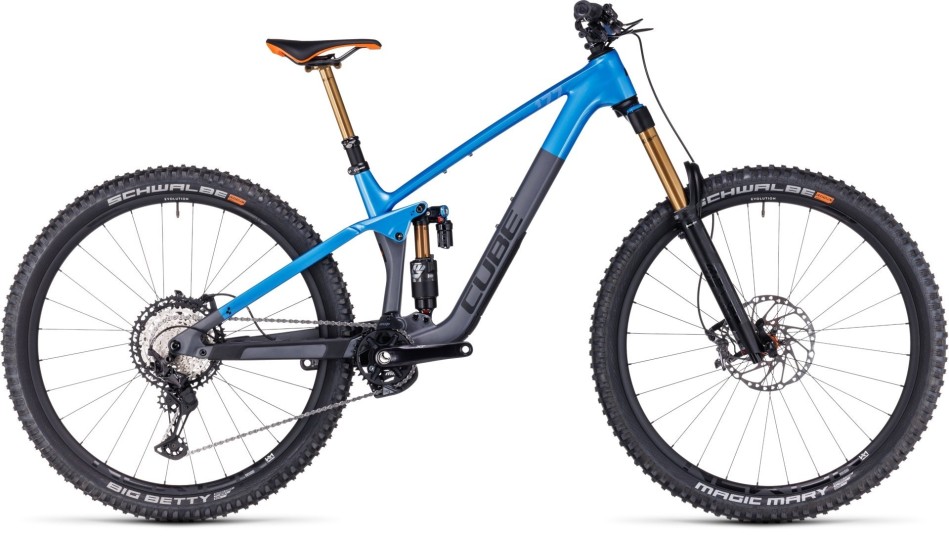

Cube Stereo One77 C:68X SLX 2023 ActionTeam Enduro Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

It’s tough to improve on perfection, but that’s what we’ve done with the new Stereo ONE77 C:68X frame. First up, it’s light, at just 2.3kg. That’s a difference you can feel on the climbs and descents.

There’s a flip chip and two mounting points for air and coil shocks, giving a range of options for progression and shock performance. An angle adjustment insert means you can switch between 63.8 and 64.4 head angles and the bottom bracket is threaded for maximum versatility and durability.

We deliberately didn’t include a frame storage compartment, because we wanted to keep weight down and strength up. But there is a mounting point for a custom trail tool under the down tube. Simply put, you’re all set. Bring it on…

Tricky mountain singletrack demands a bike that’s up to the task. Luckily, the Stereo ONE77 C:68X SLX pulls no punches. Its newly developed premium C:68X® carbon frame is just the start. We chose a Fox 38 Factory Grip 2 fork and Float X2 Factory shock for their ability to shrug off obstacles both large and small.

Then we fitted Shimano’s ultra-reliable XT 1×12 gears, for their smooth shifting and huge range. Shimano XT hydraulic disc brakes serve up prodigious stopping power, and Schwalbe Magic Mary and Big Betty 2.4in tyres on Newmen Evolution wheels complete the package.

Specification

Frame	C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™, 170mm travel
Wheel Size	29”
Fork	Fox 38 Float Factory FIT GRIP2, Tapered, 15×110mm, 170mm, Kashima Coated
Rear Shock	Fox Float X2 Factory, 230×65mm, High/Low Speed Rebound & Compression w/ 2-Pos. Lever, Kashima Coated
Shock Hardware	Top: 40×8mm, Bottom: 20×8mm
Brake System	Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano XT SL-M8100-IR, Direct Attach
Bottom Bracket	Shimano SM-BB52 BSA
Crankset	Shimano XT FC-M8100, 32T, Boost
Chain Guide	MRP SXg Chain Guide
Cassette	Shimano XT CS-M8100, 10-51T
Chain	Shimano CN-M6100
Handlebar	Race Face Next R 35 Carbon, 800mm
Stem	Race Face Turbine R 35
Grips	ACID Disrupt, Soft Compound
Headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for 0.6° Angle Adjustment
Wheelset	Newmen Evolution SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear Tyre	Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4
Seat Post	Fox Transfer Factory 31.6mm, Kashima coated
Saddle	Natural Fit Nuance SLT Carbon
Pedals	N/A
Weight	14.7kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Medium	171cm (5’6”)	177cm (5’9”)
Large	177cm (5’9”)	183cm (6’0”)
X Large	183cm (6’0”)	189cm (6’2”)
XX Large	189cm (6’2”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	M	L	XL	XXL
Seat Tube	420 – 420	420 – 420	470 – 470	470 – 470
Top Tube Horizontal	583.22 – 584.77	603.7 – 605.27	626.92 – 628.58	656.38 – 655.2
Seat Angle	76.71 – 76.5	76.71 – 76.5	76.7 – 76.5	76.7 – 76.5
Head Tube Angle	63.8 – 64.4	63.8 – 64.4	63.8 – 64.4	63.8 – 64.4
Chainstays	434.5 – 434.5	434.5 – 434.5	434.5 – 434.5	434.5 – 434.5
Head Tube	103 – 103	104.5 – 104.5	114.5 – 114.5	134.5 – 134.5
Wheelbase	1223.42 – 1215.56	1244.03 – 1236.21	1268.41 – 1260.56	1297.22 – 1289.26
BB-Height to Hub	26.6 – 25	26.57 – 25	26.54 – 25	25
Reach	445.99 – 444.33	471.94 – 464.33	485.9 – 484.36	505.88 – 504.42
Stack	625.52 – 627.49	626.83 – 628.84	635.78 – 637.86	655.71 – 655.89
Seatpost Length	480	480	480	480
Seatpost Diameter	31.6	31.6	31.6	31.6
Stem Angle	6	6	6	6
Crank Length	170	170	170	170
Stem Length	40	40	50	50
Handlebar Width	780	780	780	780
Seatpost Drop	150	150	150	150

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
