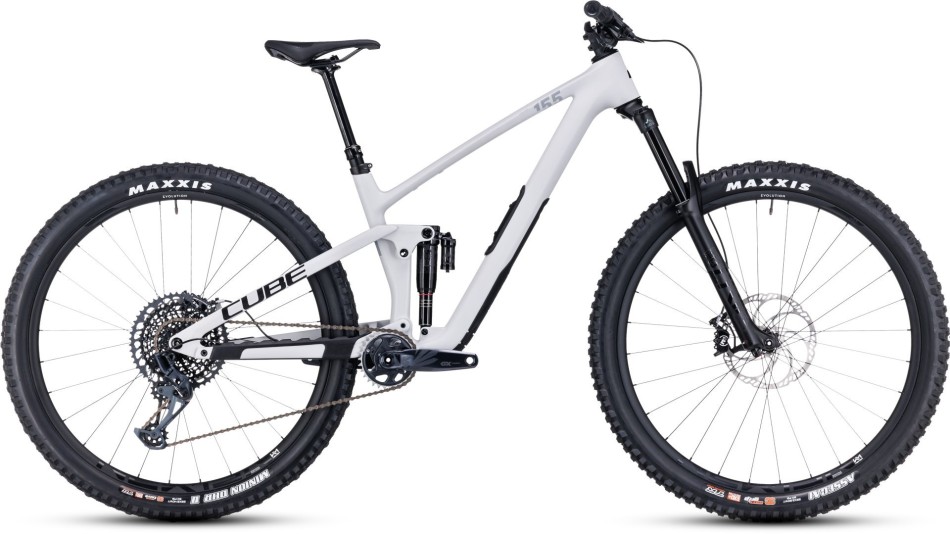

Cube Stereo One55 C:62 Race 2023 Grey/Grey eMTB

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Elegant form or rugged function? With the new Stereo ONE55 C:62 you don’t have to choose. The clean lines of the Advanced Twin Mold C:62® frame are the first thing you’ll notice, but as always the devil is in the detail. Built-in angle adjustment inserts give a choice of head tube angles, so you can tweak the performance to your liking.

The threaded bottom bracket shell is tough and practical, complete with ISCG 05 chain guide mount. There’s built-in down tube storage with room for a ACID multitool and lots else besides. With 155mm of travel at the rear and a 160mm fork up front, there’s simply no better way to take on tough mountain trails and come out on top.

This is the one: a bike that’s as rock-solid dependable descending an Alp at speed as it is agile and sure-footed picking its way up a long climb. How did we do that? Well, there’s the new C:62® carbon frame with a headset with angle adjustment inserts, for a start. Then we chose a RockShox Lyrik Select+ fork and Super Deluxe Select+ shock for their bump-swallowing prowess.

Newmen Evolution wheels, Maxxis tyres and Magura MT5 hydraulic disc brakes keep you firmly in control. And Sram’s GX Eagle 1×12 gears give you the range you need to make light work of any mountain route. It’s the complete package.

Specification

Frame	C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
Suspension Fork	RockShox Lyrik Select+, Tapered, 15×110mm, 160mm
Shock	RockShox Super Deluxe Select+ DebonAir, 205×60mm, Low Speed Compression & Rebound Adjust, Lockout
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 22×8mm
Brake System	Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/180)
Rear Derailleur	Sram GX Eagle™, 12-Speed
Shifter	Sram NX Eagle™ Trigger
Bottom Bracket	Sram DUB MTB, 73mm BSA
Crankset	Sram GX Eagle™ Boost DUB, 30T
Cassette	Sram XG-1275 Eagle™, 10-52T
Chain	Sram SX Eagle™
Chain Guide	MRP 1X Chain Guide
Headset	ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem	Race Face Aeffect R 35
Handlebar	Race Face Chester 35, 780mm
Grips	ACID Disrupt, Soft Compound
Wheelset	Newmen Evolution SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Rear Tyre	Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Saddle	Natural Fit Venec
Seat Post	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Extras	ACID Downtube Storage Bag & HUSK24 Multi Tool
Weight	14.1kg
Maximum Rider/Bike Weight	135kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	158cm (5’3”)	168cm (5’6”)
Medium	168cm (5’6”)	175cm (5’9”)
Large	175cm (5’9”)	183cm (6’0”)
X Large	183cm (6’0”)	191cm (6’3”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Slack/Moderate	S	M	L	XL
Seat tube	370	405	420	470
Top Tube Horizontal	565 / 567	591 / 592	619 / 621	650 / 652
Seat angle	76.7° / 76.5°	76.5°	76.7° / 76.5°	76.7° / 76.5°
Head tube angle	64.2° / 64.8°	64.2° / 64.8°	64.2° / 64.8°	64.2° / 64.8°
Chainstays	438	438 438	438
Head tube	100	103	113	133
Wheelbase	1196 / 1188	1222 / 1215	1252 / 1244	1285 / 1277
BB-Height to Hub	36 / 34	36 / 34	36 / 34	36 / 34
Reach	427 / 425	452 / 450	477 / 475	502 / 500
Stack	623 / 625	625 / 627	634 / 636	652 / 654
Seatpost Length	363.5	418.3	475.1	475.1
Seatpost Diameter	30.9	30.9	30.9	30.9
Crank length	170	170	170	170
Max Tyre Diameter	757	757	757	757
Max Tyre Width	64	64	64	64
Stem length	40	50	50	50
Handlebar Width	760	800	800	800
Stroke Drop	125	150	175	175
Rear Suspension Travel	155	155	155	155

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
