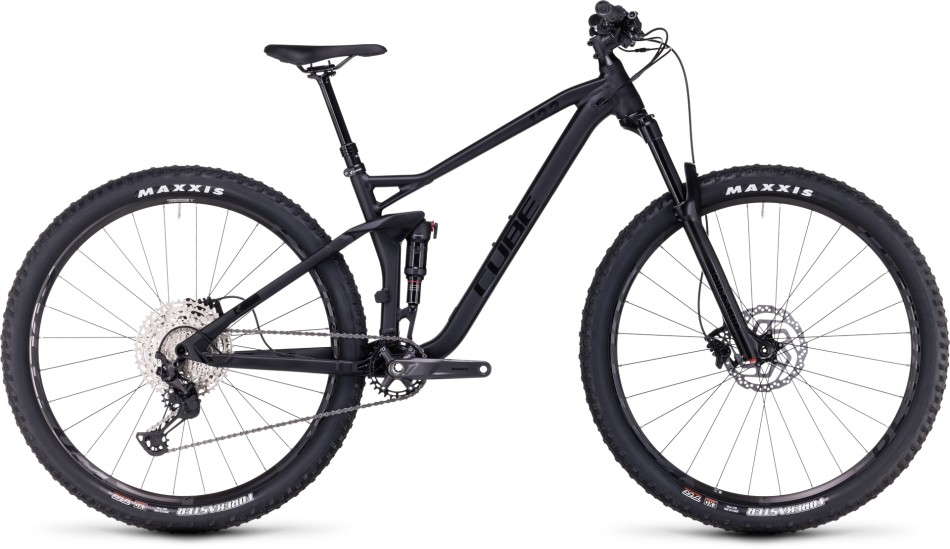

Cube Stereo One22 Race 2024 Black Ano Trail Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength.

The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it’s all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times.

There’s even a SizeSplit XS option with 27.5in wheels for riders who are shorter in stature, but don’t want to compromise on performance.

Even racers know that performance can be improved with comfort. That’s why, with the Stereo One22 Race, we’ve developed a trail-taming full-suspension bike with comfort and control at its heart.

Proven cube kinematics and carefully selected components give you everything you need to ride further, faster and better.

Specification

Frame	HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
Wheel Size	27.5” X Small – 29” Small, Medium, Large
Fork	RockShox Recon Gold RL Air, Tapered, 15×110mm, 130mm
Rear Shock	RockShox Deluxe Select+, 190×45mm, Rebound Adjust, Lockout
Shock Hardware	Top: 40×8mm, Bottom: 22×8mm
Brake System	Shimano BR-MT500, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100, Rapidfire-Plus
Bottom Bracket	Shimano BB-MT500PA, 92mm Pressfit
Crankset	Shimano FC-MT511, Boost, 30T
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Handlebar	Newmen Evolution SL 318.25, 760mm
Stem	Newmen Evolution 318.4, 31.8mm
Grips	ACID React Pro
Headset	VP Tapered, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Zero-Stack 1 1/2” (OD 56mm)
Wheelset	Fulcrum Red 77, 28/28 Spokes, 15×110mm / 12×148mm, Tubeless Ready
Tyres	Maxxis Forekaster, EXO, Tubeless Ready, 2.35
Seat Post	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Saddle	Natural Fit Venec Lite
Pedals	N/A
Weight	14.5kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS 27.5	S 29	M 29	L 29	XL 29
Seat Tube	350	370	420	470	520
Top Tube Horizontal	547	569.9	590.8	614	640.3
Seat angle	75.3	75.3	75.3	75.3	75.3
Head Tube Angle	67.5	67	67	67	67
Chainstays	417	435.5	435.5	435.5	435.5
Head Tube	100	100	103	113	133
Wheelbase	1096	1145	1166	1190	1218
Reach	405	420	440	460	480
Stack	567	604	606	615	634
Seatpost Length	361	403	425	425	425
Seatpost Diameter	31.6	31.6	31.6	31.6	31.6
Stem Angle	6	6	6	6	6
Crank Length	170	170	175	175	175
Stem Length	40	50	60	60	70
Handlebar Width	760	760	760	760	760
Seatpost Drop	100	120	130	130	130

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
