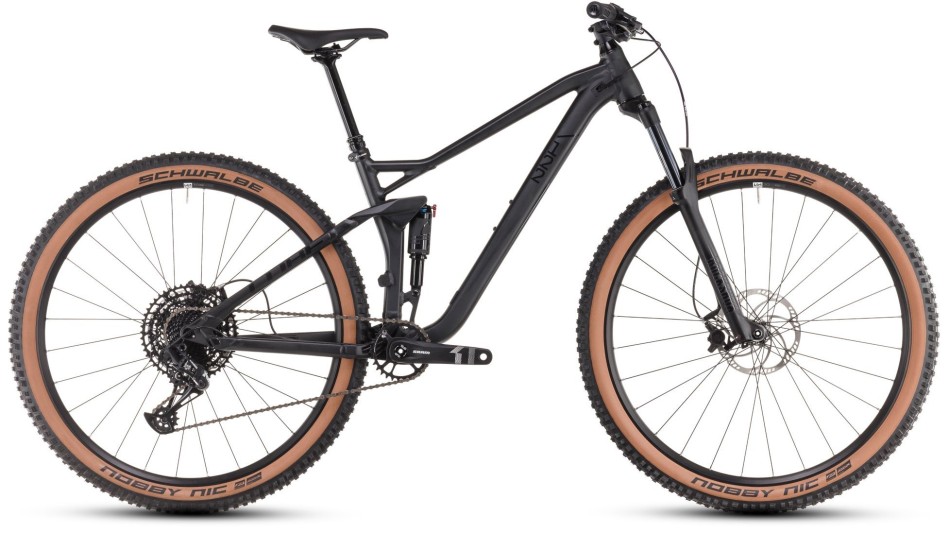

Cube Stereo One22 Pro 2025 Metalblack/Black Trail Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength.

The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it’s all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. There’s even a Size Split XS option with 27.5in wheels for riders who are shorter in stature, but don’t want to compromise on performance.

The Stereo ONE22 Pro sets the baseline for comfort, control and agility on the trail. There’s a RockShox Judy Silver air fork and Manitou Radium Expert air shock for bump-smoothing duties.

Powerful Magura MT Thirty hydraulic disc brakes harness the tenacious grip of Schwalbe 2.4in tyres on Newmen Performance 30 wheels to keep your speed in check. And Sram’s NX Eagle 1×12 gears’ huge range and ease of use put the right ratio for any trail just a click or two away. It’s got the trail smarts to take you further. Are you up for it?

Specification

Frame	HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
Fork	RockShox Judy Silver TK Air, Tapered, 15×110mm, 130mm
Rear Shock	Manitou Radium Expert RL, 190×45mm, Rebound Adjust, Lockout
Shock Hardware	Top: 40×8mm, Bottom: 22.2×8mm
Headset	VP Tapered, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Zero-Stack 1 1/2” (OD 56mm)
Stem	Newmen Evolution 318.4, 31.8mm
Handlebar	CUBE Rise Trail Bar, 760mm
Brake System	Magura MT Thirty, Hydr. Disc Brake (180/180)
Shifters	Magura MT Thirty, Hydr. Disc Brake (180/180)
Shifters/Brakelevers	Sram DUB MTB, 92mm Pressfit
Rear Derailleur	Sram NX Eagle™, 12-Speed
Bottom Bracket	Sram DUB MTB, 92mm Pressfit
Crankset	Sram X1 1000 Eagle™ DUB 30T, Boost
Chainring Size	30T
Cassette	Sram PG-1210 Eagle™, 11-50T
Chain	Sram SX Eagle™
Wheelset	Newmen Performance 30 light/base, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Tyres	Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4
Saddle	ACID Nuance Lite
Seatpost	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost Clamp	CUBE Screwlock, 34.9mm
Quoted Weight	14.9 kg
Max System Weight	115 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS	S	M	L	XL
Seat Tube	350	370	420	470	520
Top Tube Horizontal	547	570	591	614	640
Seat Angle	75.3°	75.3°	75.3°	75.3°	75.3°
Head Tube Angle	67.5°	67°	67°	67°	67°
Chainstays	417	436	436	436	436
Head Tube	100	100	103	113	133
Wheelbase	1096	1145	1166	1190	1218
BB Height	20	-40	-40	-40	-40
Reach	405	420	440	460	480
Stack	567	604	606	615	634
Seatpost Length	361	403	462	462	510
Seatpost Diameter	31.6	31.6	31.6	31.6	31.6
Stem Angle	6°	6°	6°	6°	6°
Crank Length	170	170	170	170	170
Max Tyre Diameter	718	758	758	758	758
Max Tyre Width	64	64	64	64	64
Stem Length	40	50	50	60	70
Handlebar Width	760	760	760	760	760
Seatpost Drop	100	120	150	150	170
Rear Suspension Travel	120	120	120	120	120

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 4
Intended Use	Sport and competition riding with very challenging technical demands of the trails
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm
Recommended riding skills	Technical skills, practice and bike control required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2
