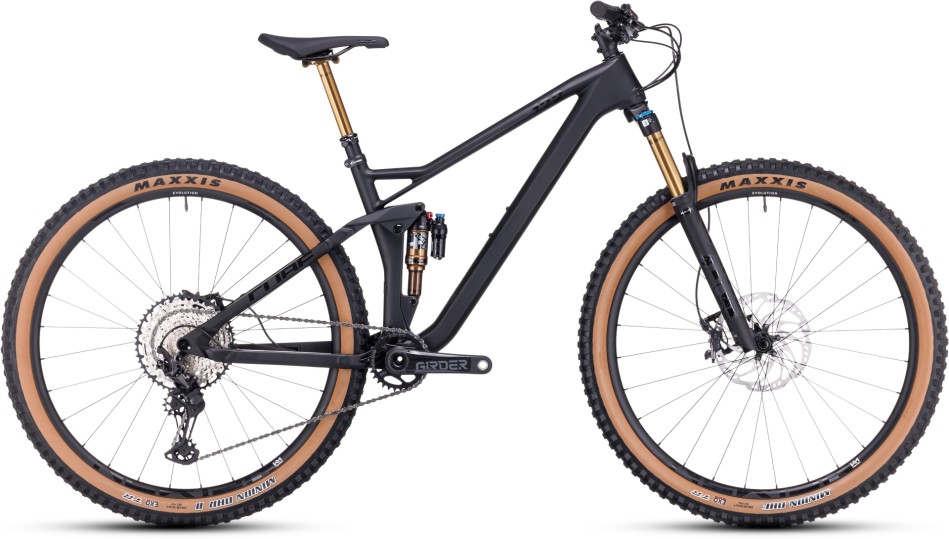

Cube Stereo One22 EX 2024 Carbon/Black Trail Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

The Stereo ONE22 sets the bar for comfortable trail bikes pretty high. The Stereo ONE22 HPC moves it higher still by incorporating a light, stiff and elegant carbon front triangle for reduced weight and even better handling.

The short rocker, covered pivot bearings and efficient kinematics deliver superb traction, comfort and control. There’s a tapered head tube and Boost 148 rear axle for precision handling. And our Agile Trail Geometry always has your back, so you can keep the rubber side down and the fun factor up.

A great day out on the trails is the best way to put the smile back on your face. With its sophisticated frame design, comfortable suspension, agile trail geometry and components chosen for their superior performance and reliability, the Stereo One22 HPC EX is a smile generator par excellence.

Specification

Frame	HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH
Wheel Size	29”
Fork	Fox 34 Float Factory FIT GRIP2, Tapered, 15×110mm, 130mm, Kashima Coated
Rear Shock	Fox Float X Factory, 190×45mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Shock Hardware	Top: 40×8mm, Bottom: 22×8mm
Brake System	Shimano XT BR-M8120/M8100, Hydr. Disc Brake (203/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano XT SL-M8100-IR, Direct Attach
Bottom Bracket	Praxis PF92, 92mm Pressfit
Crankset	Praxis Girder Carbon, Boost, 30T, sealed Enduro Bearings
Cassette	Shimano SLX CS-M7100, 10-51T
Chain	Shimano CN-M6100
Handlebar	Newmen Evolution SL 318.25, 760mm
Stem	Newmen Evolution 318.4, 31.8mm
Grips	SDG Thrice
Headset	VP Tapered, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Zero-Stack 1 1/2” (OD 56mm)
Wheelset	Newmen Evolution SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Maxxis Minion DHF, MaxxTerra/EXO, Tubeless Ready, 2.5 WT
Rear Tyre	Maxxis Minion DHR II, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
Seat Post	Fox Transfer Factory 31.6mm, Kashima Coated
Saddle	SDG Bel Air V3 Lux Alloy
Pedals	N/A
Weight	13.3kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 29	M 29	L 29	XL 29
Seat Tube	370	420	470	520
Top Tube Horizontal	569.9	590.8	614	640.3
Seat angle	75.3	75.3	75.3	75.3
Head Tube Angle	67	67	67	67
Chainstays	435.5	435.5	435.5	435.5
Head Tube	100	103	113	133
Wheelbase	1145	1166	1190	1218
Reach	420	440	460	480
Stack	604	606	615	634
Seatpost Length	403	425	425	425
Seatpost Diameter	31.6	31.6	31.6	31.6
Stem Angle	6	6	6	6
Crank Length	170	175	175	175
Stem Length	50	60	60	70
Handlebar Width		760	760	760
Seatpost Drop	120	130	130	130

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
