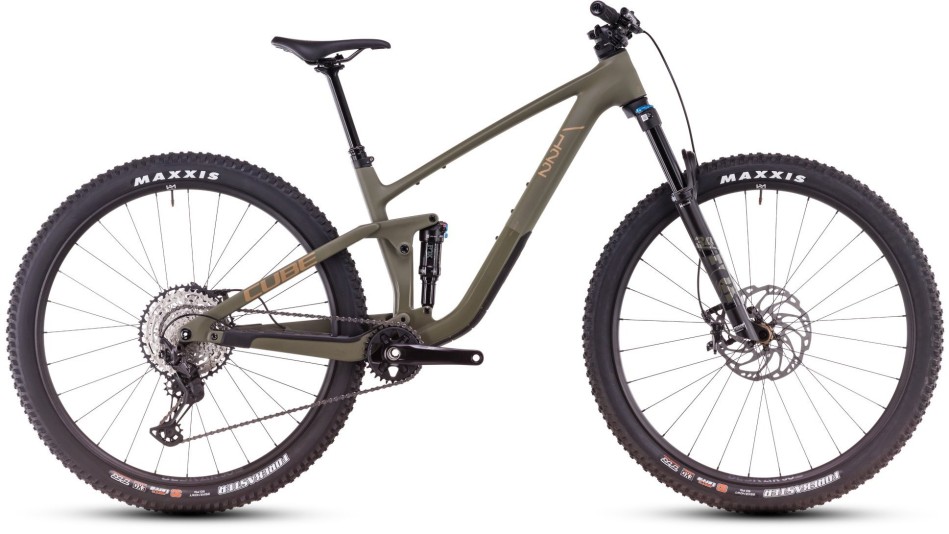

Cube Stereo One22 C:62 TM 29 2025 Olive/Gold Trail Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

When you have something great already, the trick is to refine it – and that’s exactly what we’ve done here. The Stereo ONE22 C:62 frame takes our renowned mid-travel suspension concept and reimagines it with our Advanced Twin Mold C:62® carbon construction. There’s an angle-adjustable headset, so you can tweak the Agile Trail Geometry to suit your riding style.

A pair of ISCG tabs makes it easy to fit a chain device, while Internal Cable Routing complements the frame’s organic appearance. And, with the UDH interface, you can look forward to long-lasting, ultra-reliable gear shifting. It’s got it all covered.

A great trail bike is only as good as its suspension components. We know that, which is why for the Stereo ONE22 C:62 TM we began with a 130mm Fox 34 Float Rhythm fork at the front, and paired it with a Fox Float Performance at the rear. Smooth, progressive and easily adjustable, they’re the perfect trail companions.

Grippy Maxxis Forekaster 2.4in tyres rolling on Newmen Beskar 30 wheels are held in check by Shimano’s powerful XT hydraulic disc brakes. And Shimano’s peerless XT 1×12 gears get your power to the trail with flawless ratio changes, shift after shift after shift. Ready to ride?

Specification

Frame	C:62® Monocoque Advanced Twin Mold Technology, 2-Bolt ISCG05, Boost 148, UDH™
Fork	Fox 34 Float Rhythm, Sweep-Adjust GRIP Damper, Tapered, 15×110mm, 130mm
Rear Shock	Fox Float, 190×45mm, Open/Medium/Firm Mode
Shock Hardware	Top: 40×8mm, Bottom: 22.2×8mm
Headset	ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem	CUBE Stereo Stem w/ Cable Routing
Handlebar	CUBE Rise Trail Bar, 760mm
Brake System	Shimano XT BR-M8100, Hydr. Disc Brake (203/180)
Shifters	Shimano XT BR-M8100, Hydr. Disc Brake (203/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Bottom Bracket	Shimano BB-MT501, 68mm BSA
Crankset	Shimano XT FC-M8100, Boost, 30T
Chainring Size	30T
Cassette	Shimano SLX CS-M7100, 10-51T
Chain	Shimano CN-M6100
Wheelset	Newmen Beskar 30 light/base, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Tyres	Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
Saddle	ACID Nuance Lite
Seatpost	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Seatpost Clamp	CUBE Semi-Integrated
Quoted Weight	13.4 kg
Max System Weight	115 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Slack/Moderate	S	M	L	XL
Seat Tube	370	405	420	470
Top Tube Horizontal	566 / 567	594 / 596	622 / 624	653 / 655
Seat Angle	76.2° / 76°	76.2° / 76°	76.2° / 76°	76.2° / 76°
Head Tube Angle	65.4° / 66°	65.4° / 66°	65.4° / 66°	65.4° / 66°
Chainstays	431	431	431	431
Head Tube	90	100	110	130
Wheelbase	1161 / 1154	1190 / 1183	1219 / 1212	1253 / 1245
BB Height	41 / 40	41 / 40	41 / 40	41 / 40
Protrusion Height – 80Mm	729 / 733	739 / 743	737 / 741	770 / 774
Reach	427 / 426	452 / 451	477 / 476	502 / 501
Stack	603 / 605	612 / 614	621 / 623	639 / 641
Length Seat Post	403	460	510	510
Diameter Seatpost	30.9	30.9	30.9	30.9
Crank Length	170	170	170	170
Diameter Tire Maximum	758	758	758	758
Width Tire Maximum	64	64	64	64
Stem Length	40	40	50	50
Handlebar Width	760	760	760	760
Stroke Seatpost	120	150	170	170
Rear Suspension Travel	120	120	120	120

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 4
Intended Use	Sport and competition riding with very challenging technical demands of the trails
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 120 cm
Recommended riding skills	Technical skills, practice and bike control required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2

Additional Information

Manufacturer	Cube
RRP	No
