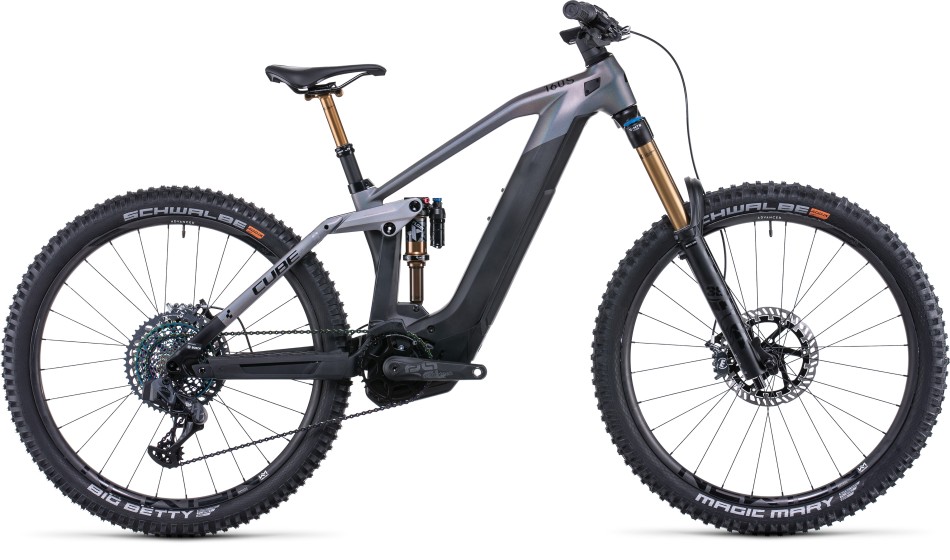

Cube Stereo Hybrid 160 HPC SLT 2022 Small Silver/Carbon eMTB

Looking for bigger frame sizes of this bike? Click here

Size isn’t everything – and this bike is proof. Packing everything we know about enduro hybrid bikes into a compact and powerful package, the Stereo Hybrid 160 HPC SLT 625 re-writes the rule book.

With up to 85Nm of torque from Bosch’s fourth-generation CX drive unit – backed up by a 625Wh battery – and Sram’s wireless AXS technology delivering precise, rapid shifts across the entire range of the 12-speed cassette, you’ve the power to make any trail seem flatter.

Newmen Advanced carbon wheels are shod with Schwalbe Magic Mary and Big Betty SuperTrail 2.4in tyres and brought to a halt by Magura’s four-piston, two-piece disc MT7 hydraulic brakes. And the Fox Transfer dropper post, Fox 38 Float Factory fork and Float X Factory shock will take on any trail challenge. It’s ready. Are you?

Specification

Frame	C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing
Fork	Fox 38 Float Factory FIT GRIP2, Tapered, 15×110mm, E-Bike Tune, 170mm, Kashima Coated
Shock	Fox Float X Factory, 205×60mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 22.2×8mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery	Bosch PowerTube 625 (battery weight 3.6kg)
Display	Bosch Kiox
Charger	Bosch 4A (2.1h 50% – 4.9h 100%)
Brake System	Magura MT7, Hydr. Disc Brake (203/203)
Rear Derailleur	Sram XX1 Eagle AXS™, 12-Speed
Shifters	Sram Eagle AXS™ Controller
Crankset	e*thirteen Plus Crank, 165mm, 36T
Chain Guide	e*thirteen Plus e*spec
Cassette	Sram XG-1299 Eagle™ Rainbow, 10-52T
Chain	Sram PC-XX1 Eagle™ Rainbow
Wheelset	Newmen Advanced SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tire	Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear Tire	Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4
Stem	CUBE Performance Stem E-MTB, 31.8mm
Handlebar	Newmen Advanced 318.25, Carbon, 780mm
Grips	ACID Disrupt, Soft Compound
Seat Post	Fox Transfer Factory 31.6mm, Kashima Coated (S: 100mm)
Seatclamp	CUBE Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Venec
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Max System Weight	135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Quoted Weight	23.60kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	158cm (5’3”)	168cm (5’6”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S
Stack	598
Reach	420
Standover Height	772
BB-Height To Hub	-12.5
Wheelbase	1183
Head Tube	105
Chain Stays	441.5
Head Tube Angle	65
Seat Tube Angle	75.5
Top Tube Horizontal	568
Seat Tube	375

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
