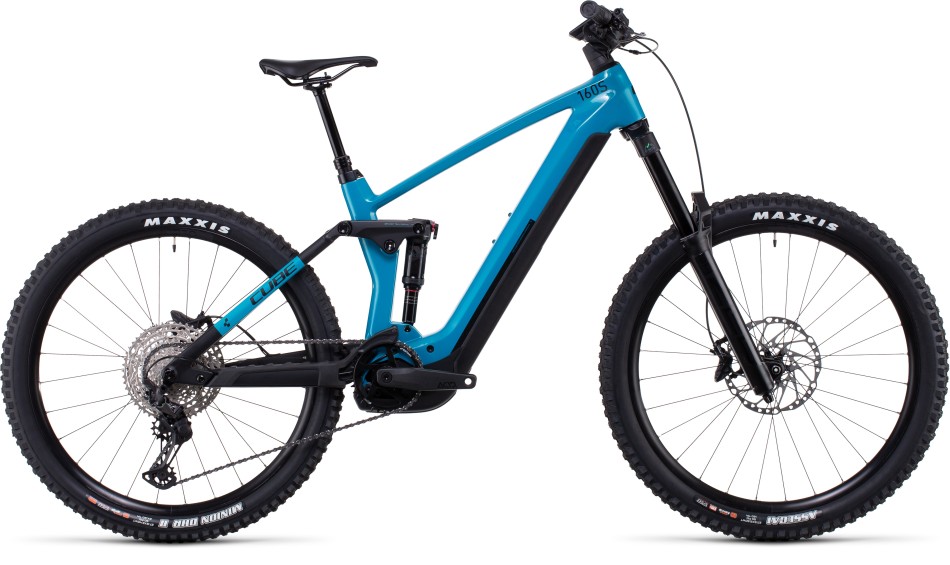

Cube Stereo Hybrid 160 HPC SL 2022 Aqua/Black eMTB

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

This is the e-mtb that re-writes the rules. Powered by Bosch’s fourth-generation CX drive system and a high-capacity 750Wh battery for more range than ever, our Stereo Hybrid 160 HPC SL 750’s blend of gravity prowess and all-round trail ability sets it apart. The RockShox Zeb Select fork’s bump-swallowing ability works with the Deluxe Select+ rear shock and carefully tuned kinematics to tame any trail.

Shimano’s legendary XT 1×12 transmission gives you the range you need to tackle any climb. And powerful, progressive Shimano hydraulic disc brakes – with oversize rotors front and rear – combined with a remote dropper post put you in full control. It’s time to get your enduro on.

Specification

Frame	C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Fork	RockShox ZEB Select Charger RC, 15×110mm, Tapered, eMTB Approved, 170mm
Shock	RockShox Deluxe Select+, 205×65mm, Rebound Adjust, Trunnion Mount, Lockout
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 22.2×8mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery	Bosch PowerTube 750Wh (battery weight 4.4kg)
Display	Bosch Kiox 300
Charger	Bosch 4A (2.1h 50% – 6h 100%)
Brake System	Shimano Deore BR-M6120, Hydr. Disc Brake (203/203)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters	Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Crankset	ACID E-Crank, 165mm, 36T
Chain GUIDE	Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Wheelset	Newmen Performance 30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tire	Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Rear Tire	Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
Stem	CUBE Performance Stem E-MTB, 31.8mm
Handlebar	Newmen Evolution SL 318.25, 780mm
Grips	ACID Disrupt, Soft Compound
Seat Post	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Seatclamp	CUBE Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Venec
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Max System Weight	135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Quoted Weight	24.60kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Medium	168cm (5’6”)	175cm (5’9”)
Large	175cm (5’9”)	185cm (6’1”)
X Large	185cm (6’1”)	193cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	M	L	XL
Seat Tube	420	460	490
Top Tube Horizontal	600	630	660
Seat Tube Angle	76	76	76
Head Tube Angle	65	65	65
Chainstays	441.5	441.5	441.5
Head tube	120	132	150
Wheelbase	1224.7	1256.2	1288.5
BB-Height To Hub	12.5	12.5	12.5
Standover Height	769.9	769.3	792.6
Reach	453.4	479.8	504.5
Stack	616.1	626.9	643.3
Crank Length	165	165	165
Max Tyre width	67	67	67

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
